Axis Wake Dash Software Updates: Current Software Versions by Model Year

Updated September 16, 2026

If you own an Axis Wake Research boat, there is an important maintenance item you may not know about: your Axis dash software can be updated.

Many Axis owners never think about software after taking delivery of their boat. However, Axis has released software updates over the years that can include continuous improvements, minor corrections, bug fixes, and other changes designed to improve how the dash and onboard systems operate. Axis's own service documentation describes software releases as providing "continuous improvements and minor corrections."

If your Axis has never had its software checked or updated, there's a chance it may be running an older version.

Why Are Axis Dash Software Updates Important?

Modern Axis boats rely heavily on electronic systems. Depending on your model year and configuration, the dash provides access to boat settings, system information and various onboard functions.

As Axis identifies software issues or develops improvements, updated software can be released for affected systems.

In fact, Axis has supported field software updates since at least the 2017 model year. An Axis service advisory for 2017 boats equipped with the 7-inch video screen explained that the operating system could be updated as new versions became available.

This is particularly important when troubleshooting unusual dash or electronic behavior.

An update isn't a guaranteed fix for every problem—a failed sensor, wiring issue, module or other component can still require diagnosis and repair. But checking that the boat is running the correct software version can be an important step in the diagnostic process.

Current Axis Wake Dash Software Versions

Here are the current Axis dash software versions by model year as of September 16, 2026, according to Bakes' current Axis software reference:

These versions are current according to Bakes' reference dated September 16, 2026.

Important: Axis may release additional software updates in the future. Always have an authorized Axis Wake dealer verify the correct and most current software for your specific boat before performing an update.

How Do I Check the Software Version on My Axis?

The process for viewing the installed software version varies depending on the model year and dash generation.

For earlier systems, such as the 2017 Axis InfoCenter, you can access the Settings menu to view and verify the software version.

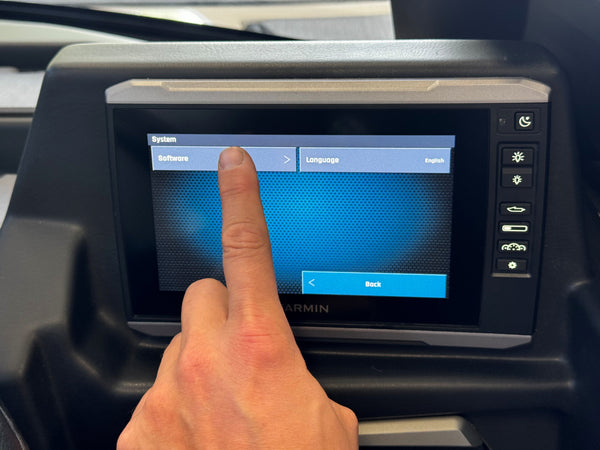

Newer Axis systems use a different interface. Axis's 2024 instructions direct users to the Systems screen and then Software, where the installed software version can be verified.

Compare the version displayed on your boat with the table above. If your version is older—or you're unsure what you're looking at—contact an authorized Axis dealer to have it checked.

Can I Update My Axis Dash Software Myself?

Bakes recommends having Axis software updates performed by an authorized Axis Wake dealer.

While Axis systems may use a USB service connection to perform the actual installation, the correct software needs to be used for the particular system and model year. This is different from simply downloading a consumer software update from a public website.

Earlier Axis instructions also warn that an update procedure can return the system to its default settings, requiring presets and preference settings to be re-entered.

For these reasons, do not download software files from unofficial sources or attempt to install software intended for a different model year or dash system.

Having Axis Dash Problems? Check the Software Before Replacing Parts

If your Axis is experiencing unusual dash or system behavior, software version should be one of the items checked during diagnosis.

Symptoms involving the dash, stereo or electronic systems don't automatically mean that the screen, module, sensor or another expensive component needs to be replaced.

A proper diagnostic process should determine:

Is the boat running the correct and current software for its model year and system?

If it isn't, bringing the software up to date may eliminate known software-related issues and ensures further troubleshooting is being performed with the boat running the appropriate software.

Software will not correct a failed component or physical electrical problem, but it can help eliminate outdated software as a potential factor.

Axis Software Updates at Bakes NW Inboards

If you're located in Washington State and aren't sure whether your Axis is running the latest dash software, Bakes NW Inboards can check your installed software version and determine whether an update is available for your boat.

Our service department specializes in gasoline-powered inboard watersports boats, including Axis and Malibu, and has access to the appropriate factory service information and diagnostic resources.

When contacting us about an Axis software update, it is helpful to provide:

• Axis model and model year
• Hull Identification Number (HIN)
• Current software version, if known
• Photo of the software-version screen, if possible
• Description of any dash or system problems you're experiencing

Not sure where to find your software version? That's okay. Our service department can check it for you.

Axis Dash Software Update FAQ

What is the latest Axis Wake software version?

There isn't one software version that applies to every Axis boat. The correct software version depends on the model year and dash system.

For example, as of September 16, 2026, a 2017 Axis lists Version 1.28, while a 2026 Axis lists 23.65 and a 2027 Axis lists 23.69.

Use the model-year chart above as a reference and have an authorized Axis dealer confirm the appropriate software for your boat.

How do I know if my Axis needs a software update?

Check the software version displayed by your Axis dash and compare it with the current version listed above for your model year.

If the versions don't match—or you aren't sure which version applies to your boat—have an authorized Axis dealer verify it.

How do I check my Axis dash software version?

The location varies by dash generation. Earlier Axis InfoCenter systems use the Settings area, while the 2024 Axis instructions direct technicians through Systems → Software to verify the installed software.

Can I update Axis software myself?

Bakes recommends having software updates performed by an authorized Axis Wake dealer. Axis's newer instructions direct dealers to obtain the appropriate files through dealer resources and install them through the service USB connection.

This helps ensure the correct software is installed for your specific boat and system.

Can outdated software cause problems with my Axis dash?

Axis dealer service bulletins confirm that software updates can contain continuous improvements and minor corrections.

Therefore, verifying software version is worthwhile when diagnosing a dash or system problem. However, the supplied Axis documents do not provide a comprehensive list of symptoms caused by outdated software, so I would avoid claiming that a specific problem is software-related without proper diagnosis.

Will an Axis software update erase my settings?

It can depend on the dash generation and update procedure. Axis's earlier update instructions specifically state that following the required power cycle, the system would return to default settings and previous adjustments would need to be re-entered.

Another good reason to have the update handled by an experienced Axis dealer.

Are software updates covered under Axis warranty?

Contact your local dealership with your hull identification number (HIN), and they can confirm if a software update is covered under warranty or not. If the boat's warranty has expired, then the update will not be covered under warranty. Generally, updates take around 15 to 30 minutes to perform.
