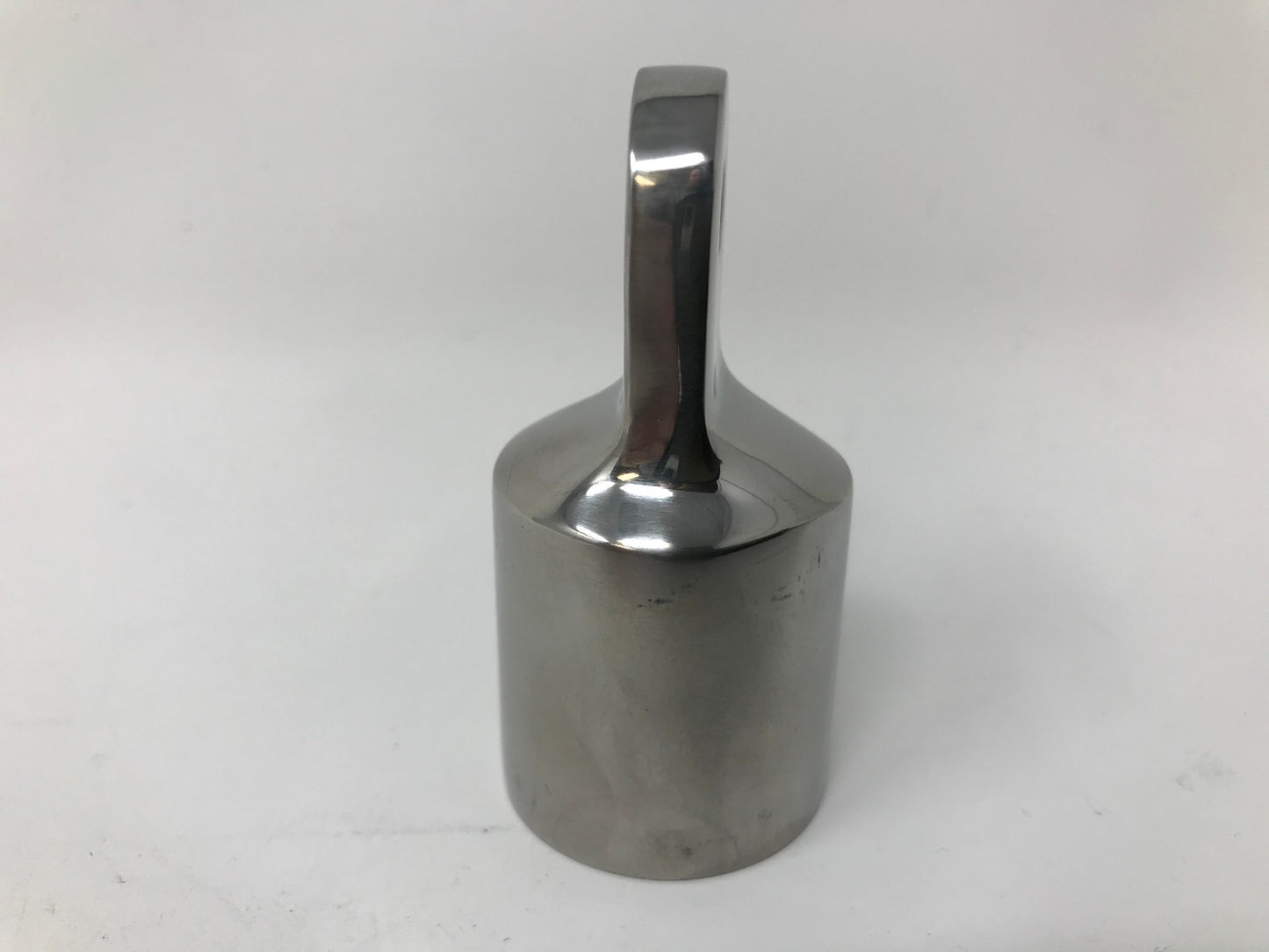

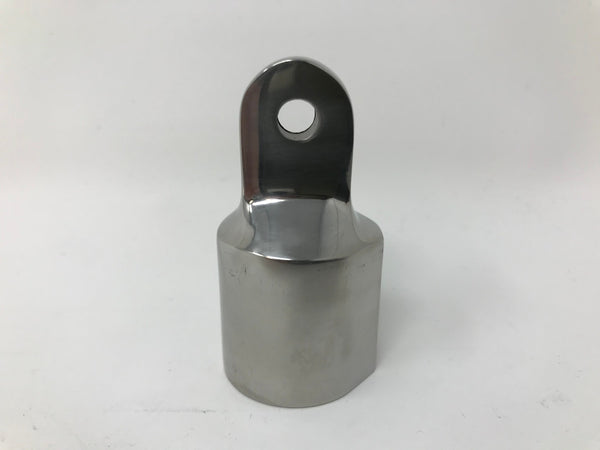

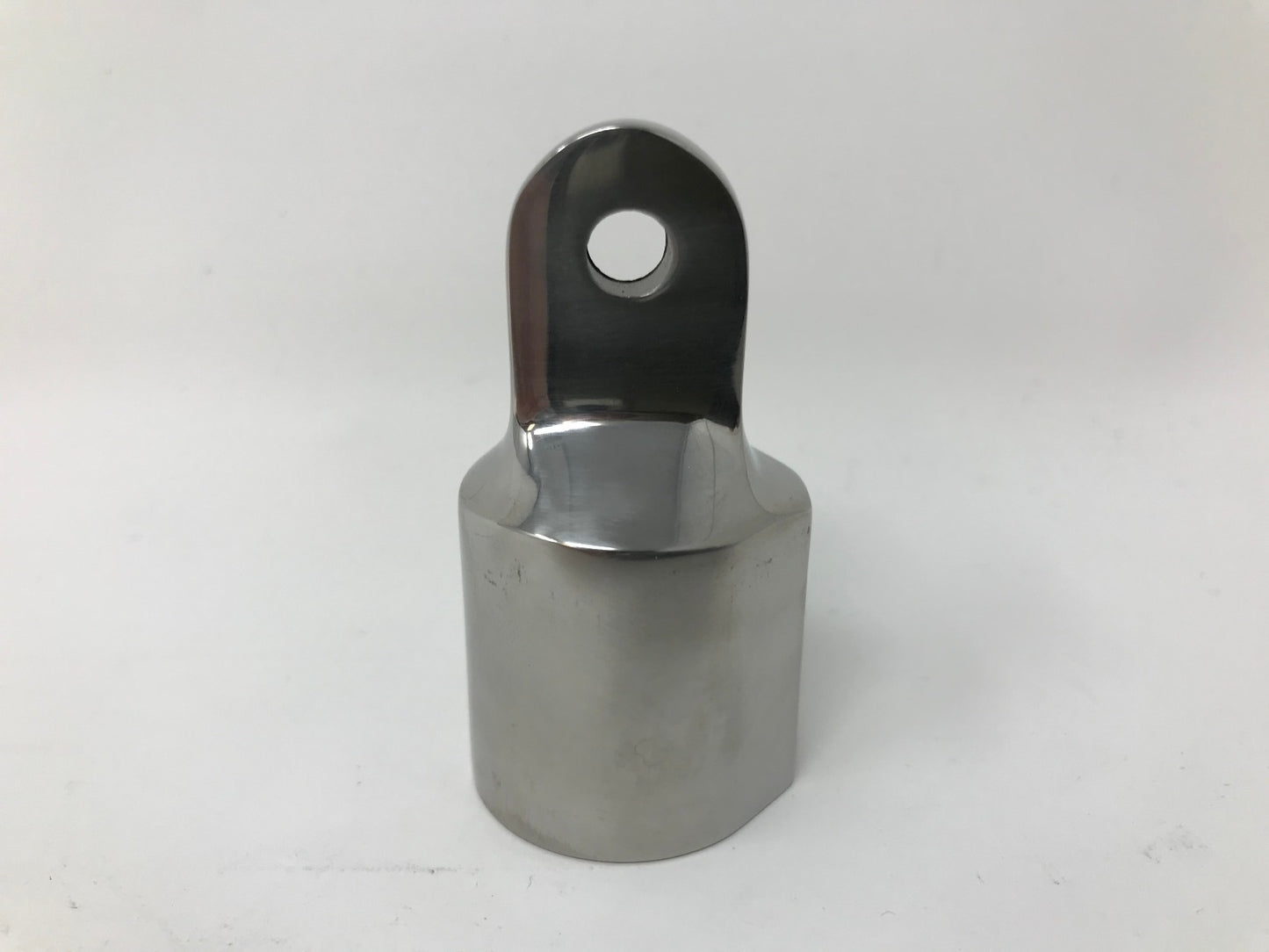

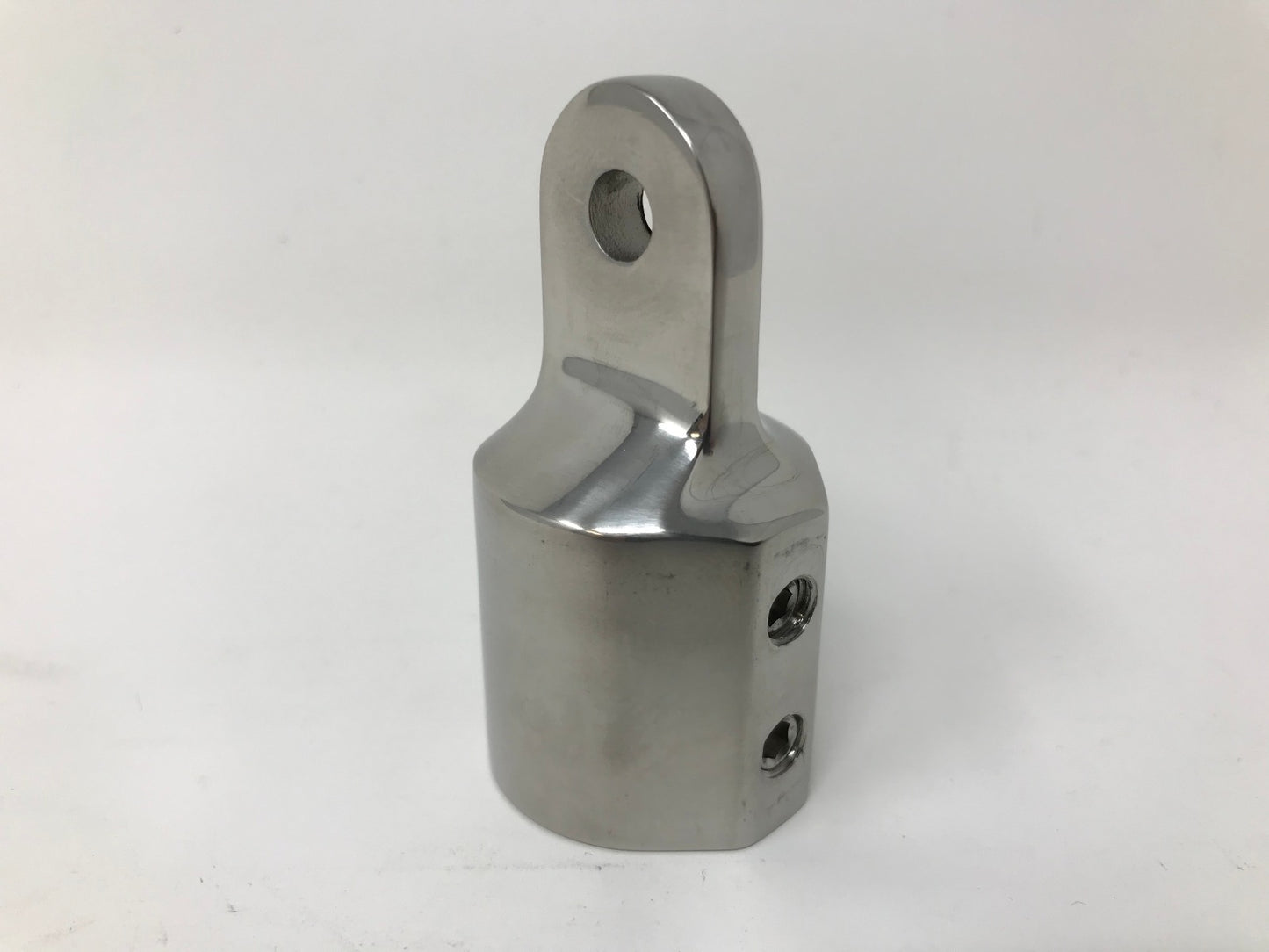

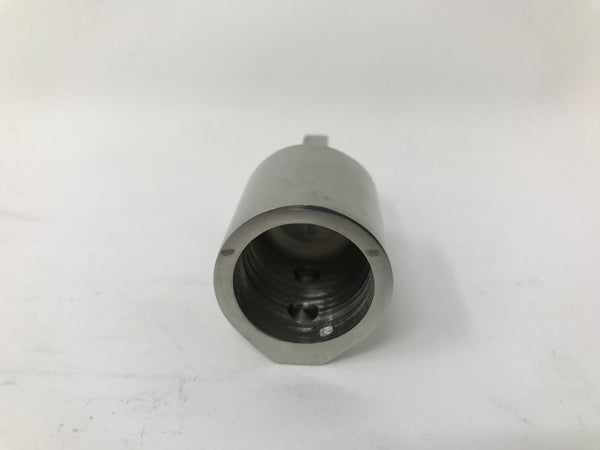

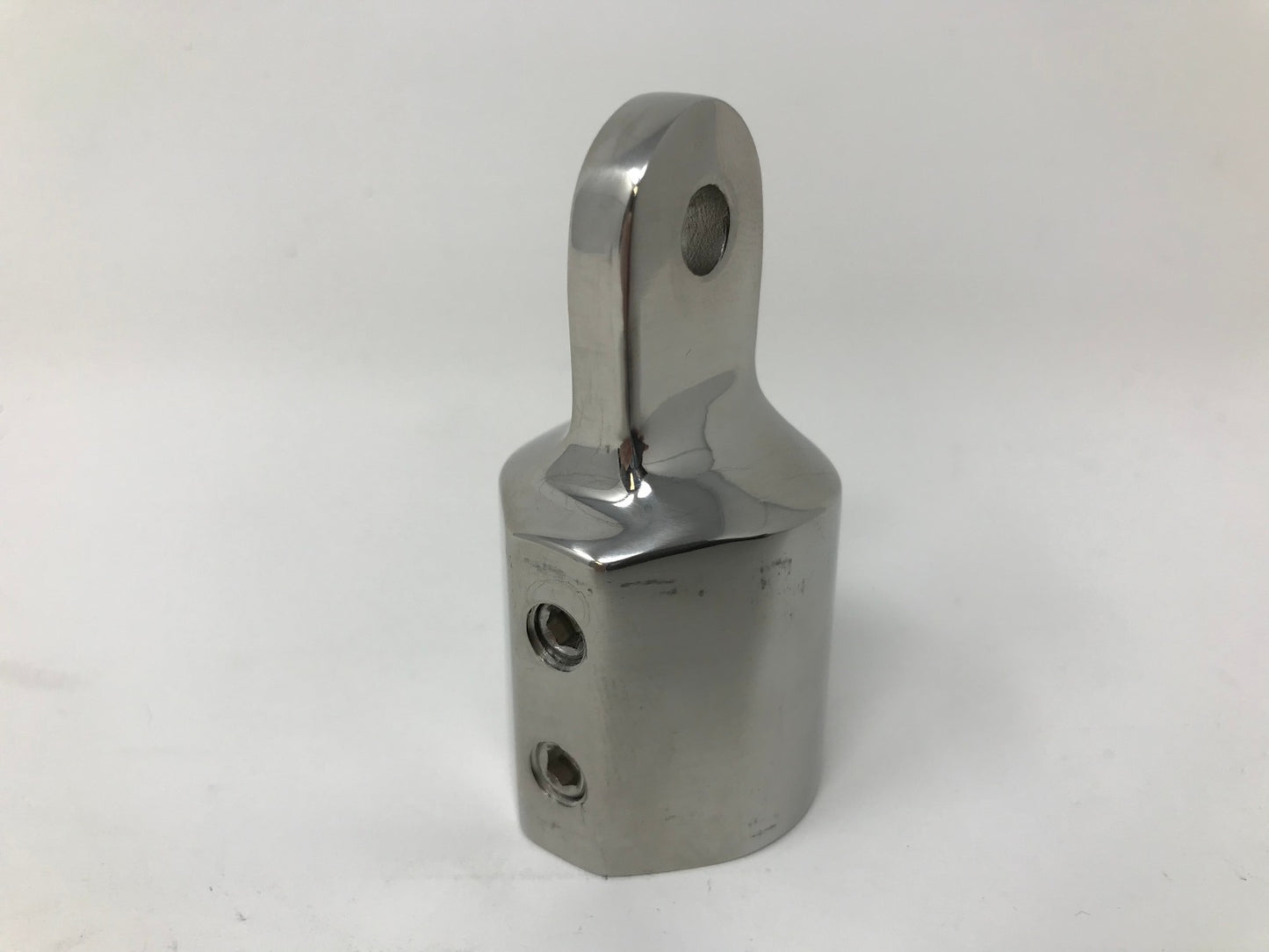

Bimini Top Stainless Steel Eye End

316 Stainless Steel Bimini Top Eye End – 7/8" Tubing (Crimp-Style Replacement)

This solid polished 316 stainless steel Bimini top eye end is designed as a replacement for Metcraft Bimini tops where the original ends were crimped onto the tubing. It’s an ideal solution when factory crimp fittings fail or need to be upgraded to a more secure set-screw style connection.

Made from marine-grade 316 stainless steel, this eye end offers superior corrosion resistance and long-term durability in harsh marine environments. The double set screw design provides a tight, reliable hold on the tubing, making it well-suited for repairs and retrofits.

Product Specifications:

• Material: Polished 316 Stainless Steel
• Fits: 7/8" inch Bimini tubing
• Set Screws: Double set screw
• Overall Length: 2-3/8 inches
• Overall Diameter: 1-1/8 inches
• Eye End Thickness: 1/4 inch
• Eye Bolt Hole Diameter: 1/4 inch

Installation Note:
Use Loctite on all Bimini hardware during installation to ensure a secure, vibration-resistant fit.

Perfect for boat owners, marine canvas shops, and repair professionals looking for a dependable Bimini top eye end replacement for crimp-style Metcraft fittings.
