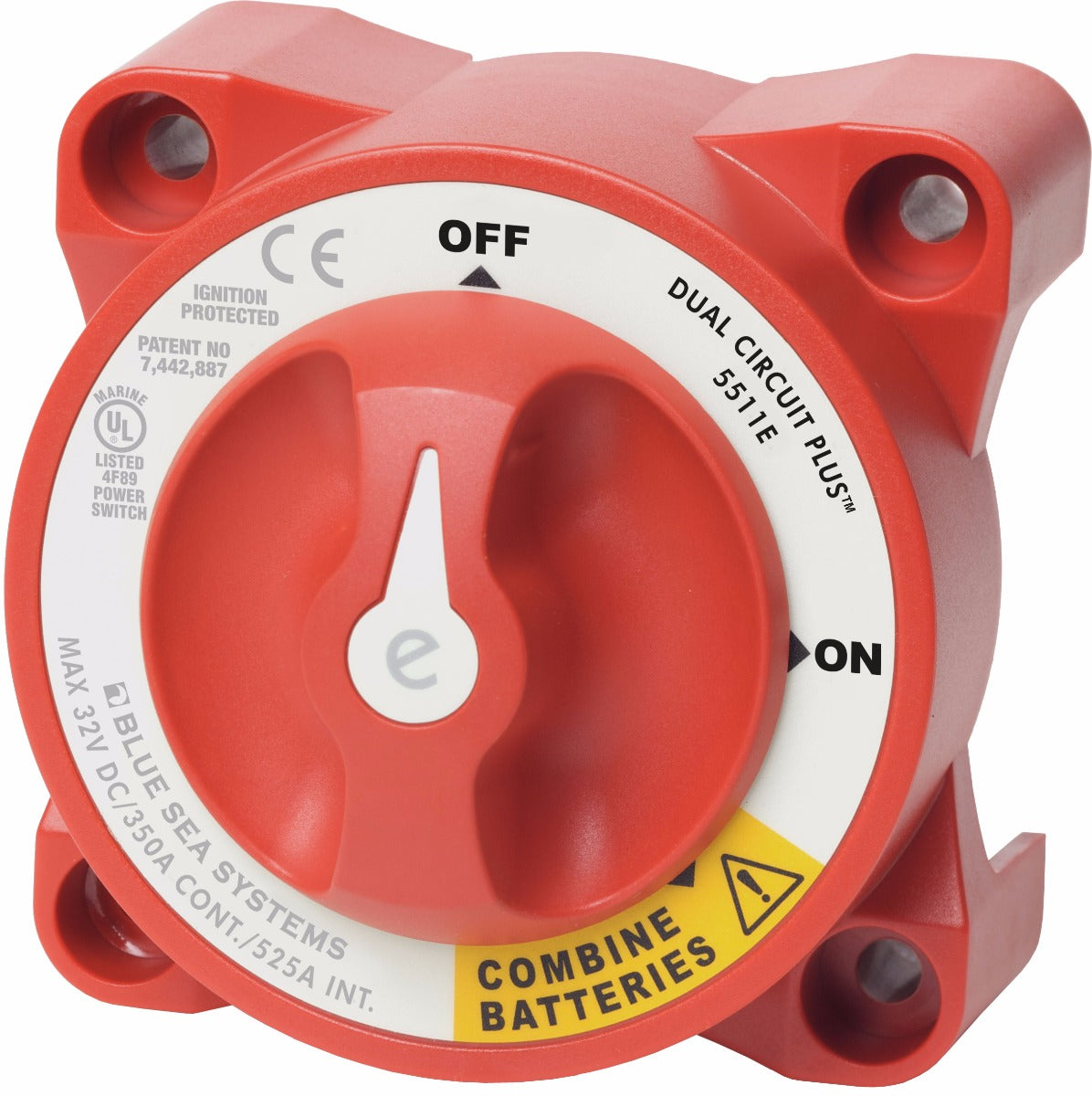

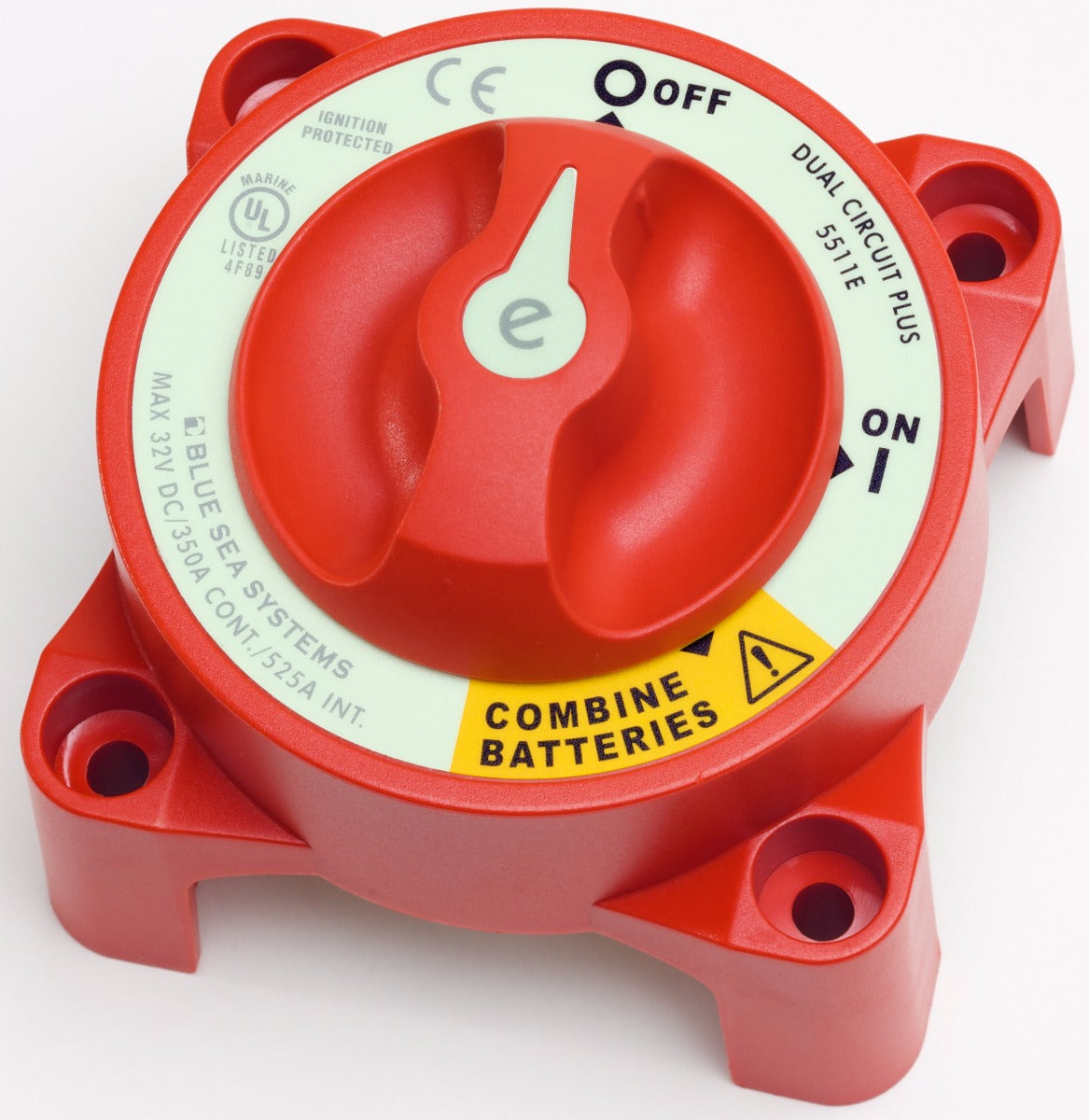

Blue Sea 5511E E-Series Dual Circuit Plus Battery Switch
Sku:
632085551155
Low stock
- Regular price
- $71.99
- Regular price
-
- Sale price
- $71.99
- Unit price
- per
Shipping calculated at checkout.
Description
Description
Isolates Start and House circuits, and combines both battery banks for emergency starting. Malibu Boats use this switch for their dual battery system with Automatic charging relay.
Product Specs:
- For switching battery banks in applications requiring high power output, reliability, and low heat generation
- Simultaneously switches two isolated battery banks or combines battery banks to all load
- Make-before-break contact design allows switching without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats

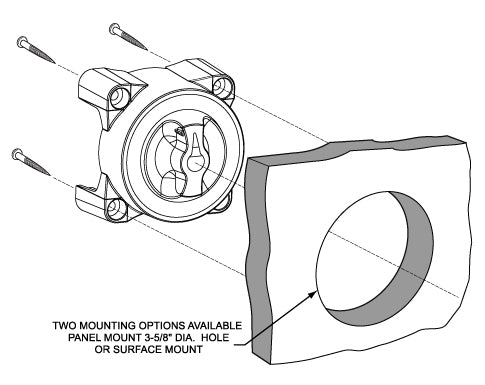

- Case design allows surface or rear panel mounting

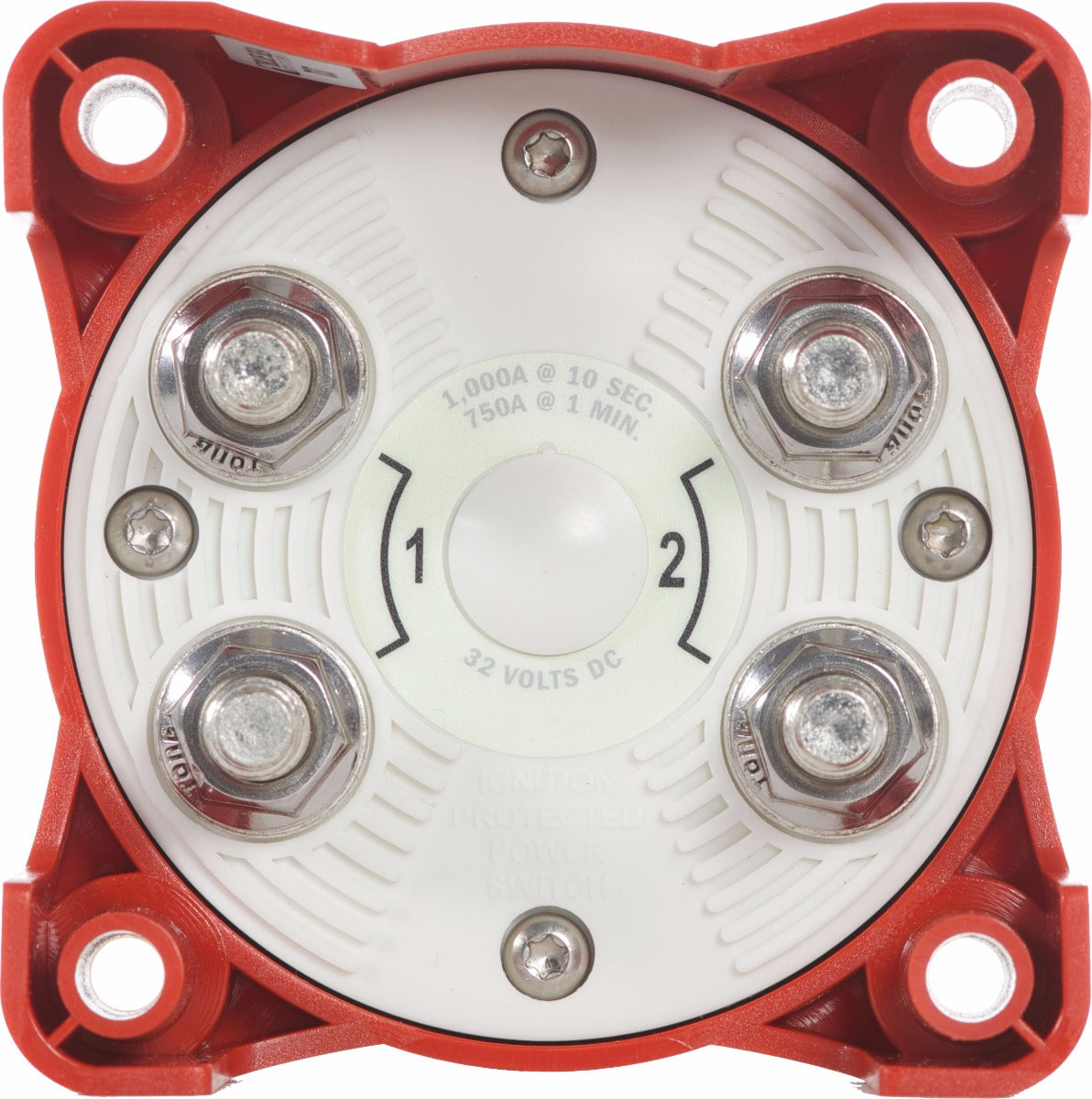

- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Instructions & Details
Reviews
Reviews
More Information
More Information
GTIN
632085551155
Manufacturer
Blue Sea Systems
Manufacture part number
5511E
Weight
1.0
Country of Manufacture
United States
