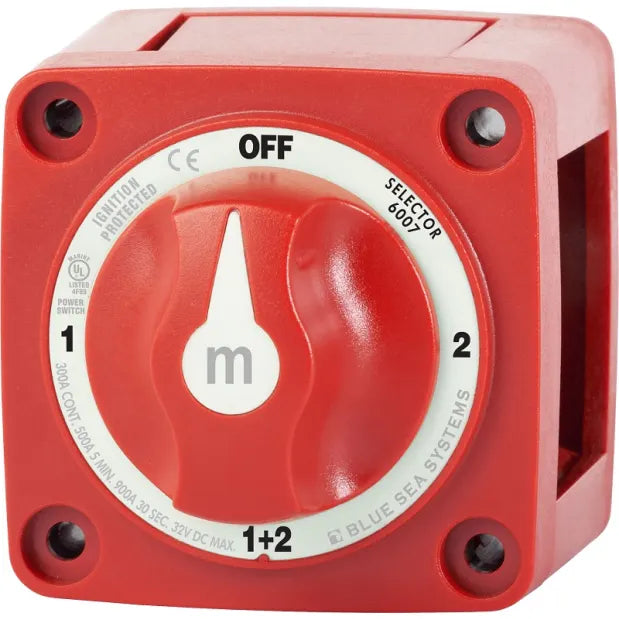

Blue Sea Systems m-Series 4-Position Marine Battery Selector Switch – 300A – 6007

Manage your boat's dual-battery electrical system with the Blue Sea Systems m-Series 4-Position Battery Selector Switch (MFG #6007). Featuring a 300-amp continuous current rating, this marine battery switch provides convenient manual control over two battery banks with four selectable positions: OFF, Battery 1, Battery 2, and BOTH.

Designed for outboard-powered boats and smaller gasoline or diesel engine applications, the Blue Sea Systems 6007 Battery Switch combines corrosion-resistant construction, IP66 water resistance, and flexible mounting options in a compact, durable design.

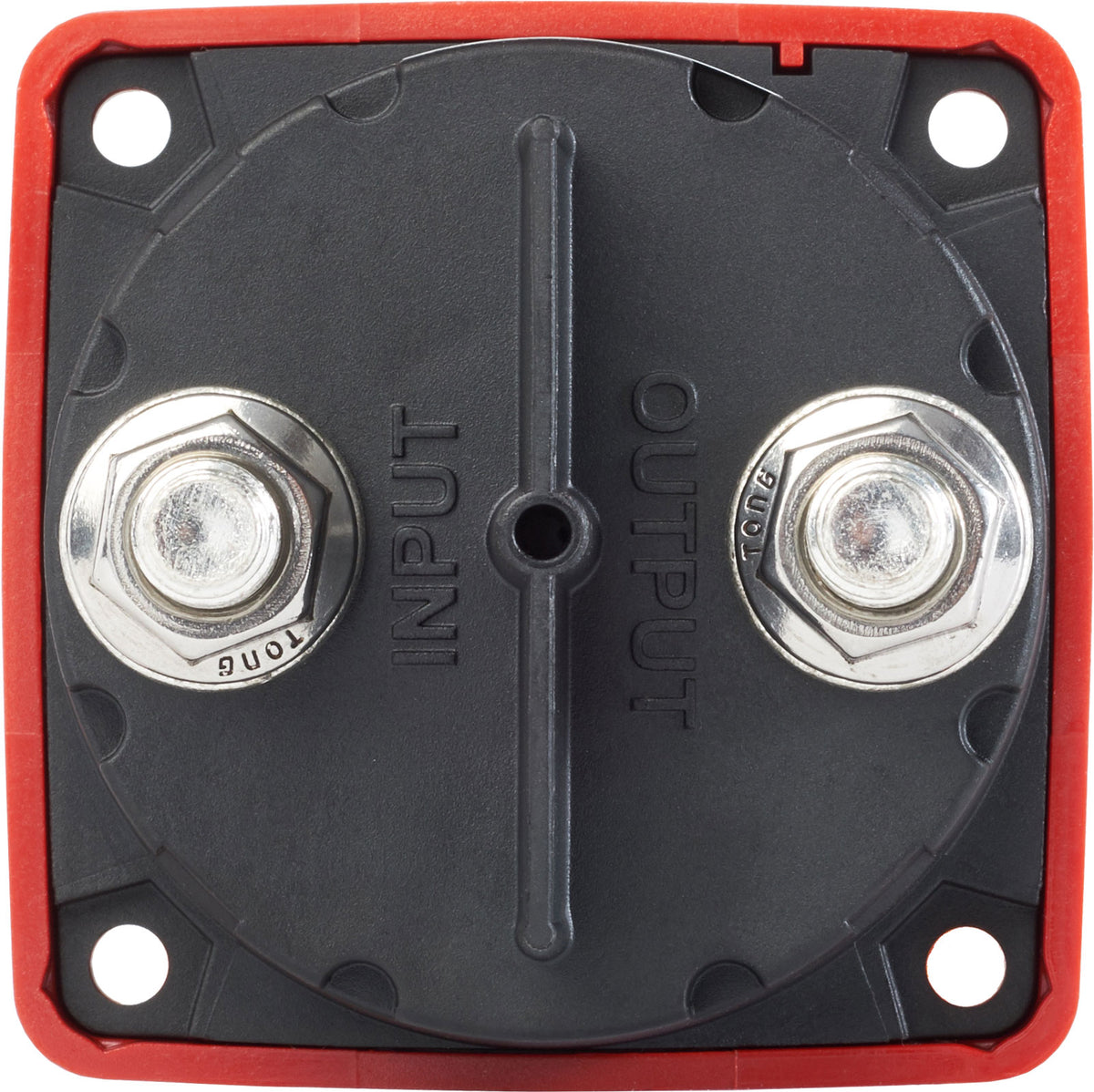

Its tin-plated copper terminal studs provide reliable conductivity, while the one-piece stud construction helps maintain secure electrical connections over time. The protective terminal cover and multiple cable-routing options make installation convenient in a variety of marine electrical compartments.

Key Features & Benefits

• 4-Position Battery Selection: OFF, Battery 1, Battery 2, and BOTH.
• 300 Amp Continuous Rating: Designed for compatible marine starting and auxiliary electrical systems.
• Dual-Battery Control: Manually selects or combines two connected battery banks.
• Tin-Plated Copper Studs: Provide excellent conductivity and corrosion resistance.
• 3/8" (M10) Terminal Studs: Accept compatible marine battery cable ring terminals.
• 7/8" (22 mm) Stud Length: Accommodates multiple cable terminals.
• One-Piece Terminal Stud Design: Helps prevent studs from loosening over time.
• IP66 Water Resistance: Protects against dust and powerful water jets.

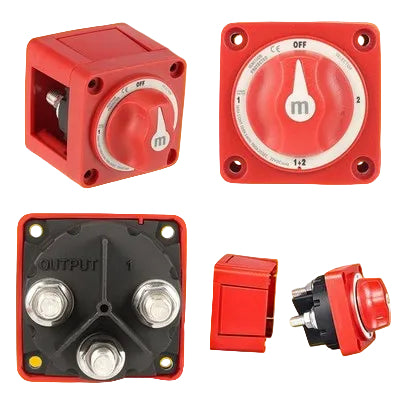

• Protective Terminal Cover: Three snap-in side pieces provide flexible cable access and rear-contact protection.
• Multiple Mounting Options: Supports surface, rear, and front-panel mounting.
• Compact m-Series Design: Suitable for space-conscious marine installations.

Ideal Applications

The Blue Sea Systems 6007 Battery Selector Switch is ideal for properly designed marine electrical systems requiring manual control over two batteries.

Common applications include:

• Outboard-powered boats
• Small gasoline and diesel engine boats
• Dual-battery marine electrical systems
• Fishing boats and recreational powerboats
• Starting and auxiliary battery selection
• Marine battery isolation during maintenance
• Battery management during seasonal storage

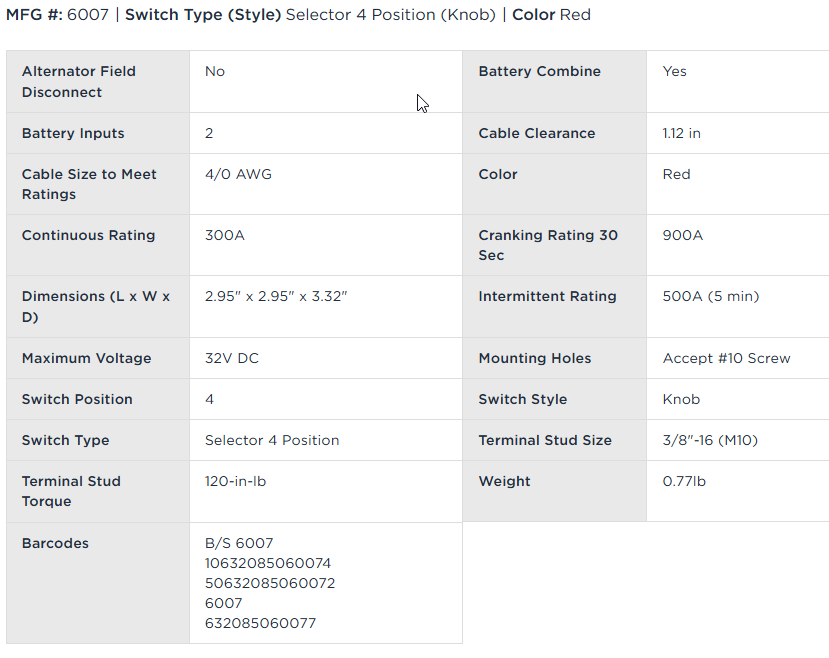

Product Specifications

• Brand: Blue Sea Systems
• Series: m-Series
• Manufacturer Part Number (MFG #): 6007
• Product Type: Marine Battery Selector Switch
• Switch Color: Red
• Switch Positions: OFF / 1 / 2 / BOTH
• Continuous Current Rating: 300 Amps
• Intermittent Current Rating: 500 Amps (5 minutes)
• Starting Current Rating: 900 Amps (30 seconds)
• Maximum Voltage: 32V DC
• Number of Battery Inputs: 2
• Terminal Material: Tin-Plated Copper
• Terminal Stud Size: 3/8" (M10)
• Terminal Stud Length: 7/8" (22 mm)
• Terminal Stud Torque: 120 in-lb
• Water-Resistance Rating: IP66
• Mounting Options: Surface, Rear, or Front Panel
• Terminal Protection: Isolating Cover with Three Snap-In Side Pieces
• Quantity Included: 1 Battery Switch

Four Battery Switch Positions Explained

The Blue Sea Systems 6007 provides four manual battery selection positions:

OFF: Disconnects the switched electrical circuit from both connected batteries.

Battery 1: Connects the switched circuit to Battery 1.

Battery 2: Connects the switched circuit to Battery 2.

BOTH: Connects both battery banks to the switched circuit, electrically combining them while this position is selected.

The BOTH position should only be used when appropriate for your battery configuration and electrical system.

Corrosion-Resistant Marine Construction

The Blue Sea Systems m-Series Battery Switch (6007) features tin-plated copper terminal studs designed for excellent electrical conductivity and resistance to corrosion.

Its one-piece terminal stud design helps prevent loosening, while the protective rear cover helps shield electrical contacts from accidental contact.

IP66 Water-Resistant Design

With an IP66 rating, the Blue Sea Systems 6007 is designed to withstand dust exposure and powerful water jets under specified test conditions.

This protection makes it suitable for appropriate marine installations where moisture and spray are common. IP66 does not mean the switch is designed for continuous submersion.

Flexible Installation & Mounting

The m-Series 6007 supports three mounting configurations:

• Surface mounting
• Rear mounting
• Front-panel mounting

The protective terminal cover includes three snap-in side pieces to accommodate cable routing from different directions.

Always follow Blue Sea Systems installation instructions and use appropriately rated marine cables, terminals, and circuit protection.

Frequently Asked Questions

What is the Blue Sea Systems 6007 used for?

It is a four-position marine battery selector switch used to manually select Battery 1, Battery 2, both batteries, or OFF in a compatible dual-battery system.

What are the four battery switch positions?

OFF, Battery 1, Battery 2, and BOTH.

What is the amperage rating of the Blue Sea 6007?

It is rated for 300 amps continuous, 500 amps intermittent for five minutes, and 900 amps starting current for 30 seconds.

Can the Blue Sea 6007 be used with two marine batteries?

Yes. It is designed for compatible two-battery selector applications when properly installed.

Is the Blue Sea Systems 6007 waterproof?

It has an IP66 water-resistance rating, providing protection against powerful water jets. It is not intended for continuous submersion.

Does this switch charge batteries?

No. It controls battery connections and does not function as a battery charger.

Can I turn the switch to OFF while the engine is running?

Do not turn the switch to OFF while the engine is running unless your system is specifically designed to permit it. Disconnecting a running engine's charging circuit may damage electrical components.

What size ring terminals fit this switch?

The switch accepts compatible 3/8" (M10) ring terminals.

What is the manufacturer part number?

The manufacturer part number is 6007.

What's Included

• (1) Blue Sea Systems m-Series 4-Position Battery Selector Switch – MFG #6007
• Protective terminal cover with snap-in side pieces
