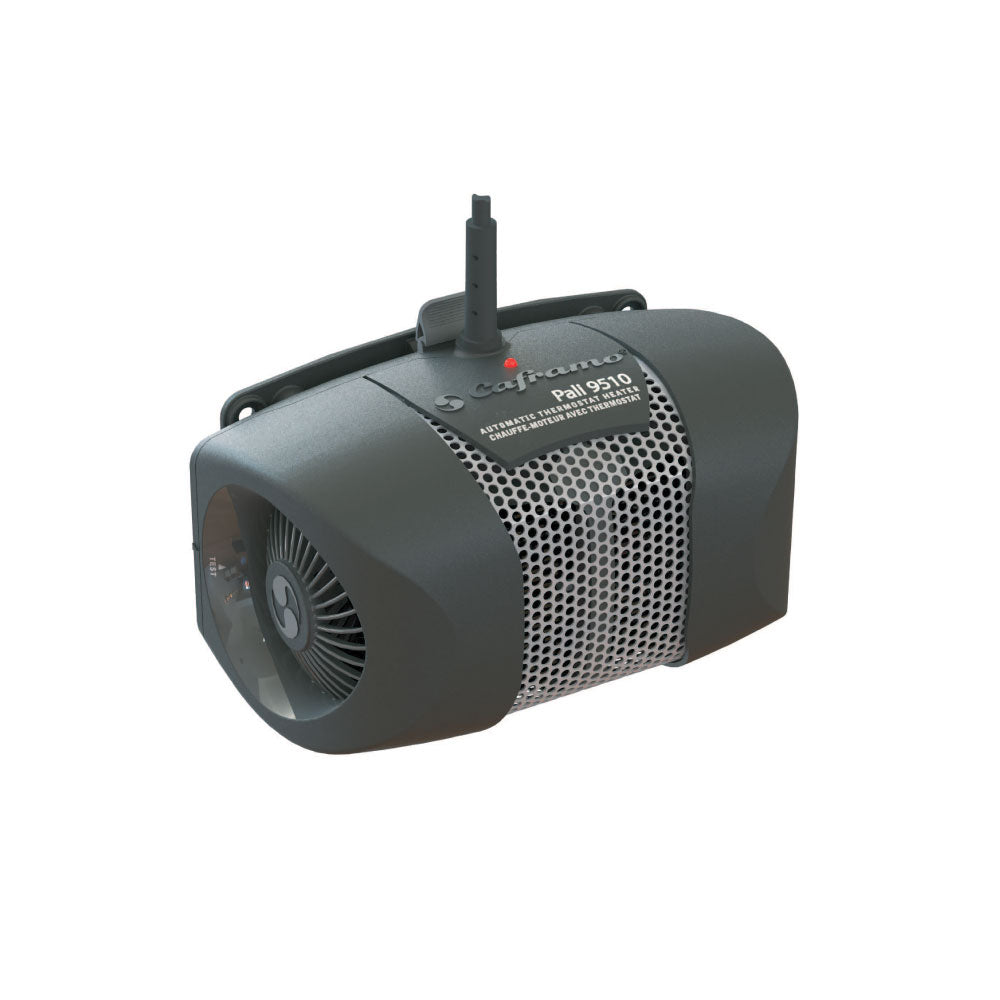

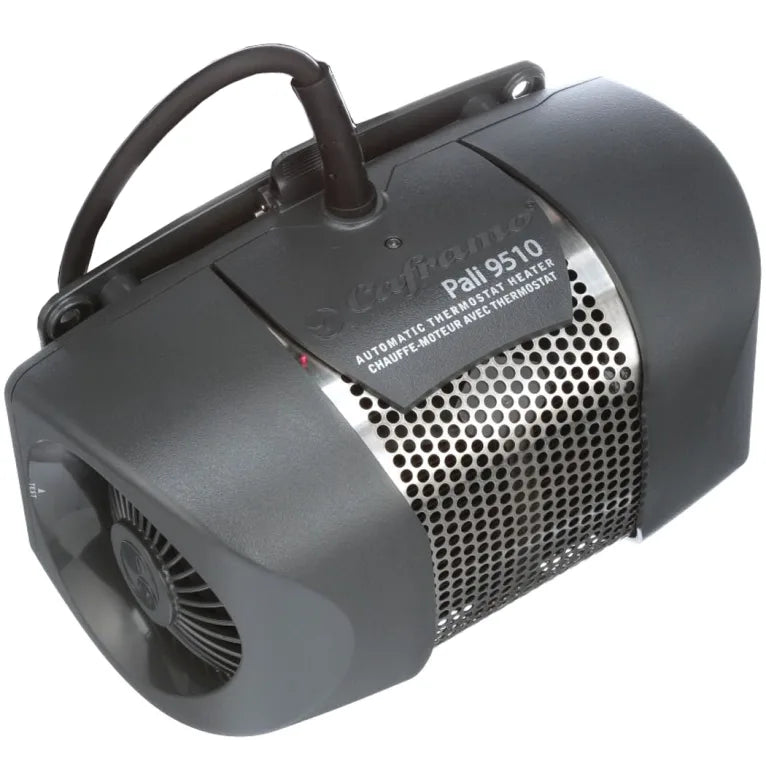

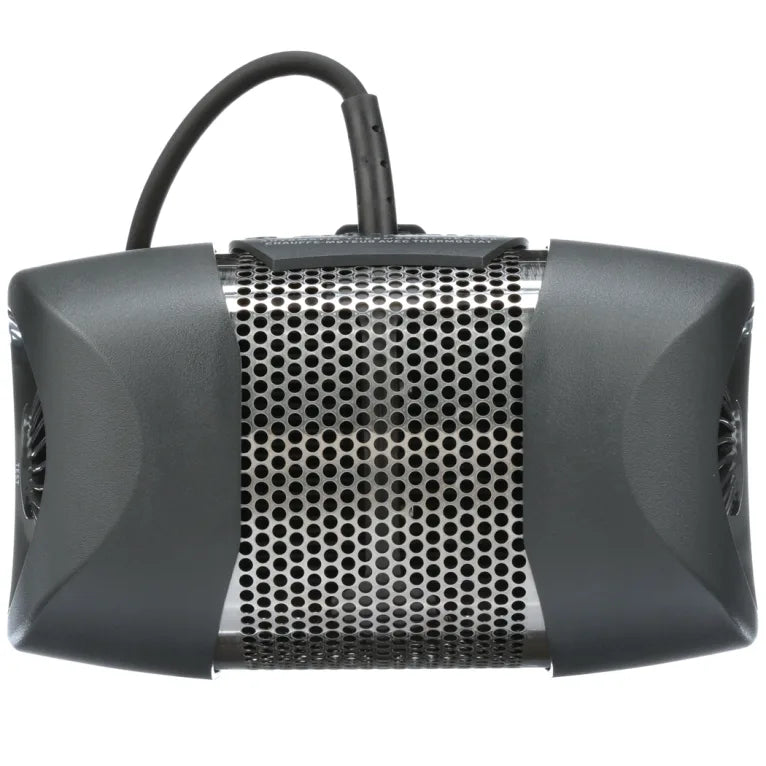

Caframo Pali BilgeSafe 400W Marine Engine Compartment Heater – 9510CA-BBX

Protect your boat's engine from freezing temperatures with the Caframo Pali BilgeSafe 400W Heater. Designed for marine bilge and engine compartments, this thermostatically controlled heater helps prevent costly freeze damage while allowing boat owners to extend their boating season into cooler months.

Featuring energy-efficient ceramic stone heating elements, the Pali BilgeSafe Heater uses self-limiting heating technology to help maintain safe operating temperatures. Its ignition-protected design makes it suitable for approved marine engine compartment installations when used according to manufacturer instructions.

The heater features dual circulation fans that distribute warm air throughout the engine compartment, helping provide consistent heating during cold weather. A moisture-protected, sealed thermostat automatically activates the heater at approximately 41°F and turns it off at approximately 59°F.

Designed to protect engine compartments up to 80 cubic feet in temperatures as low as -4°F, the Caframo Pali offers a convenient supplemental freeze protection solution for compatible boats.

In addition to helping protect engine components, the heater can reduce cold-weather condensation and help maintain warmer conditions around batteries and other equipment stored in the engine compartment.

Key Features & Benefits

• 400W Marine Engine Compartment Heater: Helps protect boat engines and equipment against freezing temperatures.
• Automatic Thermostat Control: Activates at approximately 41°F and shuts off at approximately 59°F.
• Ceramic Stone Heating Elements: Energy-efficient, self-limiting heating technology.
• Dual Circulation Fans: Distribute warm air throughout the engine compartment for more even heating.
• Ignition-Protected Design: Designed for approved marine engine compartment applications.
• Protects Up to 80 Cubic Feet: Manufacturer-rated protection for qualifying compartments at temperatures down to -4°F.
• Helps Reduce Condensation: Warms compartment air to help lower relative humidity and combat moisture buildup.
• Battery Temperature Protection: Helps reduce exposure to cold conditions that can affect battery performance.
• 120V AC Operation: Connects to a suitable AC electrical supply.

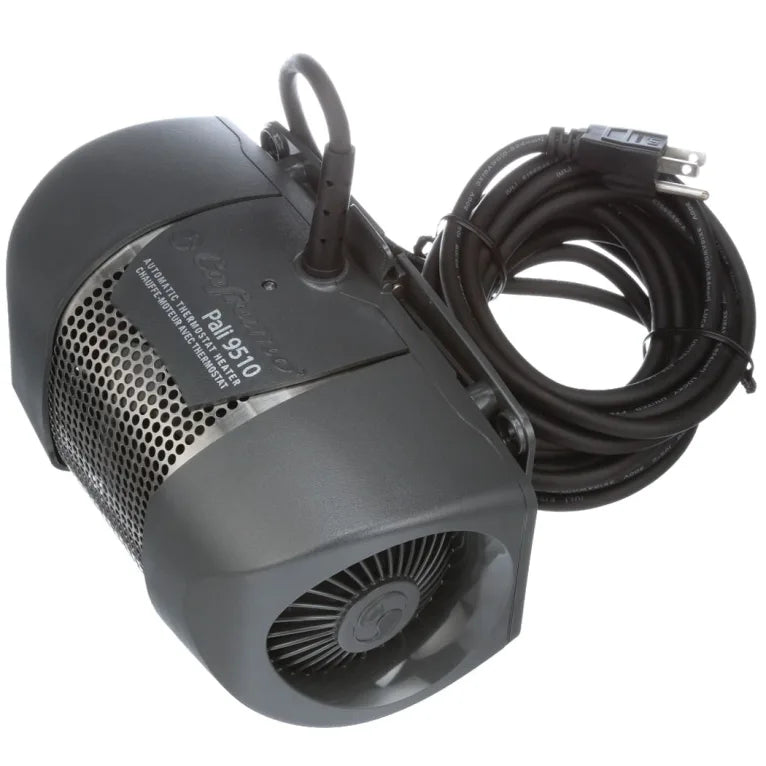

• 20-Foot Power Cord: Provides convenient access to an appropriate power source.
• Quick-Release Mounting Bracket: Included for easy installation and removal during storage.
• 2-Year Warranty: Backed by a two-year manufacturer warranty.

Product Specifications

• Brand: Caframo
• Product Name: Pali BilgeSafe Marine Heater
• Manufacturer Part Number: 9510CA-BBX (also supplied as 9510CABBX; verify)
• Product Type: Marine Bilge / Engine Compartment Heater
• Heating Power: 400 Watts
• Voltage: 120V AC
• Heating Element: Self-Limiting Ceramic Stone
• Thermostat Activation Temperature: 41°F
• Thermostat Shutoff Temperature: 59°F
• Fan Configuration: Dual Fans
• Maximum Rated Compartment Volume: 80 Cubic Feet
• Manufacturer-Stated Minimum Ambient Temperature: -4°F, under specified conditions
• Ignition Protection: Yes
• Power Cord Length: 20 Feet
• Mounting: Quick-Release Bracket Included
• Dimensions: 5" H × 10.5" W × 6.5" D
• Warranty: 2 Years

Marine Engine Freeze Protection

Cold temperatures can cause serious damage to marine engines and cooling system components when water freezes inside the system.

The Caframo Pali BilgeSafe Heater helps maintain warmer air temperatures inside a compatible engine compartment, providing supplemental protection during cold weather.

Its automatic thermostat activates when temperatures drop to approximately 41°F, helping maintain warmth without requiring continuous manual operation.

This makes the heater a useful accessory for boat owners who want to extend their boating season or provide additional engine compartment protection during winter storage.

Important: A bilge heater should not be considered a replacement for manufacturer-recommended engine winterization. Protection depends on compartment size, insulation, ambient conditions, reliable electrical power, and proper installation.

Self-Limiting Ceramic Heating Technology

The Pali BilgeSafe Heater features ceramic stone heating elements designed to regulate their heat output through their electrical resistance characteristics.

This self-limiting design helps prevent excessive heating element temperatures during normal operation.

Combined with its sealed thermostat, the system provides automatically controlled heating for approved marine applications.

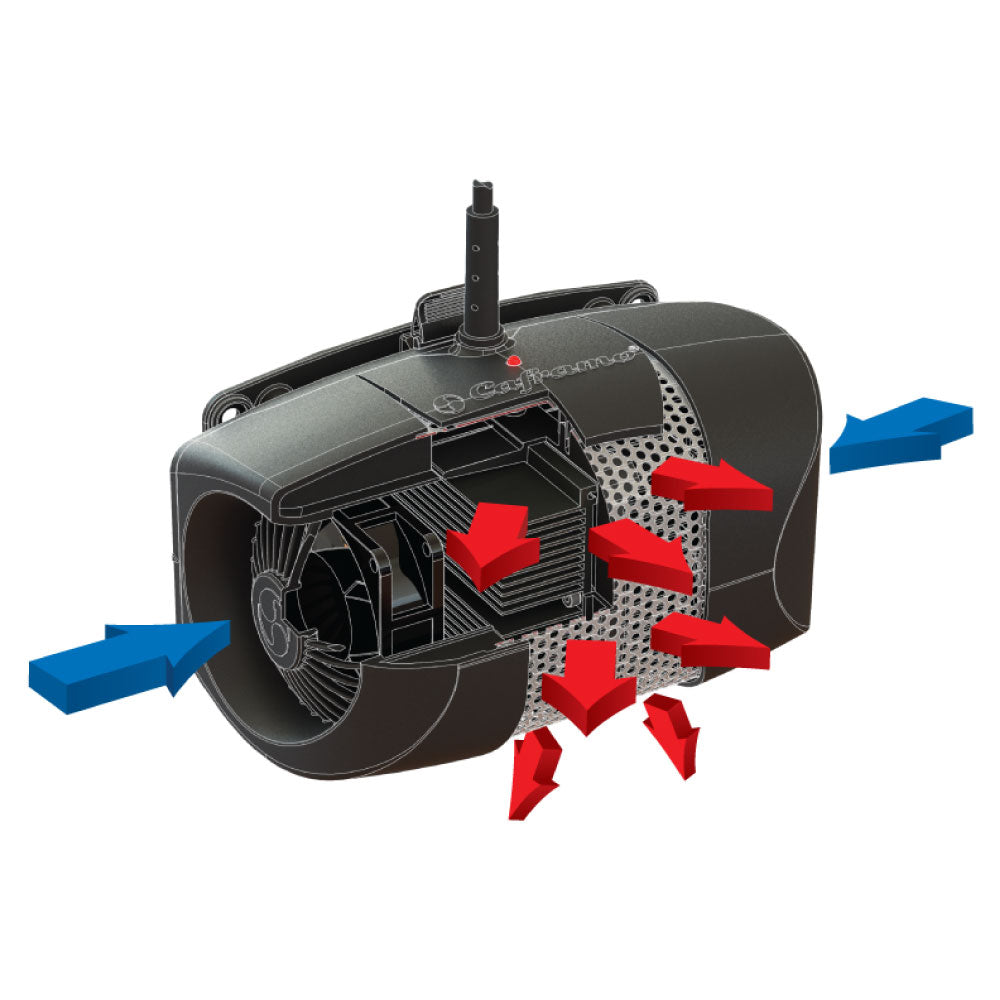

Dual Fans for Even Heat Distribution

The twin-fan design circulates warm air throughout the engine compartment, helping distribute heat more evenly than a stationary heating element alone.

The dual fans also provide an added level of operational reliability during cold weather.

By circulating warmer air around engine components and nearby equipment, the heater helps reduce localized cold spots within a properly sized compartment.

Helps Reduce Condensation & Corrosion

Cold engine compartments can experience condensation when moisture in the air contacts cooler surfaces.

By warming compartment air, the Caframo Pali helps lower relative humidity and reduce conditions that contribute to condensation.

This can help minimize moisture-related surface corrosion on compatible engine components and hardware.

The warmer compartment environment may also help reduce the effects of cold temperatures on batteries.

Ideal Applications

• Inboard boat engine compartments
• Wake boat and watersports boat storage
• Recreational powerboat engine compartments
• Marine bilge heating
• Cold-weather boat storage
• Supplemental engine freeze protection
• Extended boating season maintenance
• Engine compartment condensation reduction

Installation & Safety Considerations

The Caframo Pali includes a quick-release mounting bracket for convenient installation and removal.

The 20-foot power cord allows connection to a suitable 120V AC power source.

Install the heater according to the manufacturer's instructions, maintaining all required clearances and using an approved electrical connection.

Important: Use only in approved compartments and configurations. Do not obstruct the fans or airflow. Follow all manufacturer requirements for ignition protection, electrical safety, mounting, and operation.

For winter storage, complete all required engine winterization procedures even when using a bilge heater. A power outage or heater malfunction can eliminate supplemental freeze protection.

What's Included

• (1) Caframo Pali BilgeSafe 400W Marine Heater
• (1) Quick-Release Mounting Bracket
• Attached 20-Foot Power Cord

Warranty: 2-Year Manufacturer Warranty
