Indmar DIPSTICK 45C,63C & 45IV

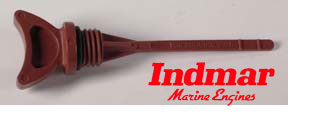

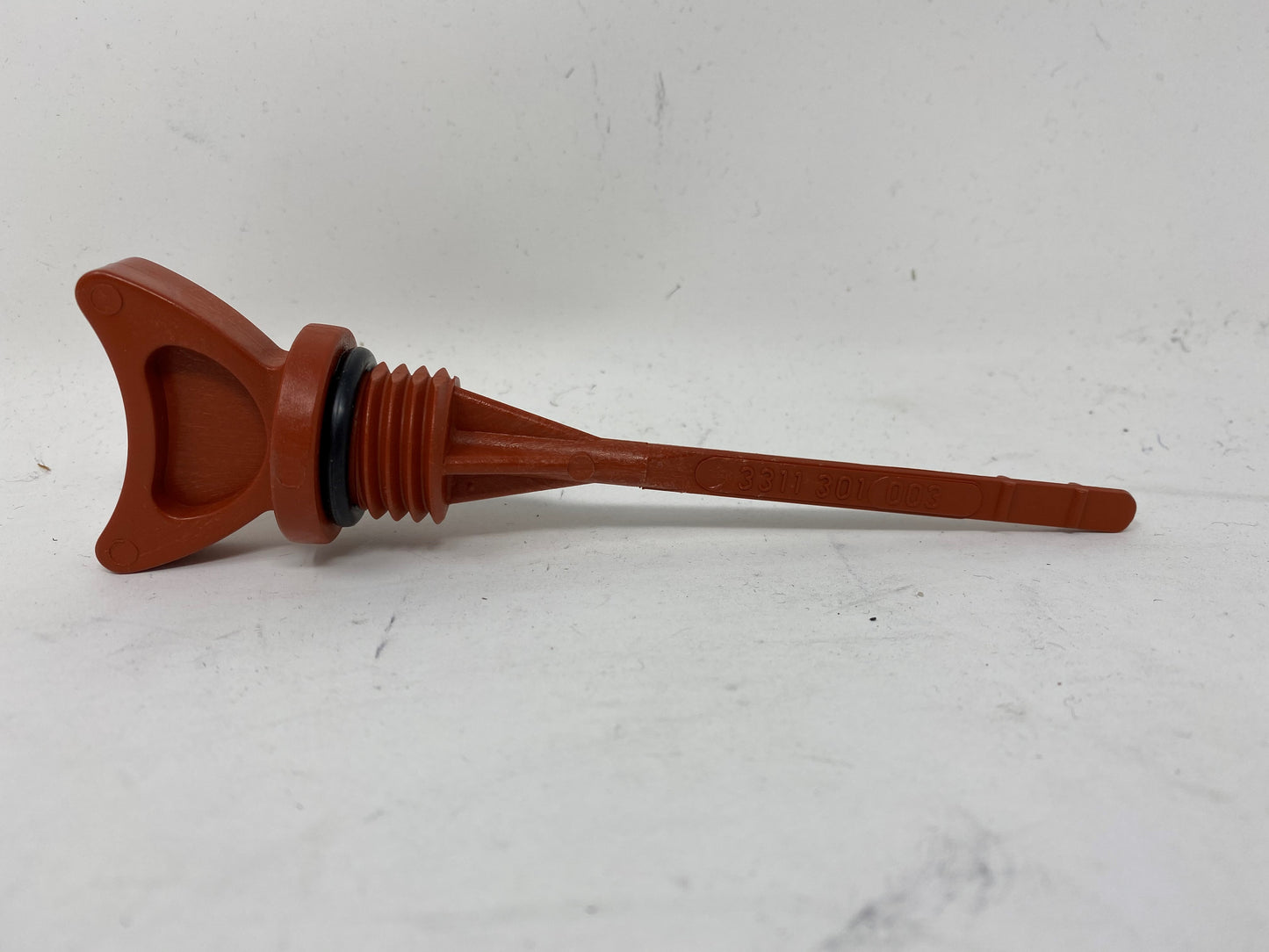

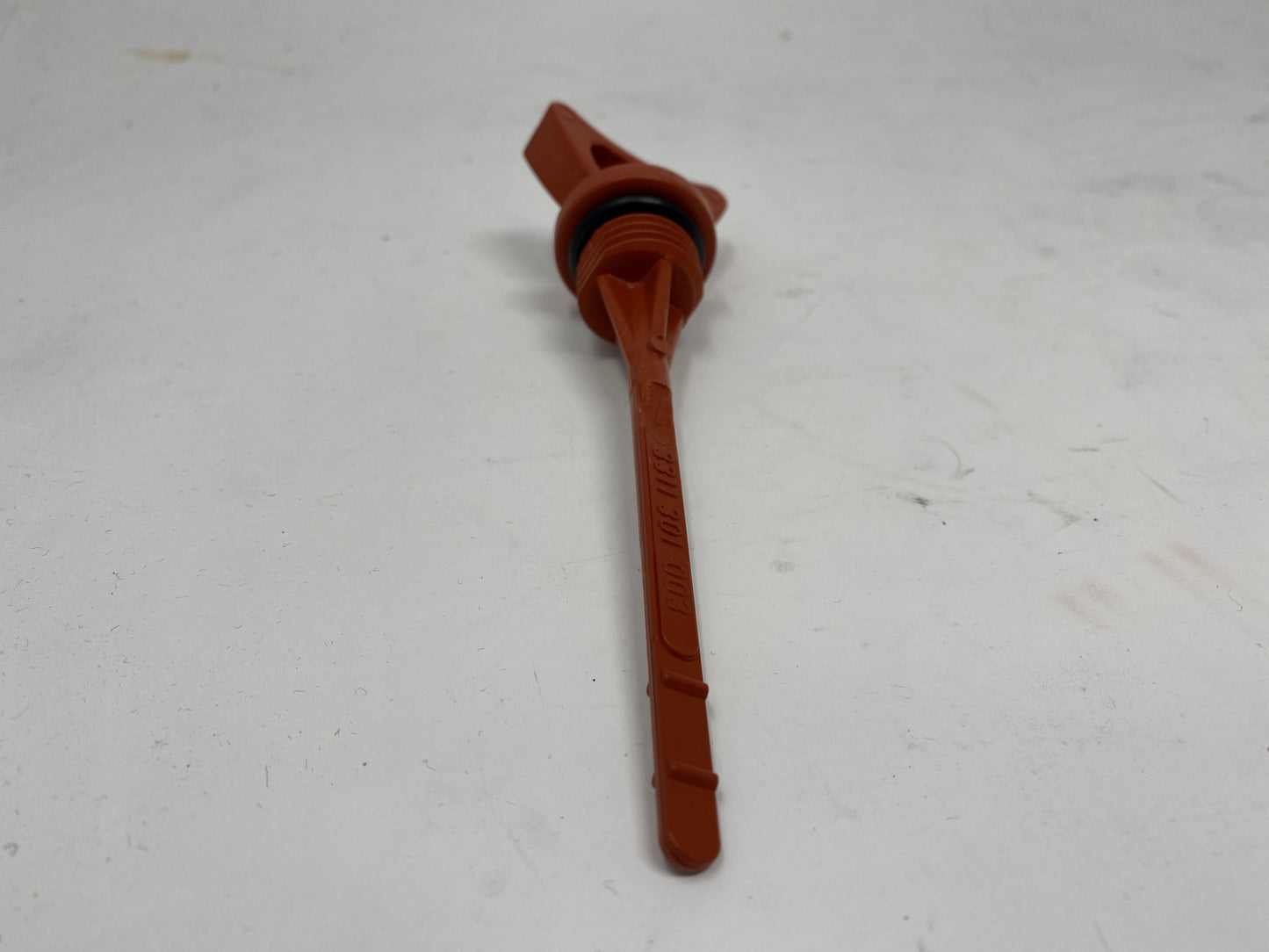

Hurth Transmission dipstick commonly used on Hurth 1 to 1 transmission and on the Ski-V V-Drive. Dipstick measures 6-1/8 inches long overall length and is red in color.

Product Specs:

• Old Indmar part# 903026 superseded to Indmar part# 903064

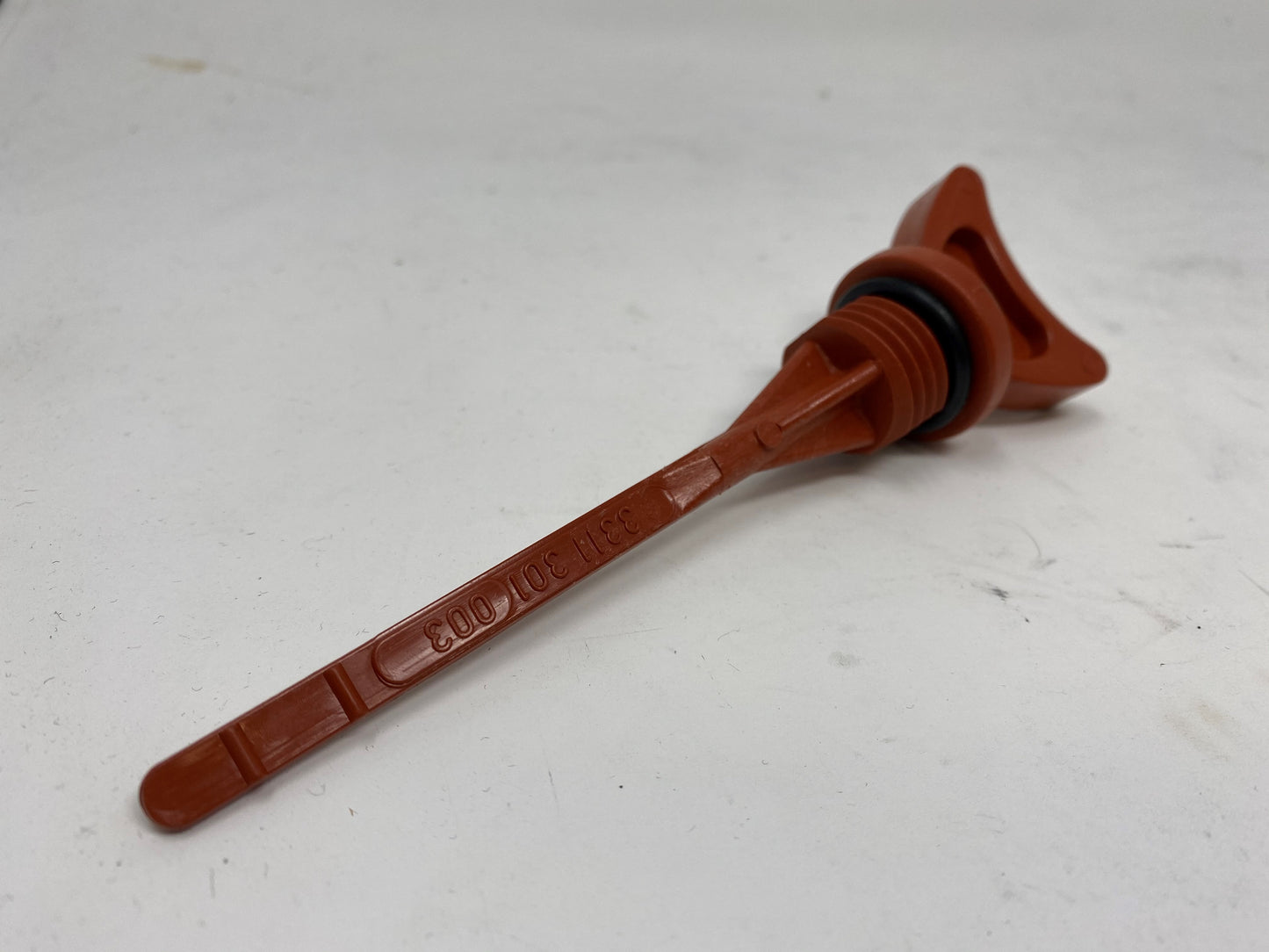

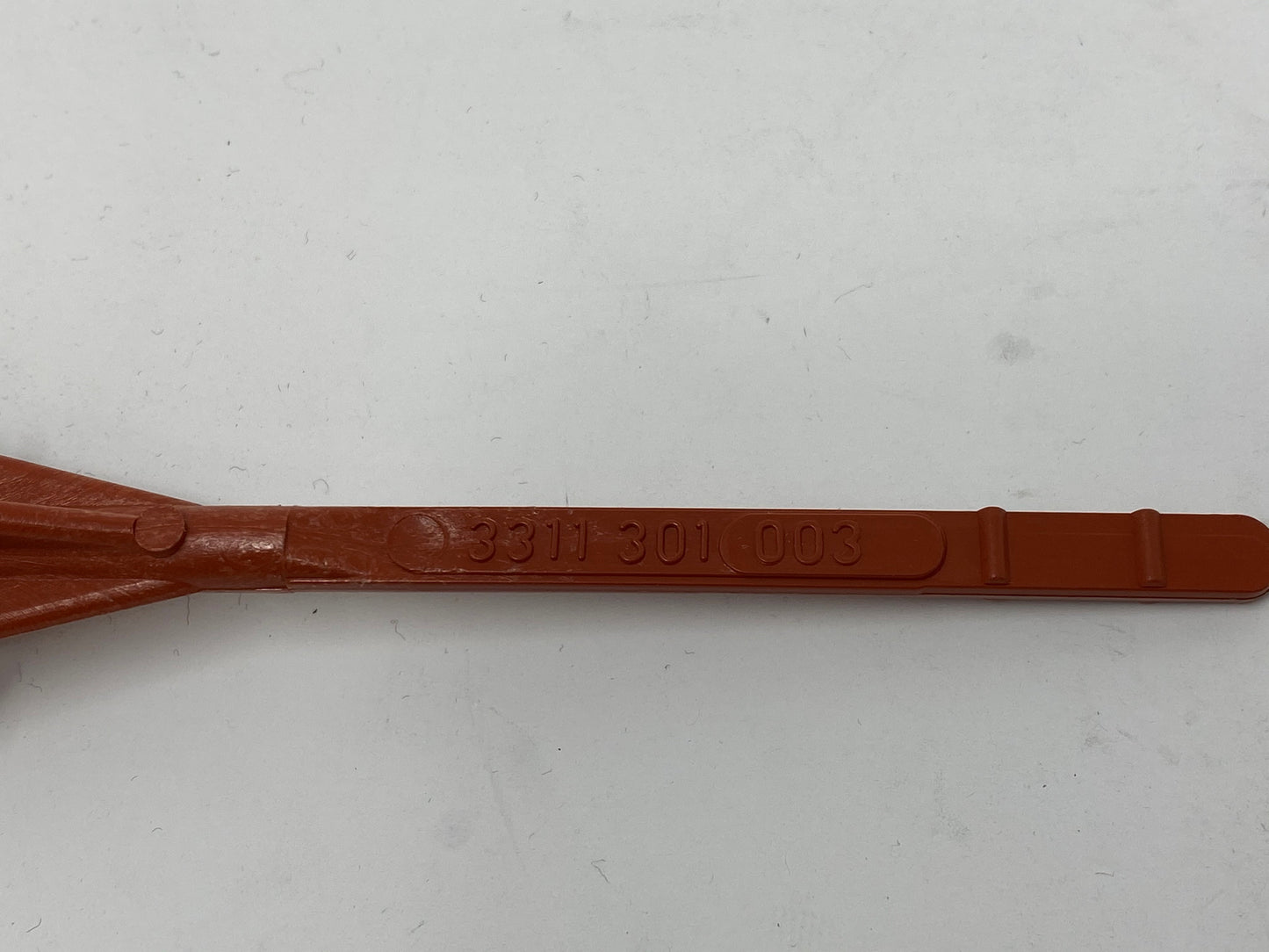

• The new dipstick has part # 3311 301 003
• Thread in style dipstick
• Known Applications 45C,63C & 45IV Front
• that fits both Hurth 1-1 transmission as well as the V-drive part of Ski-V.
• Measures 6-1/8 inches overall length
• Measures 4-3/4 from threaded base to the tip of the dipstick
• Sold Individually

How to Check Transmission Oil Level in ZF Hurth and Borg Warner Transmissions with a threaded dipstick

1. With the engine and transmission is at operating temperature (160 Degrees), shut down the engine.
2. Remove the dipstick and wipe the dipstick clean within 30 seconds of shutting the engine down
3. Insert the dipstick back into the transmission (do not screw in), push all the way in, withdraw, and check the fluid level.
4. Add or remove fluid as necessary to bring the fluid level to the proper level within the operating range.
5. Reinstall the dipstick and screw into the housing tight
