Indmar 865055 Heat Exchanger Zinc Anode Drain Plug – PCM R168008

Sku: 865055
In stock
Regular price
$19.50
Regular price
Sale price
$19.50
Shipping calculated at checkout.

Description

Caret Down

Indmar 865055 Heat Exchanger Zinc Anode Drain Plug – PCM R168008

Protect your marine engine's freshwater cooling system from corrosion with the Indmar 865055 Heat Exchanger Zinc Anode Drain Plug. This replacement sacrificial zinc anode is designed for compatible Indmar, PCM, and Challenger marine engines equipped with factory half-closed or fully closed cooling systems.

The zinc anode helps protect the metal components inside your marine heat exchanger from galvanic corrosion. As the zinc gradually deteriorates, it sacrifices itself to help protect more critical cooling system components.

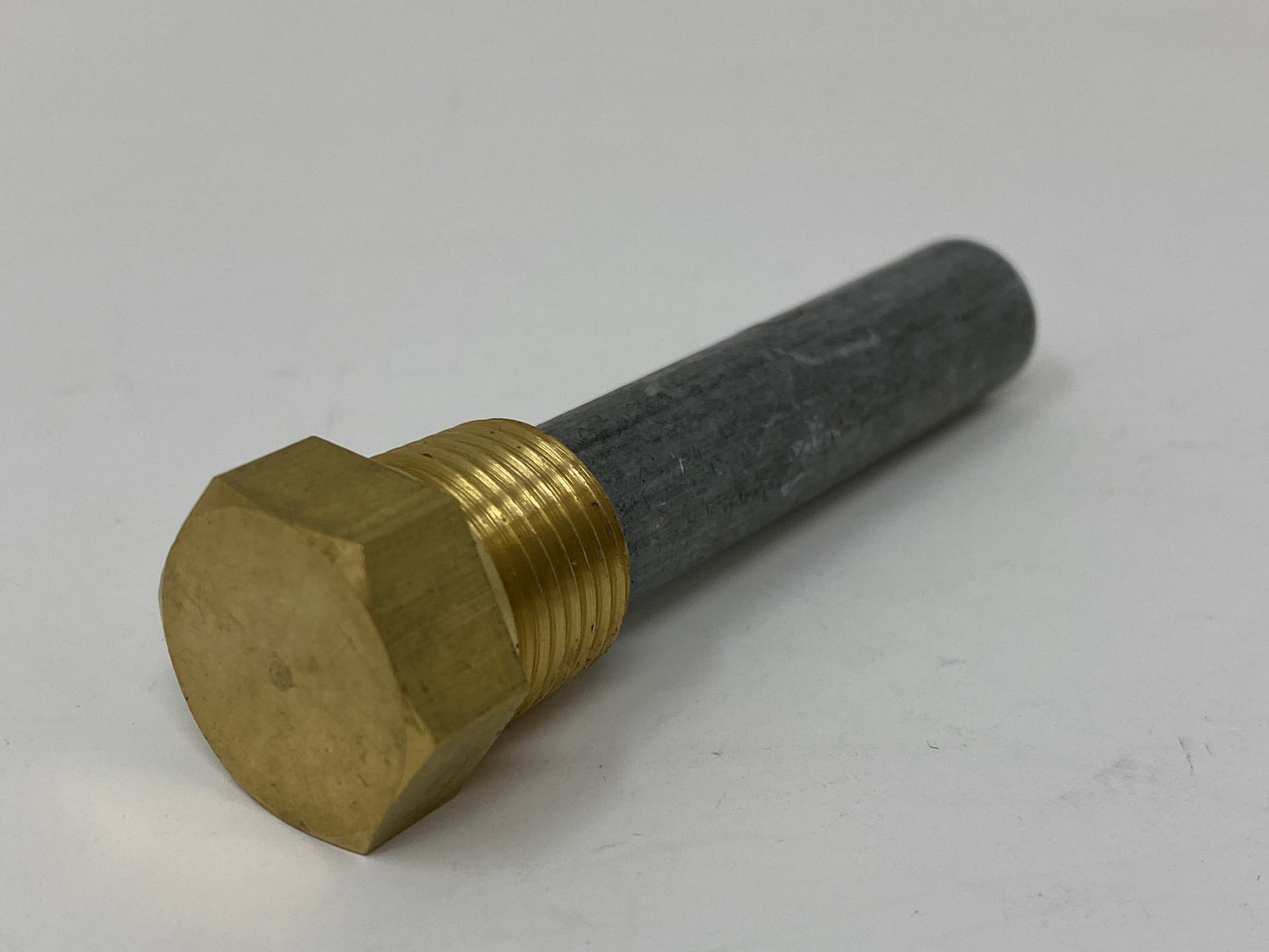

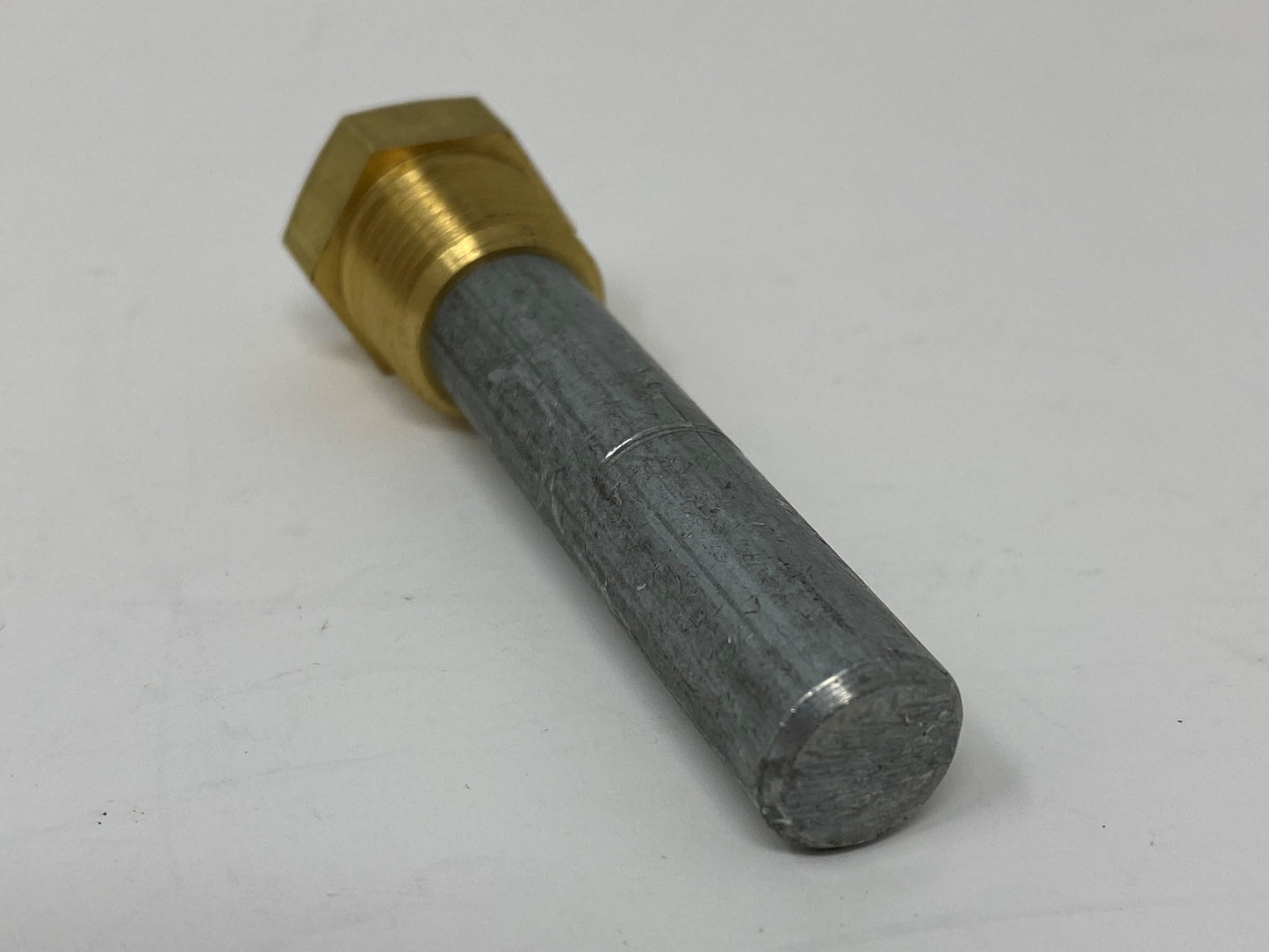

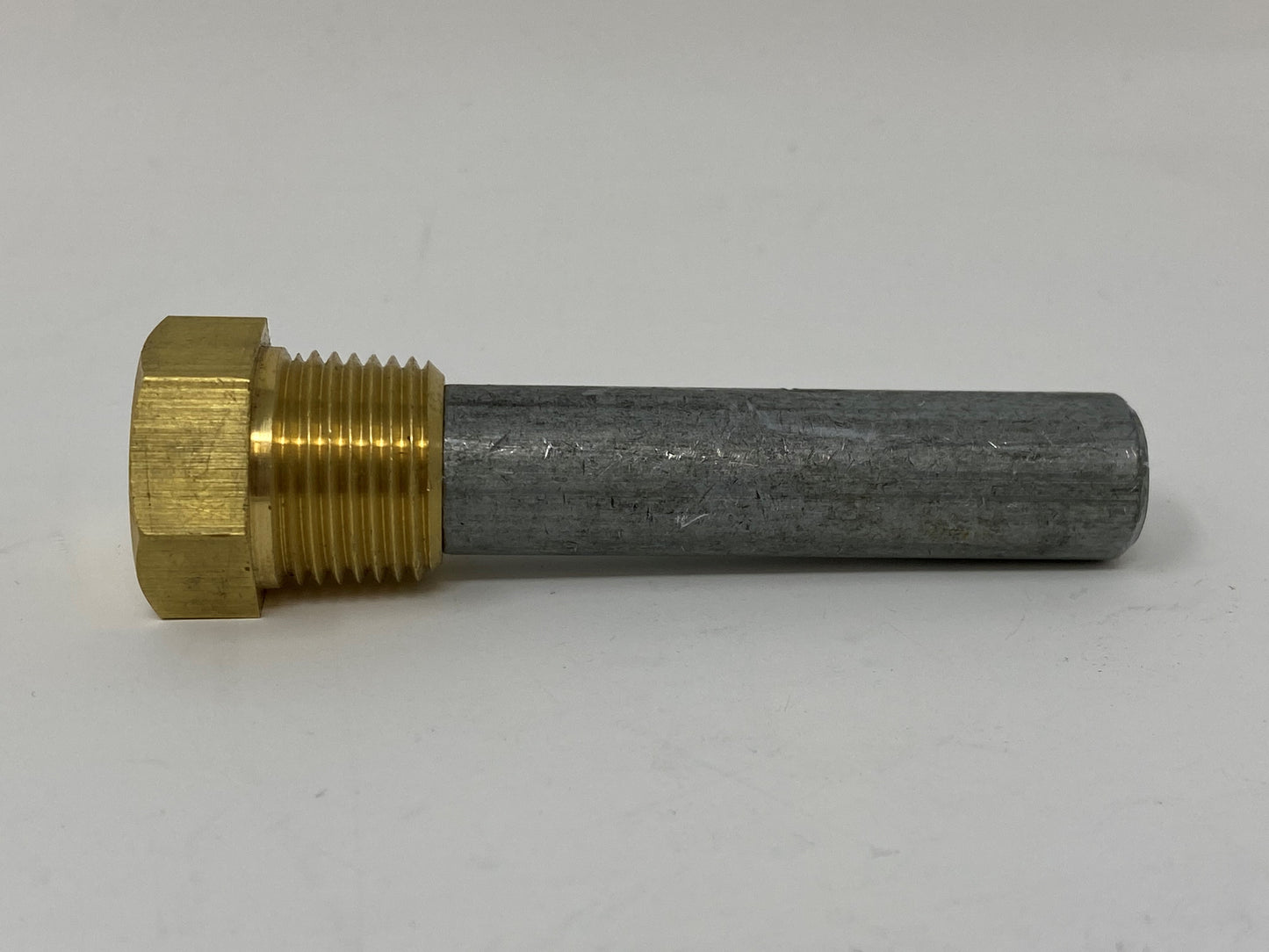

This replacement anode features a brass hex drain plug and a 2-inch-long zinc element. It is commonly installed at the lowest point on the underside of compatible marine heat exchangers and is also used in select PCM and Challenger exhaust manifold applications.

Product Features & Benefits

  • Corrosion Protection: Sacrificial zinc anode helps protect compatible marine heat exchangers from galvanic corrosion.
  • Direct Replacement: Replaces Indmar part #865055 and cross-references PCM part #R168008.
  • Brass Drain Plug: Features a 9/16-inch brass hex head for installation and removal.
  • Marine Cooling Application: Designed for compatible half-closed and fully closed marine engine cooling systems.
  • Routine Maintenance Part: Helps maintain the integrity and service life of your marine heat exchanger.
  • Sold Individually: Includes one replacement zinc anode with brass drain plug.

Product Specifications

  • Manufacturer/Brand: ORCA
  • Indmar Part Number: 865055
  • PCM Cross-Reference: R168008
  • Product Type: Marine Heat Exchanger Sacrificial Zinc Anode / Drain Plug
  • Zinc Element Length: 2 inches
  • Zinc Element Diameter: 1/2 inch
  • Overall Length: 2-3/4 inches
  • Brass Hex Head Size: 9/16 inch
  • Material: Zinc sacrificial anode with brass drain plug
  • Application: Marine heat exchangers and select exhaust manifolds
  • Quantity: 1
  • Country of Manufacture: United States

Important: The 9/16-inch measurement refers to the brass hex head, not the threaded fitting size. Verify the dimensions and thread compatibility of your existing anode before ordering.

What Does a Heat Exchanger Zinc Anode Do?

A sacrificial zinc anode is an important corrosion-protection component in many marine cooling systems.

When dissimilar metals are exposed to conductive water, galvanic corrosion can occur. The zinc anode is designed to corrode preferentially, helping protect more valuable metal components within the cooling system.

Over time, the zinc material is consumed and must be replaced. Operating with a severely depleted or missing anode can leave compatible heat exchanger components more vulnerable to corrosion.

Regular inspection and replacement are especially important for boats operated in saltwater or brackish water.

Compatibility & Fitment

Indmar Part #865055 / PCM Part #R168008 is used in select marine engine cooling applications, including:

  • Indmar engines equipped with compatible factory half-closed cooling systems.
  • Indmar engines equipped with compatible factory fully closed cooling systems.
  • PCM marine engines using the R168008 zinc anode.
  • Select Challenger marine engine cooling systems.
  • Certain PCM and Challenger exhaust manifolds are equipped with this style of zinc drain plug.

Fitment is determined by the specific heat exchanger or exhaust manifold installed on your engine. Not every Indmar, PCM, or Challenger engine uses this anode.

Before purchasing, compare your existing zinc anode's part number, dimensions, and threaded connection to ensure proper fitment.

When Should You Replace Your Heat Exchanger Zinc Anode?

Inspect your marine heat exchanger zinc anode at least once per year or every 100 engine hours, following the maintenance guidance on the existing Bakes Online product listing.

Replace the zinc anode when approximately 50% of the original zinc material has been consumed.

You should also inspect the anode if you notice:

  • Significant corrosion or pitting.
  • A severely deteriorated or missing zinc element.
  • Unusual corrosion inside the heat exchanger.
  • Evidence of leakage around the drain plug.

Saltwater and brackish-water operation can accelerate anode consumption, making regular inspections particularly important.

Installation & Maintenance Tips

  1. Allow the engine and cooling system to cool completely before servicing.
  2. Locate the zinc anode drain plug on the heat exchanger or compatible exhaust manifold.
  3. Follow the engine manufacturer's instructions for safely removing the existing drain plug.
  4. Inspect the zinc element for corrosion, deterioration, and remaining material.
  5. Verify that the replacement anode matches the original part number, dimensions, and threads.
  6. Install the replacement anode according to the manufacturer's service instructions.
  7. Check for leaks after installation and verify proper cooling system operation.

Important: Follow the manufacturer's instructions regarding thread sealant and installation torque. Improper installation or excessive sealant can interfere with the anode's intended operation.

Frequently Asked Questions

What does Indmar part #865055 fit?

Indmar 865055 is a replacement sacrificial zinc anode used in compatible Indmar, PCM, and Challenger marine heat exchangers and select exhaust manifold applications. Verify your existing part number and dimensions before ordering.

Is Indmar 865055 the same as PCM R168008?

The Bakes Online product listing identifies PCM R168008 as a cross-reference for Indmar 865055. Confirm compatibility with your specific engine and cooling system before purchasing.

What are the dimensions of the Indmar 865055 zinc anode?

The zinc element measures approximately 2 inches long and 1/2 inch in diameter. The overall assembly length is approximately 2-3/4 inches, with a 9/16-inch brass hex head.

How often should I replace my marine heat exchanger zinc anode?

Inspect the zinc at least annually or every 100 engine hours. Replace it when approximately half of the original zinc material has been consumed, or sooner if required by your engine manufacturer's maintenance schedule.

Where is the heat exchanger zinc anode located?

On many compatible marine heat exchangers, the zinc anode is installed at the lowest point on the underside of the heat exchanger. Certain PCM and Challenger exhaust manifolds also use this style of zinc drain plug.

Can I operate my boat with a worn-out zinc anode?

A depleted zinc anode can reduce corrosion protection for compatible cooling system components. Replace severely worn or missing anodes promptly to help prevent corrosion-related damage.

Is this the correct zinc anode for my Malibu, MasterCraft, Supra, or Moomba boat?

Compatibility depends on the specific engine, heat exchanger, and cooling system installed in your boat. Verify the original part number and dimensions rather than selecting an anode based solely on the boat manufacturer.

Related Marine Cooling Parts

Shop Indmar & PCM Cooling System Parts at Bakes Online

Bakes Online specializes in replacement parts and maintenance supplies for inboard ski, wakeboard, and wakesurf boats. Serving the watersports industry since 1989, our team has extensive experience helping boat owners maintain Indmar, PCM, and other marine engines.

Whether you're replacing a worn zinc anode or performing routine freshwater cooling system maintenance, Bakes Online can help you identify the correct replacement parts.

Need help confirming fitment? Contact the Bakes Online Parts Team with your engine model, heat exchanger information, and photos of your existing zinc anode before ordering.
