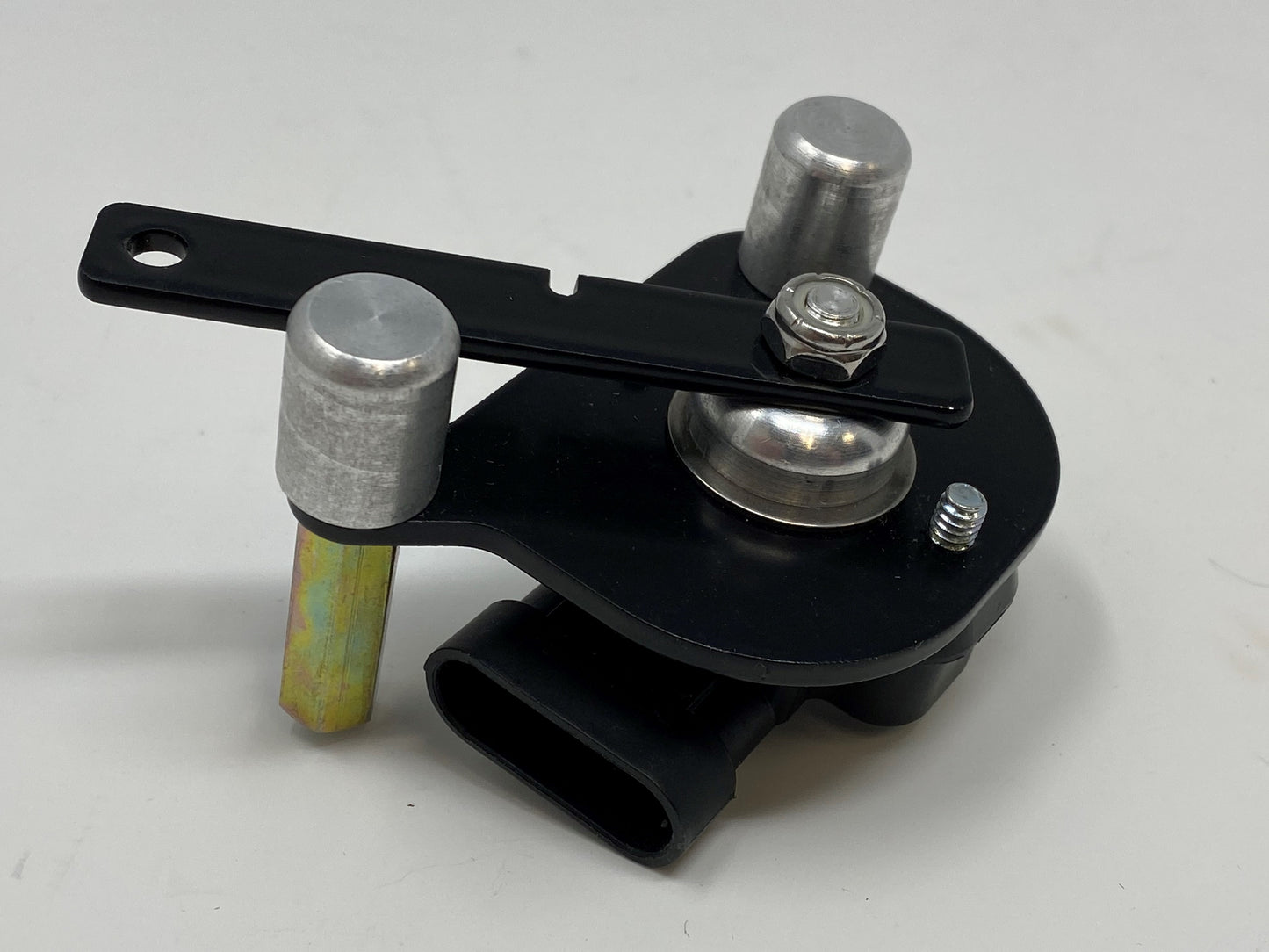

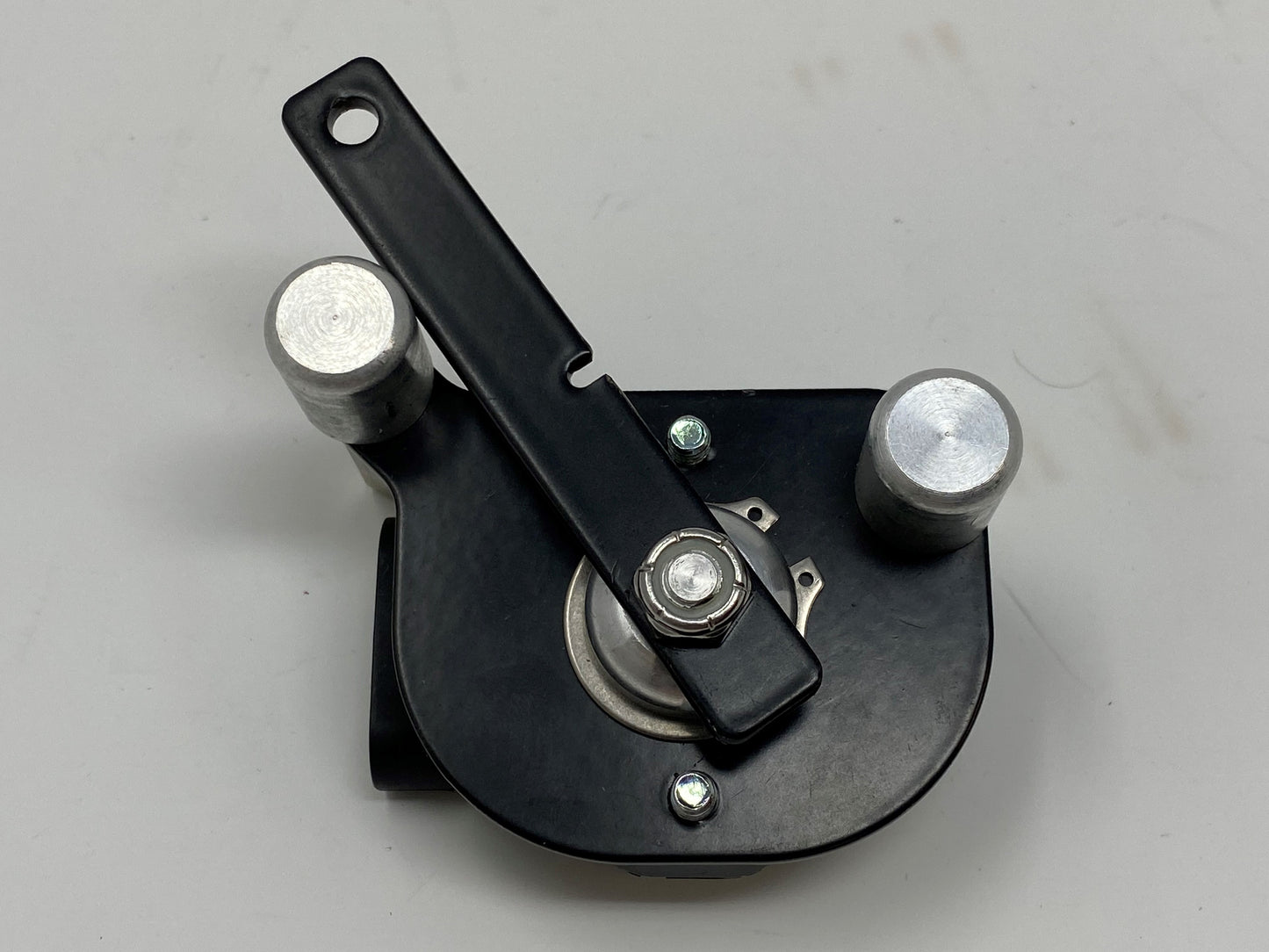

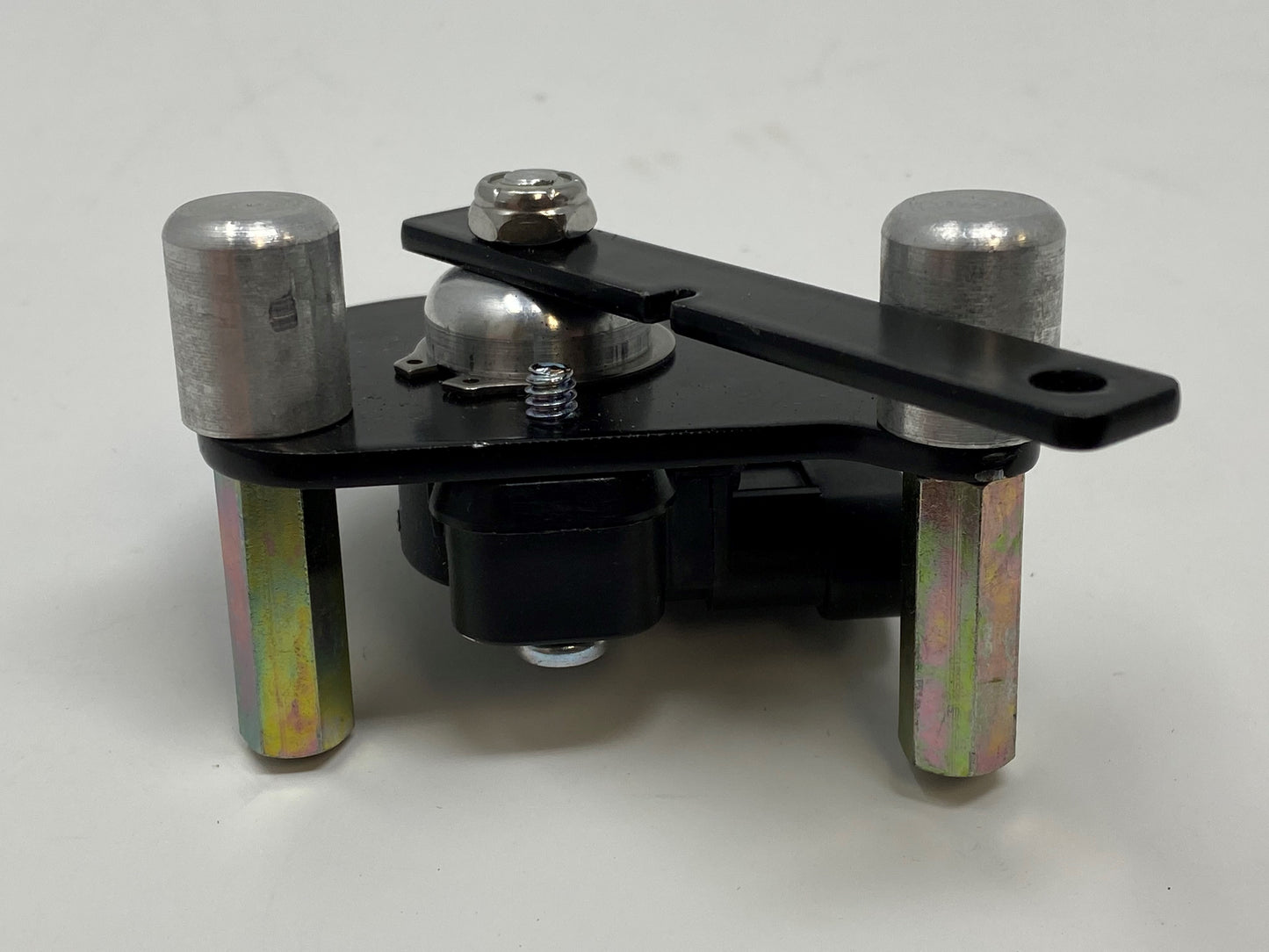

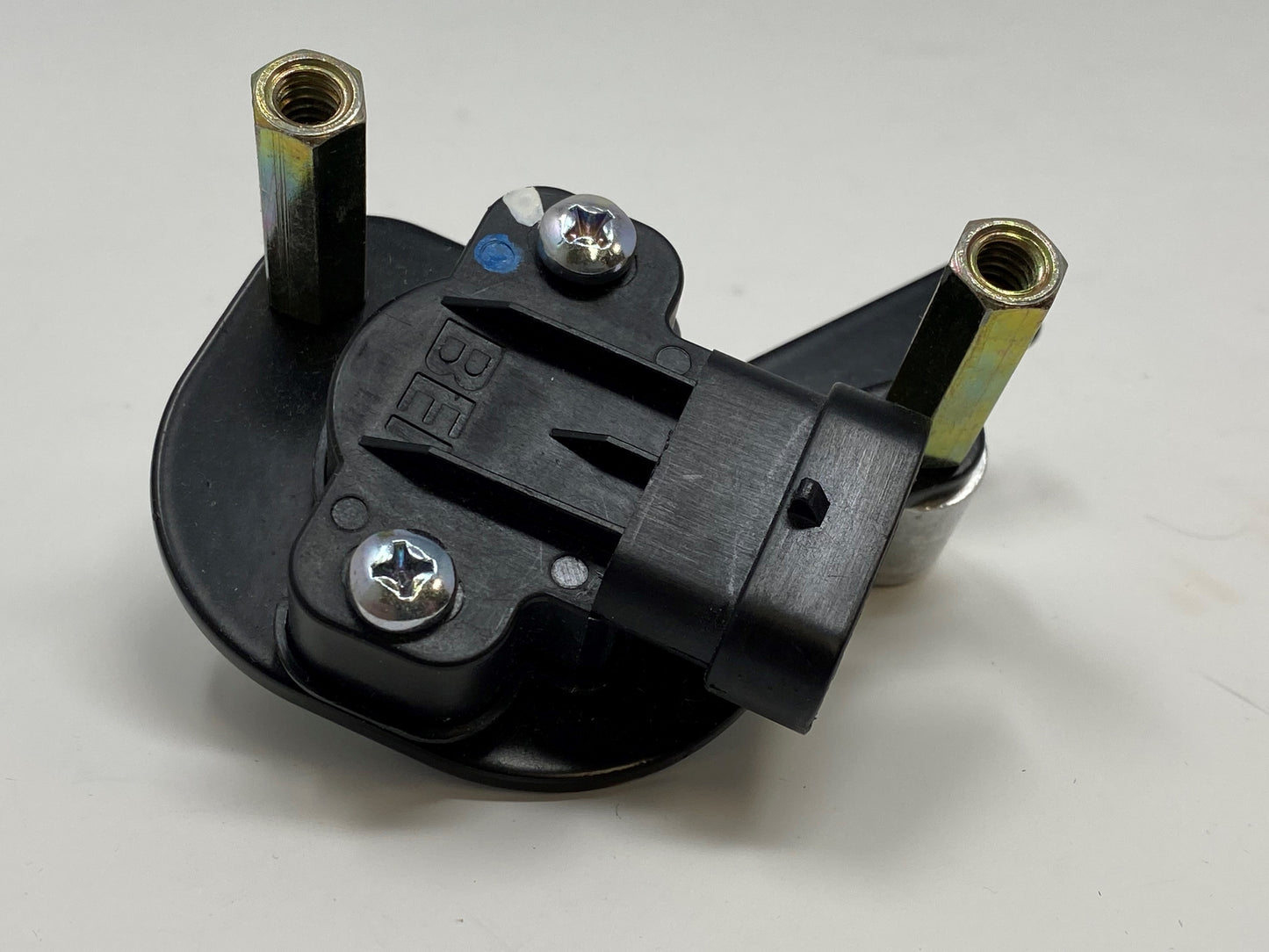

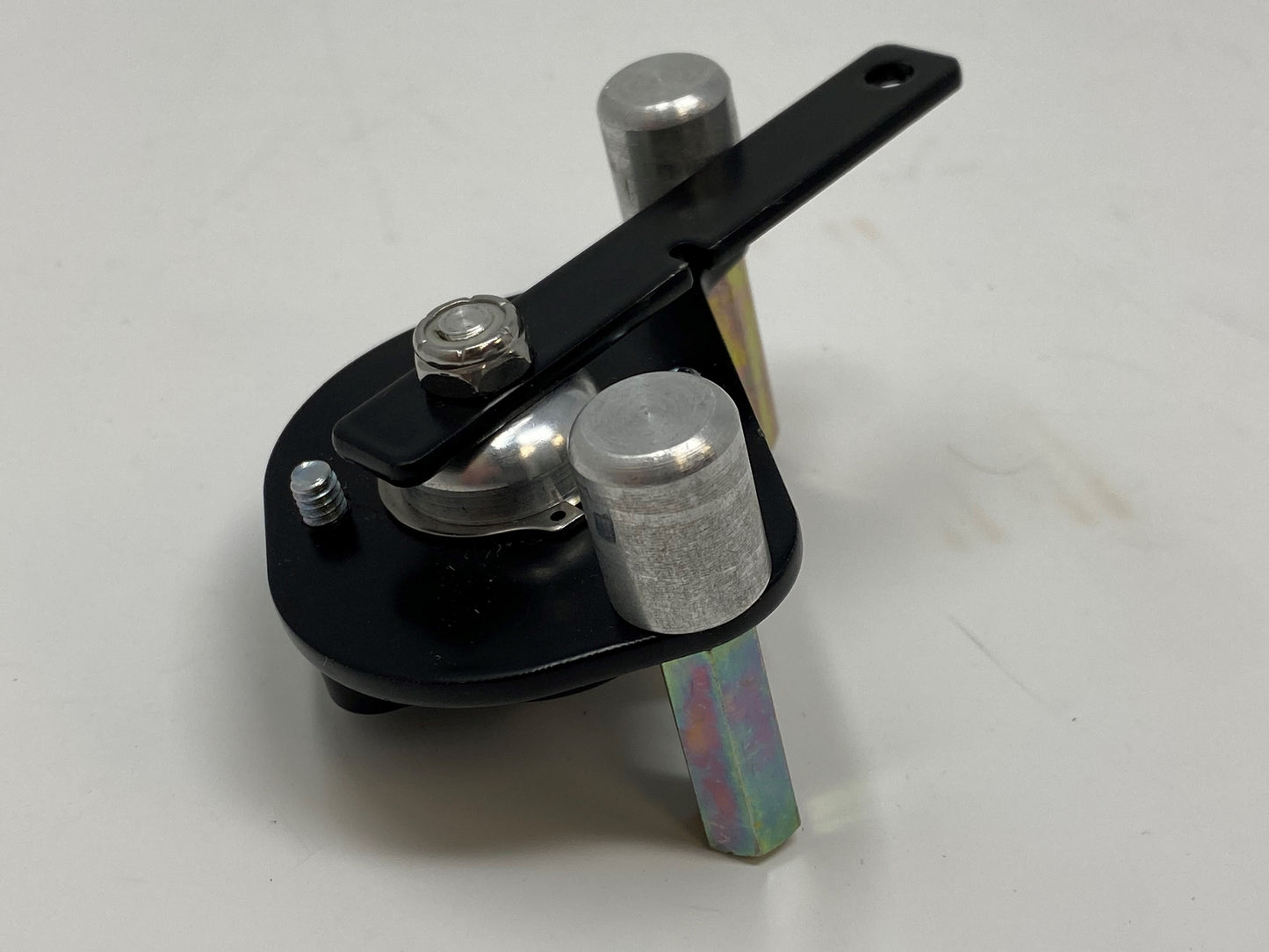

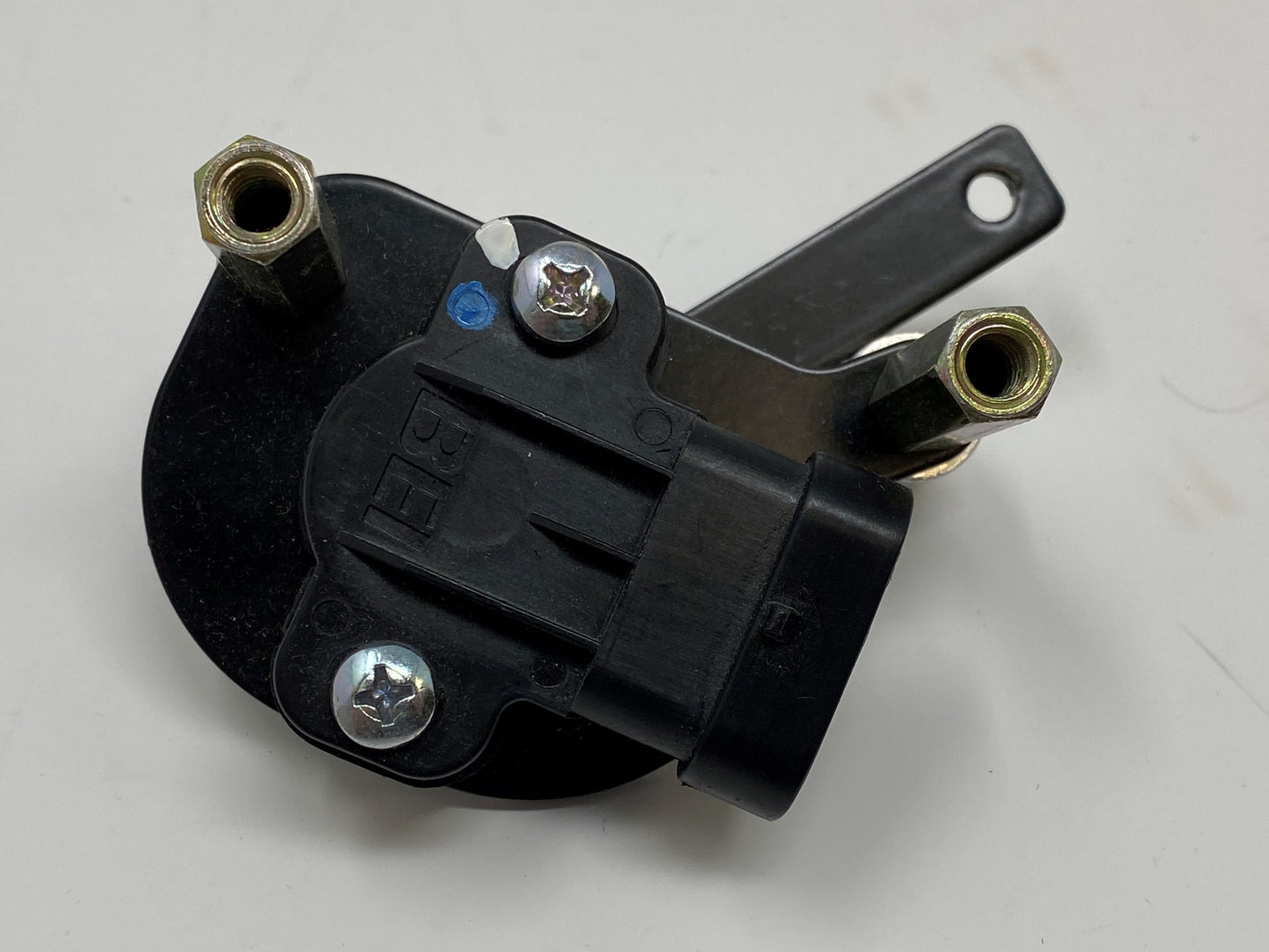

Indmar TPS Sensor for Malibu Fly By Wire Morse Control 8.1L Only

Indmar 397020 or S397020 ASM (Altitude Sensor Module) Pedal position sensor. Installed on Malibu Boats equipped with a Morse throttle control, this sensor is mounted on the backside of the Morse throttle control and tells the engine what position the throttle is in. 397020 will only work on 8.1L engines.

Product Specs:

• Only works with fly by wire 8.1L Engines.
• Does not work on ZF Command Controls, the pedal position sensor is not serviceable on that unit.
• Do Not Over-tighten screws when mounting. Torque to 1 in. pound using blue loc-tite on threads

Bakes Resource Library:

Throttlemate Potentionmeter Install Instructions(PDF)
