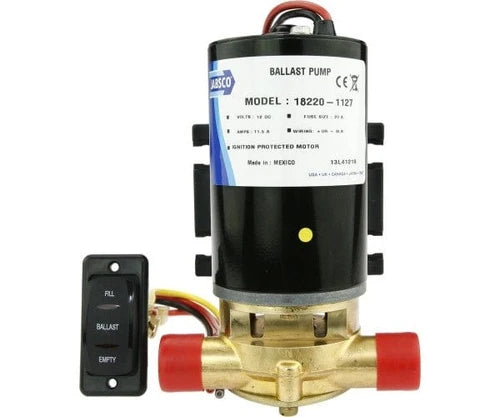

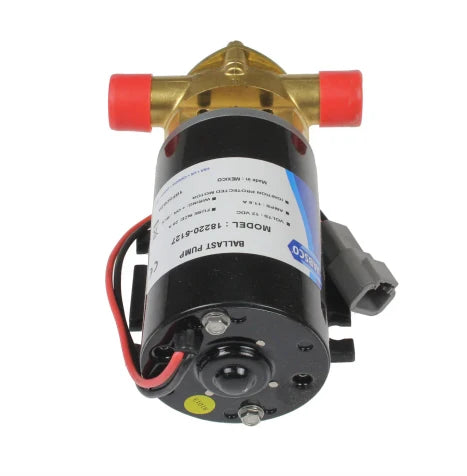

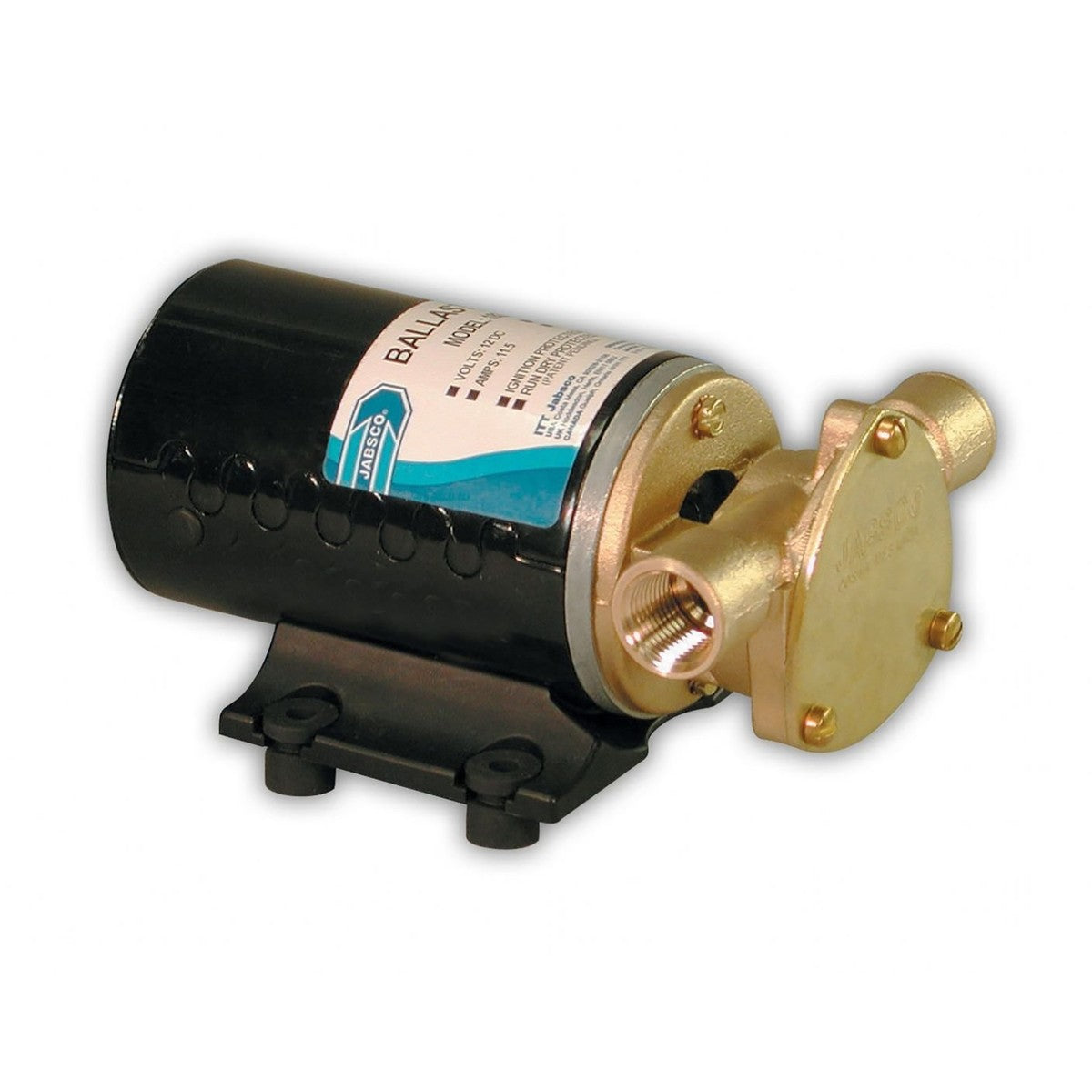

Jabsco Ballast Puppy 9 GPM Reversible Pump with Rocker Switch – 18220

Fill and drain your wake boat's ballast tanks or bags with the Jabsco Ballast Puppy Reversible Pump with Rocker Switch (MFG #18220). Designed for wakeboarding and wakesurfing ballast systems, this 12V electric pump moves water in both directions, allowing you to fill ballast tanks and reverse the flow to drain them using the same pump.

The Jabsco Ballast Puppy 18220 features a durable cast bronze housing, integrated brass hose connections, and a green Jabsco nitrile impeller. Its reversible operation makes it a convenient solution for compatible factory ballast systems and aftermarket wake boat ballast installations.

Jabsco Ballast Puppy pumps are used in select MasterCraft, Supra, Moomba, Correct Craft/Nautique, and Centurion wake boats.

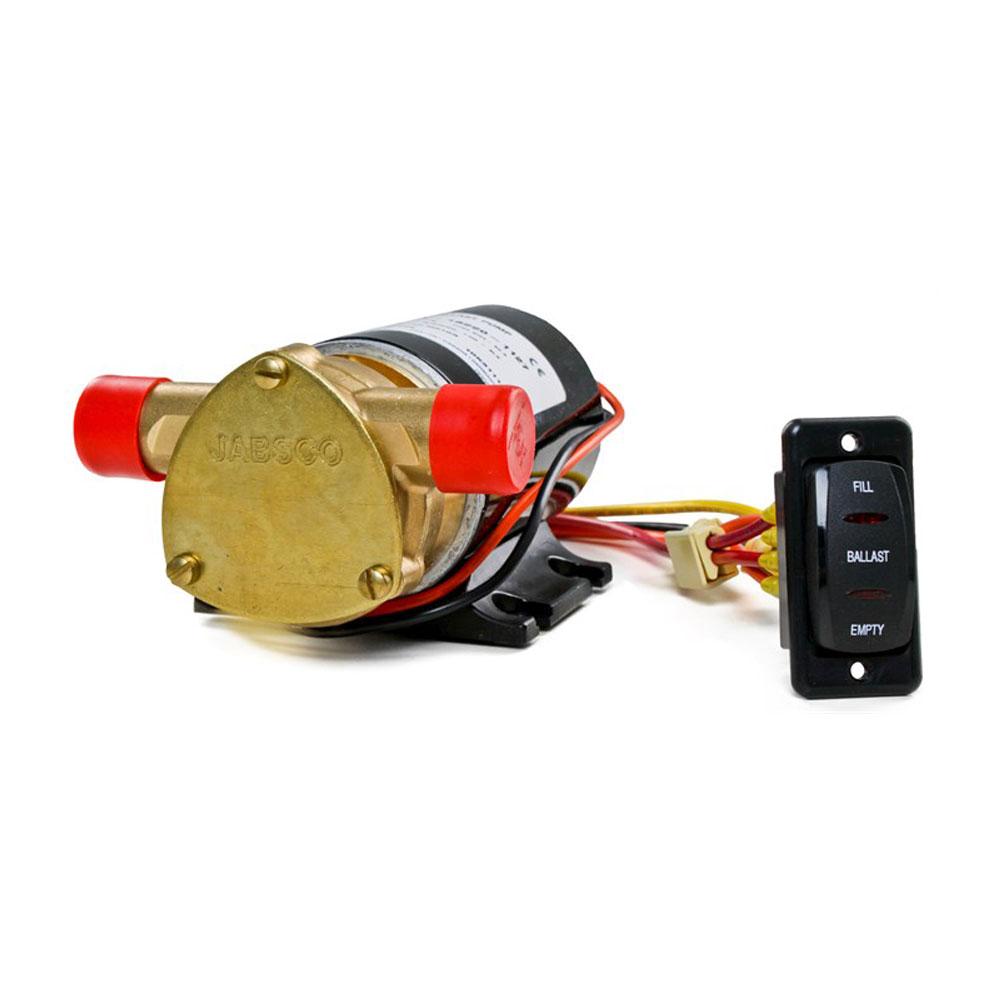

This version includes a rocker switch and wiring pigtail for controlling the pump's fill and drain functions.

Key Features & Benefits

• Reversible Ballast Pump: Fills and drains ballast tanks or bags using a single pump.
• 12V DC Operation: Designed for compatible marine electrical systems.
• High-Flow Ballast Pumping: Supplied specifications list a flow rate of 640 gallons per hour.
• Rocker Switch Included: Provides directional control for filling and draining.
• Switch Wiring Pigtail: Included for compatible electrical installations.
• Green Jabsco Nitrile Impeller: Flexible impeller for moving water through ballast systems.
• Cast Bronze Housing: Durable construction for marine applications.
• Integrated 1" Brass Hose Barbs: Built-in connections for compatible ballast hoses.
• 1/2" Internal Pipe Threads: Additional threaded connection configuration.
• Run-Dry Protection: Integrated protection device helps reduce pump damage during certain dry-running conditions.
• Ignition-Protected: Manufacturer-stated compliance with applicable USCG ignition-protection requirements.
• OEM Ballast Applications: Used in select MasterCraft, Supra, Moomba, Nautique, and Centurion systems.

Product Specifications

• Brand: Jabsco
• Product Name: Ballast Puppy Reversible Pump with Rocker Switch
• Manufacturer Part Number (MFG #): 18220
• Product Type: Wake Boat Ballast Pump
• Voltage: 12V DC
• Pump Operation: Reversible
• Advertised Flow Rate: 9 GPM
• Additional Supplied Flow Specification: 640 GPH (approximately 10.7 GPM; verify exact rating)
• Impeller: Green Jabsco Nitrile
• Housing Material: Cast Bronze
• Hose Barb Size: 1"
• Internal Pipe Threads: 1/2"
• Run-Dry Protection: Integrated
• Ignition Protection: Manufacturer-Stated USCG Compliance
• Rocker Switch: Included
• Switch Wiring Pigtail: Included

Fast Ballast Filling & Draining

The Jabsco 18220 Ballast Puppy is designed to make ballast adjustments easier while preparing for wakeboarding or wakesurfing.

Its reversible pumping action allows water to move into ballast tanks or bags during filling and back out when draining.

This makes the pump a practical choice for ballast systems designed to use one pump for both functions.

Actual fill and drain times depend on ballast capacity, hose routing, plumbing restrictions, and operating conditions.

Compatible Wake Boat Applications

Jabsco Ballast Puppy pumps are commonly found in select factory ballast systems on:

• MasterCraft
• Supra
• Moomba
• Correct Craft / Nautique
• Centurion

The pump may also be suitable for compatible aftermarket ballast systems.

Important: Confirm your existing pump's manufacturer part number, voltage, hose connections, mounting arrangement, and electrical configuration before ordering. Compatibility varies by boat model and year.

Durable Marine Pump Construction

The Jabsco Ballast Puppy features a cast bronze pump housing with integrated brass hose connections.

Its green nitrile impeller is designed to move water through compatible ballast plumbing systems.

The integrated run-dry protection device helps reduce the risk of pump damage under certain operating conditions, but the pump should still be operated according to Jabsco's instructions.

Rocker Switch & Wiring Included

The Jabsco Ballast Puppy 18220 package includes a rocker switch and wiring pigtail.

The switch provides directional control for filling and draining compatible ballast systems.

Electrical installation should follow the manufacturer's wiring instructions, including appropriate circuit protection and wire sizing.

What's Included

• (1) Jabsco Ballast Puppy Reversible 12V Pump
• (1) Green Jabsco Nitrile Impeller (Installed)
• (1) Rocker Switch
• (1) Switch Wiring Pigtail
