Jabsco Fluid Drill Pump Kit with Hose – 3.5 GPM – 17250-0003

Make fluid transfer easier with the Jabsco Fluid Drill Pump Kit with Hose (MFG #17250-0003). This compact, portable drill-powered utility pump provides a convenient way to transfer compatible fluids during boat maintenance, equipment servicing, and general utility applications.

Designed to operate with an electric drill equipped with a 1/4" to 3/8" chuck, the Jabsco drill pump eliminates the need for a separate electric pump motor. Simply connect the pump to a compatible drill, attach the appropriate hoses, and use the drill to power fluid transfer.

Capable of pumping up to 3.5 gallons per minute (GPM) and self-priming from depths of up to 3 feet, this versatile fluid transfer pump offers convenient powered pumping in locations where a traditional utility pump may be impractical.

Its compact design and included garden hose thread adapters make the Jabsco 17250-0003 Drill Pump Kit a practical addition to marine maintenance tools and onboard equipment.

Key Features & Benefits

• Drill-Powered Fluid Transfer: Uses a compatible electric drill to power the pump without a separate motor.
• Up to 3.5 GPM Flow Rate: Provides convenient fluid transfer for compatible maintenance and utility applications.
• Self-Priming Up to 3 Feet: Designed to draw fluid from below the pump within its rated priming capability.
• 1/4" Diameter Drive Shaft: Fits compatible electric drill chucks.
• Compatible with 1/4" to 3/8" Drill Chucks: Designed for use with commonly available electric drills.
• Portable Utility Pump Design: Compact and convenient for maintenance tasks in different locations.
• Garden Hose Thread Adapters: Supplied with 3/4" garden hose thread port adapters.
• Convenient Hose Connections: Kit configuration includes hose for fluid transfer applications.
• Versatile Marine Maintenance Tool: Useful for transferring manufacturer-approved fluids during boat servicing.
• No Dedicated Pump Motor Required: Uses your existing compatible electric drill for powered operation.

Ideal Applications

The Jabsco Fluid Drill Pump Kit (17250-0003) is designed for portable fluid transfer where a compact drill-powered pump is convenient.

Potential applications include:

• Boat maintenance and servicing
• Transferring compatible nonflammable fluids
• Moving water between suitable containers
• Marine equipment maintenance
• General utility fluid transfer
• Portable pumping tasks where electrical drill access is available

Always confirm fluid compatibility with Jabsco's instructions before use. Do not use the pump with gasoline or other flammable liquids unless the manufacturer explicitly approves that application.

Product Specifications

• Brand: Jabsco
• Product Name: Fluid Drill Pump Kit with Hose
• Manufacturer Part Number (MFG #): 17250-0003
• Product Type: Drill-Powered Fluid Transfer Pump
• Maximum Flow Rate: Up to 3.5 GPM
• Maximum Self-Priming Height: 3 Feet
• Drive Shaft Diameter: 1/4"
• Required Power Source: Compatible Electric Drill
• Compatible Drill Chuck Size: 1/4" to 3/8"
• Port Adapter Type: Garden Hose Thread
• Port Adapter Size: 3/4"
• Hose: Included in Kit
• Pump Operation: Drill-Powered
• Application: Portable Fluid Transfer
• Quantity Included: 1 Pump Kit

Convenient Drill-Powered Operation

The Jabsco 17250-0003 converts a compatible electric drill into a portable fluid transfer system.

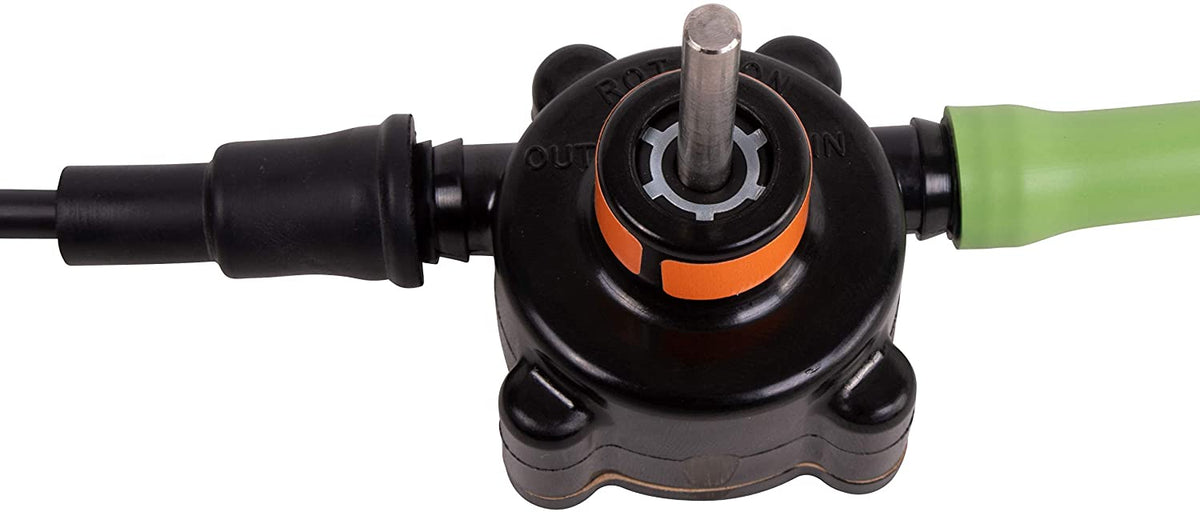

Rather than relying on a separate powered pump, the drill drives the pump through its 1/4" shaft.

This makes it convenient for boat owners and technicians who already have a suitable drill available for routine maintenance.

Always follow the manufacturer's instructions for drill speed, direction of rotation, priming, and approved fluids.

Up to 3.5 GPM Fluid Transfer

The Jabsco drill pump is rated to transfer fluid at up to 3.5 gallons per minute under appropriate operating conditions.

Actual flow will vary depending on drill speed, fluid characteristics, hose length, suction lift, and installation conditions.

Its portable design makes it a practical choice for smaller transfer jobs where a permanently installed pump is unnecessary.

Self-Priming Up to 3 Feet

The Jabsco Fluid Drill Pump features a self-priming design with a rated suction lift of up to 3 feet.

This allows the pump to draw compatible fluids from a container or reservoir located below the pump, within its operating limits.

For best performance, follow the manufacturer's instructions regarding pump preparation, hose connections, and operating conditions.

Garden Hose Thread Connections

The pump is supplied with 3/4" garden hose thread port adapters for convenient hose attachment.

These adapters help simplify connections to compatible hoses during fluid transfer tasks.

Ensure all hose fittings are securely attached and suitable for the fluid being transferred.

Portable Pump for Marine Maintenance

The compact Jabsco 17250-0003 Drill Pump Kit is a convenient maintenance accessory for boat owners who need occasional powered fluid transfer.

Because the pump operates using a separate electric drill, it can be stored between uses without requiring a dedicated powered pumping system.

Use the pump only with approved fluids and follow the manufacturer's cleaning and storage instructions to help maintain proper operation.

Frequently Asked Questions

What is the Jabsco 17250-0003 used for?

It is a portable drill-powered utility pump designed to transfer compatible fluids during marine maintenance and general utility applications.

Does the Jabsco drill pump require a separate motor?

No. It uses a compatible electric drill to power the pump.

What size drill works with this pump?

The pump is designed for an electric drill with a 1/4" to 3/8" chuck and features a 1/4" drive shaft.

How fast can the Jabsco drill pump transfer fluid?

The pump is rated for up to 3.5 gallons per minute under suitable operating conditions.

Is the Jabsco 17250-0003 self-priming?

Yes. It is rated to self-prime up to 3 feet.

Does this kit include hose connections?

Yes. The pump is supplied with 3/4" garden hose thread port adapters, and this product is sold as a kit with hose.

Can I use this pump to transfer gasoline?

Do not use the pump for gasoline or other flammable liquids unless the manufacturer explicitly approves that application.

Is the electric drill included?

No. A compatible electric drill is required and is not included.

What is the manufacturer part number?

The manufacturer part number is 17250-0003.

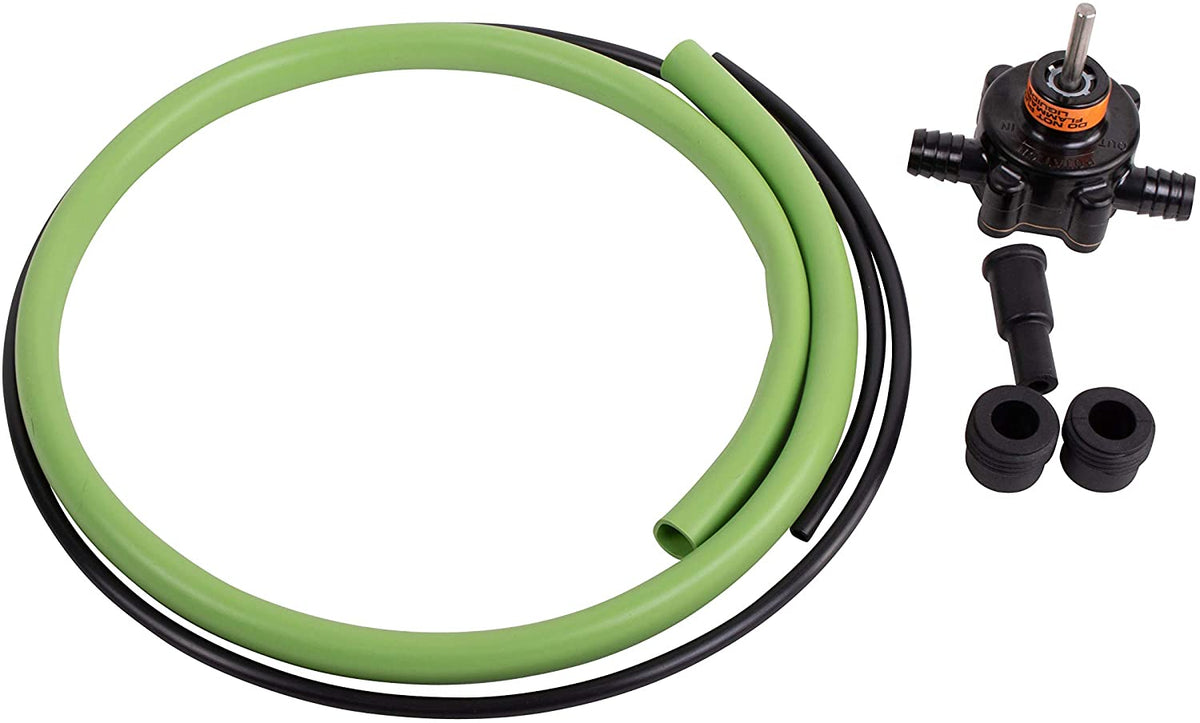

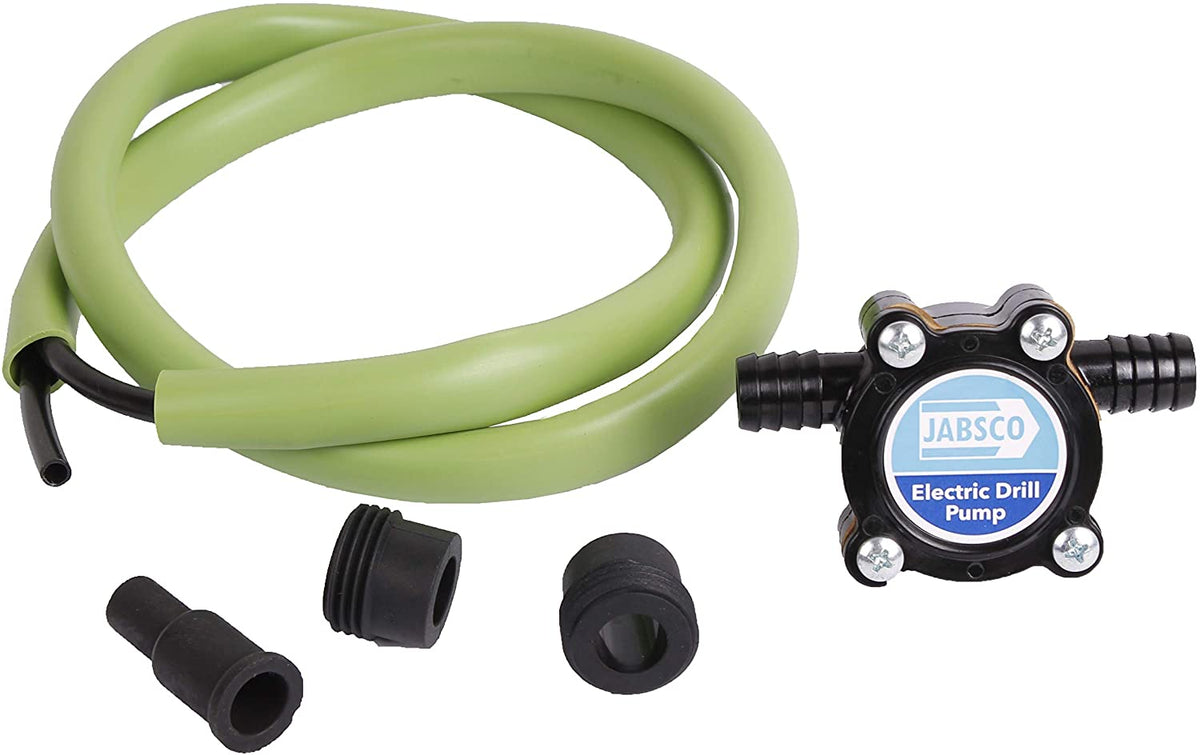

What's Included

• (1) Jabsco Drill-Powered Fluid Transfer Pump – MFG #17250-0003
• Hose supplied with the kit
• 3/4" Garden Hose Thread Port Adapters

Note: Electric drill is not included. Confirm fluid compatibility and follow Jabsco's operating instructions before use.
