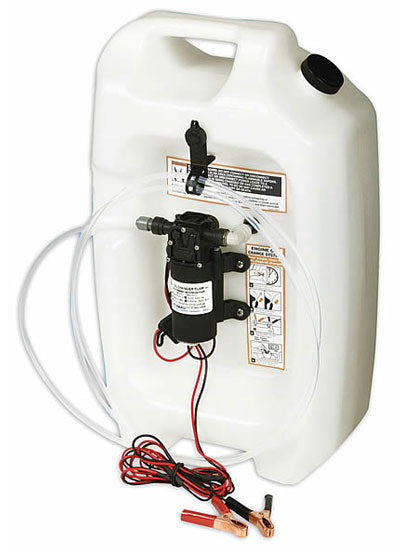

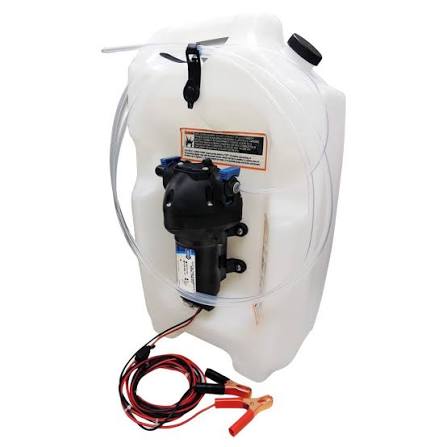

Jabsco Portable 12V Oil Change System – 3.5 Gallon Flat Tank – 17860-2012

Make boat engine oil changes faster, cleaner, and more convenient with the Jabsco Portable 12V Oil Change System (MFG #17860-2012). This portable marine oil extraction system features a powerful electric diaphragm pump mounted directly to a flat oil collection tank, providing an all-in-one solution for routine engine maintenance.

Designed to operate using your boat's 12V DC power supply, the Jabsco Flat Tank Oil Changer eliminates the need for manual pumping while collecting used engine oil in an integrated 3.5-gallon (14-quart) storage tank.

The system features a durable polypropylene pump body, oil-resistant Viton valves, and an oil-resistant Geolast diaphragm for reliable fluid transfer. An integrated power switch and 7-foot electrical leads with alligator battery clips make it convenient to connect the pump to a compatible onboard power source.

Ideal for marine engine oil changes, seasonal maintenance, and winterization, the Jabsco 17860-2012 Portable Oil Change System offers a practical way to extract and collect used engine oil without a separate collection bucket.

Key Features & Benefits

• 12V Electric Oil Change Pump: Operates using a compatible 12V DC power supply.
• 3.5-Gallon Oil Storage Tank: Integrated 14-quart collection container holds extracted engine oil.
• Powerful Diaphragm Pump: Provides convenient powered oil extraction without manual pumping.
• Flat Tank Design: Compact reservoir configuration for portable marine maintenance.
• Oil-Resistant Viton Valves: Designed for durability during oil extraction.
• Geolast Diaphragm: Oil-resistant diaphragm construction for compatible fluid transfer.
• Polypropylene Pump Body: Durable, lightweight pump construction.
• Integrated Power Switch: Convenient on/off operation.
• 7-Foot Electrical Leads: Includes alligator battery clips for connection to a compatible power source.
• Self-Contained System: Pump and collection tank are combined into one portable unit.
• Marine Maintenance Applications: Ideal for routine engine oil changes and seasonal boat servicing.

Product Specifications

• Brand: Jabsco
• Product Name: Portable Flat Tank Oil Change System
• Manufacturer Part Number (MFG #): 17860-2012
• Product Type: Portable Marine Oil Change Pump & Storage System
• Voltage: 12V DC
• Pump Type: Electric Diaphragm Pump
• Tank Capacity: 3.5 Gallons / 14 Quarts
• Container Design: Flat Plastic Storage Tank
• Pump Body Material: Polypropylene
• Valve Material: Viton
• Diaphragm Material: Geolast
• Electrical Lead Length: 7 Feet
• Electrical Connections: Alligator Battery Clips
• Power Switch: Integrated
• Primary Application: Marine Engine Oil Extraction and Collection

Convenient 12V Marine Engine Oil Changes

Changing engine oil on a boat can be challenging when access to the engine drain plug is limited.

The Jabsco 17860-2012 Flat Tank Oil Changer provides a portable powered solution for extracting used oil from compatible marine engines.

The electric diaphragm pump uses the vessel's 12V power supply to move oil into the integrated collection tank, helping reduce the need for manual pumping and separate collection containers.

This system is particularly useful for inboard-powered boats and other compatible marine engine applications where routine oil extraction is required.

Integrated 3.5-Gallon Oil Collection Tank

The Jabsco Portable Oil Change System combines its pump and storage reservoir into one convenient unit.

The 14-quart (3.5-gallon) flat plastic tank collects extracted oil during maintenance, helping keep the work area organized and reducing the need to transfer oil between multiple containers during extraction.

Its flat design provides a practical storage and handling configuration for onboard maintenance.

Used oil should be transferred to an approved recycling container and disposed of according to local regulations.

Durable Oil-Resistant Pump Components

The Jabsco Flat Tank Oil Changer is designed with components suited to compatible oil transfer applications.

The polypropylene pump body, Viton valves, and Geolast diaphragm provide oil-resistant construction for routine maintenance use.

The pump is mounted directly to the storage tank, creating a convenient self-contained oil change system.

Ideal Applications

• Inboard marine engine oil changes
• Wake boat and watersports boat maintenance
• Recreational powerboat servicing
• Marine engine winterization
• Seasonal engine oil changes
• Onboard oil extraction and collection
• Routine marine engine maintenance

Basic Operation & Maintenance

1. Follow your engine manufacturer's recommended oil change procedure.
2. Position the Jabsco oil change system on a stable surface.
3. Connect the appropriate oil extraction line according to the manufacturer's instructions.
4. Connect the electrical leads to a compatible 12V DC power source, observing correct polarity.
5. Use the integrated power switch to operate the diaphragm pump.
6. Extract the used oil into the 3.5-gallon collection tank without exceeding its capacity.
7. Turn off the pump, disconnect power, and transfer the used oil to an approved recycling container.

Important: Follow the manufacturer's instructions regarding oil temperature, pump operation, and fluid compatibility. Do not use this system for gasoline or other flammable liquids.

What's Included

• (1) Jabsco Portable Oil Change System – MFG #17860-2012
• Integrated 12V Electric Diaphragm Pump
• Integrated 3.5-Gallon / 14-Quart Flat Oil Collection Tank
• 7-Foot Electrical Leads with Alligator Battery Clips
• Integrated Power Switch
