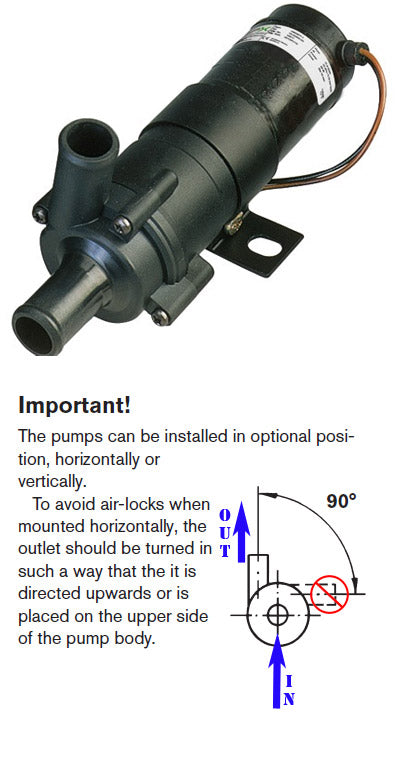

Johnson CM30 Continuous Duty In Line Circulation Pump 5/8"

Product Description:

Johnson CM-Series is a compact magnetic driven centrifugal pump which combines high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol, and salt water circulation. Primary used for ski and wakeboard boat heater systems to help circulate hot water to the heater core in turn making the heater produce hotter air at a lower RPM.

CM30P7-1 Product Specs:

• 5/8" inlet and outlet Fittings (Hose size used on Heatercraft heater systems)
• Extra Heavy Duty construction - Glass reinforced Plastic
• Stainless Steel Shaft & Wear Plate
• Motors designed for continuous operation
• Magnetically driven
• Suitable for fresh water, ethylene glycol and salt water circulation
• 12 V or 24 V DC enclosed permanent magnet, ball bearing mounted for continuous operation
• Works with Liquid temperatures: -30°C – +100°C (-22°F – 212°F)
• 6.9 GPM with 3.3ft of Head Pressure
• 5.2 GPM with 6.6 of Head Pressure
• Recommended Fuse Size for 12v is a 3.0 Amp Fuse
• Includes Bracket
• Pump Does not include mounting screws for the bracket, hose clamps or electrical connections (Sold Separate)

Media Library:

• Pump Manual (PDF)
