Malibu Boats Prop Shaft 1-1/8 x 47.5" Walters Coupler

Malibu Boats Prop Shaft 1-1/8 x 47.5" Walters Coupler. When ordering a shaft we suggest you physically verify all measurements since the shafting can vary with different engine models. Different model engines create shaft length changes and coupler changes. If you are having trouble figuring out what the right shaft is for your boat please contact us with your HIN (Hull ID Number) and we would be happy to help.

Product Specs:

• Factory Shaft & Coupler used on Malibu Boats & Many other Ski & wakeboard boat manufacturers
• Double Tapered Stainless Steel Shaft
• Walters Coupler is Gold Colore
• Lines Machined into the body of the coupler identify shaft size. NO Grove = 1" Diameter Shaft & One Grove = 1-1/8" Diameter Shaft
• Walters Coupler has Four 3/8" BoltMounting Holes
• Walters Coupler Bolt Spacing Measures Diagonally Across the Face Center on Center 2-7/8"
• Assembly Comes with all new keys, nuts, and cotter pins.

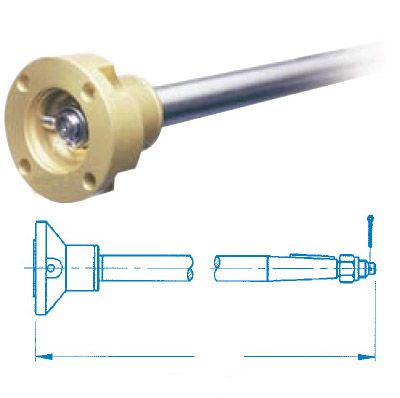

Note: When measuring assembled length, make sure to measure from the face of the coupler flange (seated all the way on the shaft) to the end of the shaft as depicted in the photo
