Malibu & Axis Sherwood Impeller Kit – M5/M6 Engines (2018–Mid 2021)

Keep your Malibu or Axis wake boat's engine cooling system operating properly with the Sherwood Raw Water Pump Impeller Service Kit. Designed for select 2018 through mid-2021 Malibu Boats and Axis Wake models equipped with M5 or M6 engines, this kit provides the essential components needed to service the original Sherwood raw water pump.

The raw water pump impeller plays a critical role in circulating cooling water through your boat's engine. Over time, impeller blades can wear, crack, or lose flexibility, potentially reducing water flow and increasing the risk of engine overheating.

This replacement kit services Sherwood pumps G1502, G1503, G1503-01, G1503-02, and G1503-03 and replaces Malibu part number E100090.

Important Fitment Note: This kit is intended for boats that still have the original Sherwood raw water pump. If your Malibu or Axis has been upgraded to a Johnson pump, use the Johnson 09-707B-1 impeller kit instead. Verify the pump manufacturer before ordering.

Key Features & Benefits

• Malibu & Axis M5/M6 Compatibility: Designed for select 2018–mid-2021 boats with the original Sherwood pump.
• Raw Water Pump Maintenance: Helps restore proper cooling water flow through compatible engine cooling systems.
• OEM Replacement: Replaces Malibu part #E100090.
• Sherwood Pump Compatibility: Fits G1502, G1503, G1503-01, G1503-02, and G1503-03.
• Additional Part Cross-References: Replaces Sherwood 15000K, SCP-15000K, Cummins 3349198, and MerCruiser 47-855126 in compatible applications.

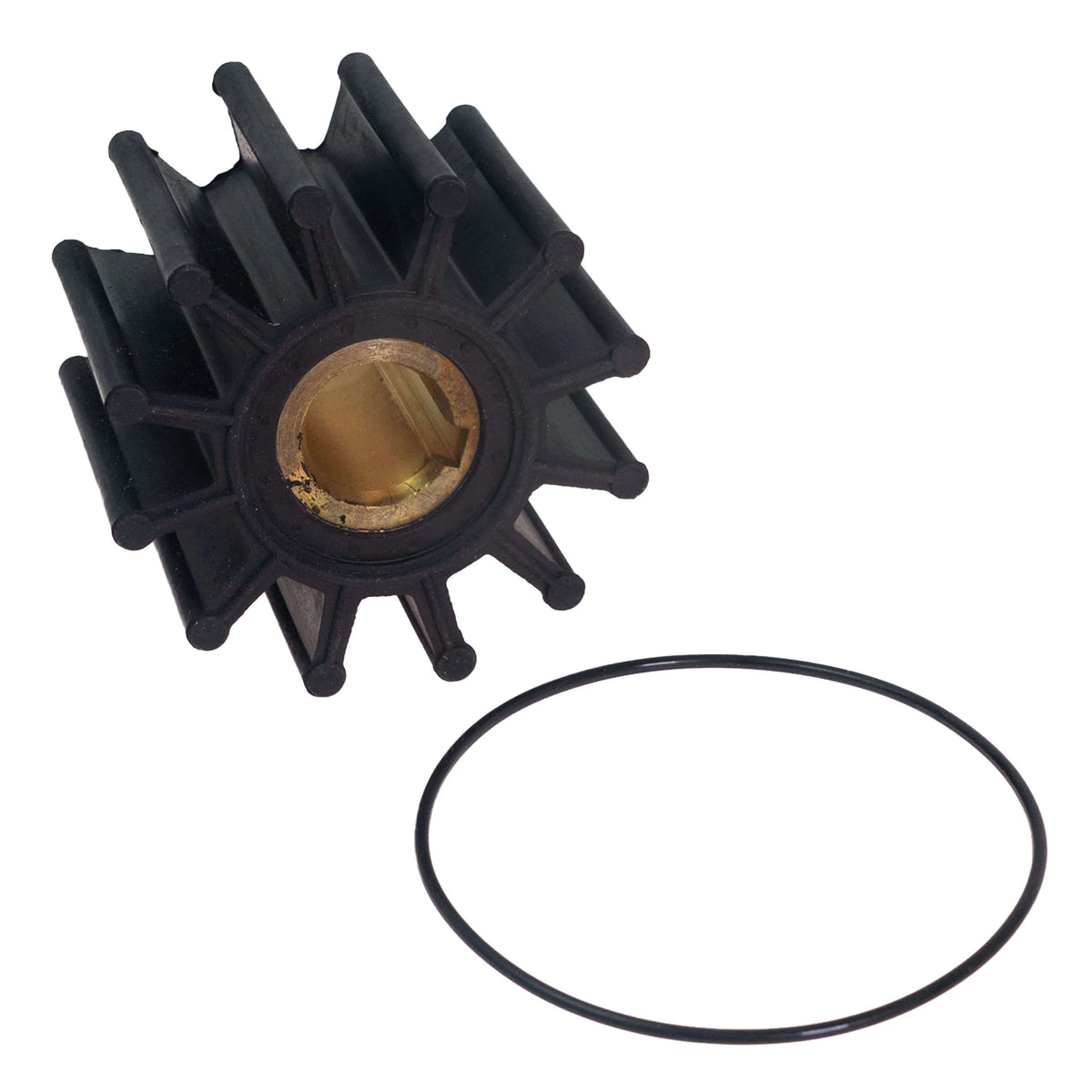

• 12-Blade Impeller: Designed for the specified Sherwood pump configurations.
• MC97 Compound: Manufactured from MC97 impeller material.
• Key-Slotted Design: Designed for the corresponding keyed pump shaft.
• Complete Service Kit: Includes impeller, O-ring, gasket, lubricant, cover screws, and installation instructions.
• Recommended Maintenance Interval: Replace every 100 engine hours or annually, whichever comes first.

Product Specifications

• Product Name: Malibu & Axis Sherwood Impeller Service Kit
• Product Type: Marine Raw Water Pump Impeller Kit
• Malibu Replacement Part Number: E100090
• Engine Compatibility: Select Malibu M5 and M6 Engines
• Boat Compatibility: Select 2018–Mid 2021 Malibu & Axis Models
• Pump Manufacturer: Sherwood
• Compatible Pump Models: G1502, G1503, G1503-01, G1503-02, G1503-03
• Impeller Diameter: 2-9/16"
• Impeller Depth: 2"
• Number of Blades: 12
• Impeller Compound: MC97
• Shaft Connection: Key-Slotted
• Recommended Service Interval: 100 Hours or Annually

Compatible Malibu & Axis Applications

This Sherwood impeller kit is designed for select 2018–mid-2021 Malibu Boats and Axis Wake boats equipped with M5 or M6 engines that retain their original Sherwood raw water pump.

Compatible Sherwood pump models include:

• G1502
• G1503
• G1503-01
• G1503-02
• G1503-03

Pump identification is essential. Some boats within this production range may have had their original Sherwood pump replaced with a Johnson pump. The two pump designs require different impellers.

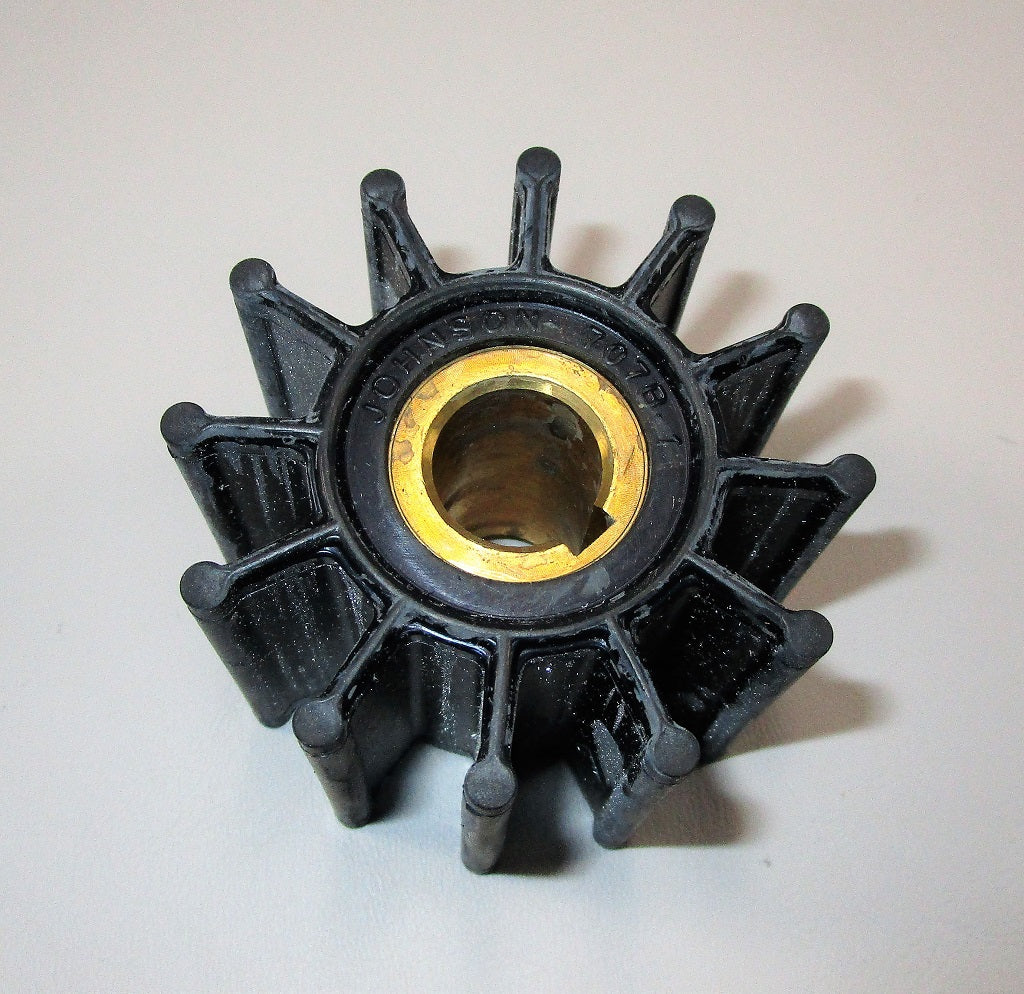

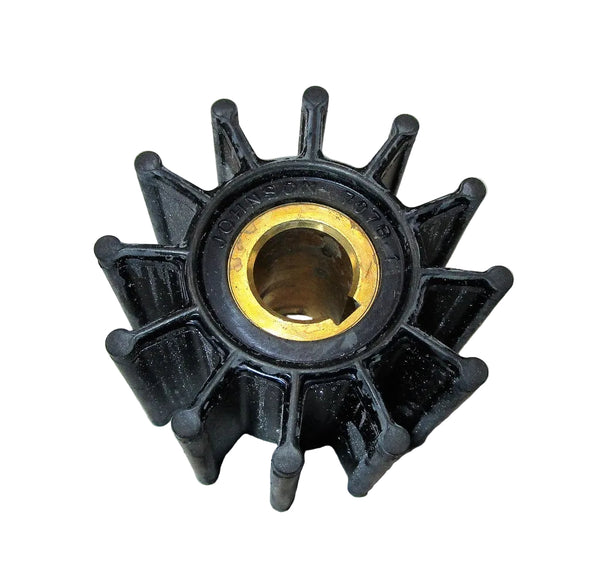

If your boat has the replacement Johnson pump, order Johnson impeller kit 09-707B-1 instead.

Replacement Part Number Cross-References

This impeller kit replaces the following part numbers in compatible pump applications:

• Malibu E100090
• Sherwood 15000K
• Sherwood SCP-15000K
• Cummins 3349198
• MerCruiser 47-855126

Always verify your existing pump model and impeller specifications before ordering.

Why Replace Your Raw Water Pump Impeller?

The raw water pump draws water into the engine cooling system to help regulate operating temperature.

As the rubber impeller ages, its blades may become worn, brittle, or damaged. A failing impeller can restrict cooling water flow and contribute to engine overheating.

For reliable performance, service the impeller every 100 engine hours or once per year, whichever comes first, following the applicable engine manufacturer's maintenance instructions.

Regular impeller maintenance is particularly important for wake boats that operate frequently during the boating season.

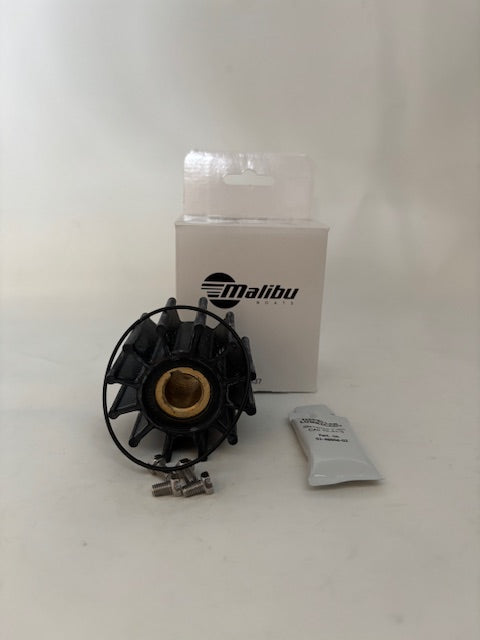

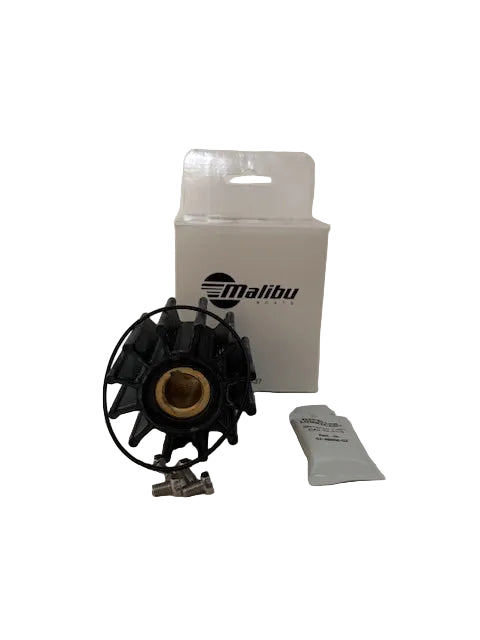

What's Included

• (1) Sherwood Raw Water Pump Impeller
• (1) O-Ring
• (1) Paper Gasket
• (1) Silicone Installation Lubricant
• (4) Pump Cover Plate Screws
• (1) Installation Manual
