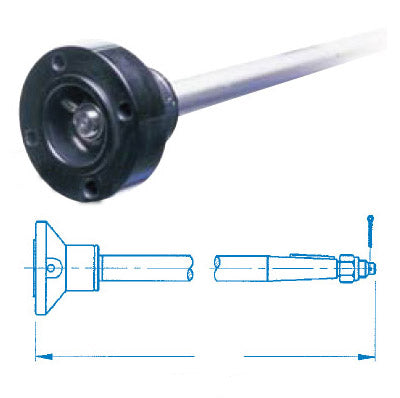

Marine Hardware 1-1/8" Custom Prop Shaft & SkiVee V-Drive Coupler

Product Description:

When replacing a shaft, we recommend replacement with a factory assembled shaft - coupler set. Marine Hardware assemblies are precision bored, honed, faced, straightened, and balanced to ensure concentricity and reduce vibration and shaft whip. Materials are the highest quality available in the industry, and all machining meets or exceeds ABYC standards. Our assemblies are shipped complete with all keys, nuts, and cotter pin.

Please follow directions on how to measure the shaft length in the attached photos. This is a cut to length, special order item made to your specifications. No returns are accepted on this item. Please expect 3-4 business days prior to shipping for the cutting /assembly of the shaft.

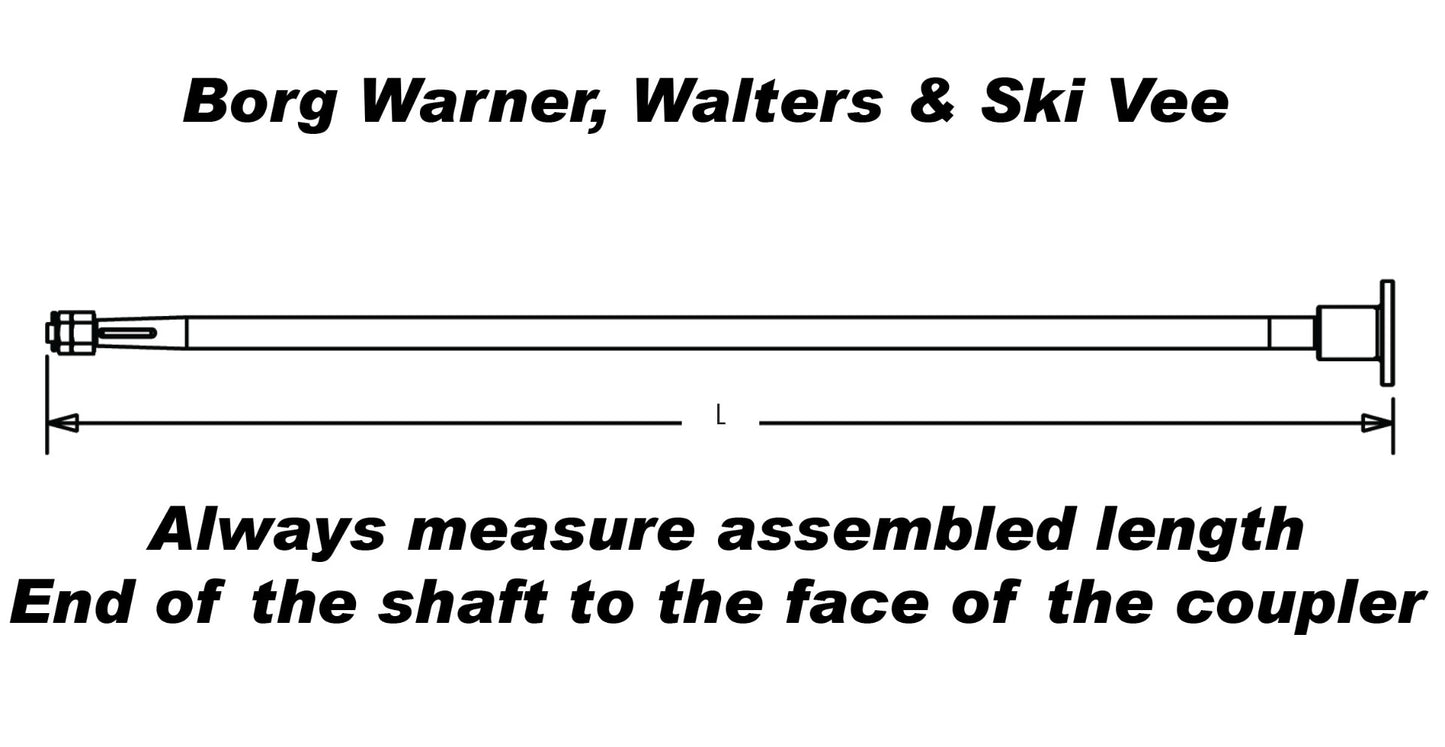

When measuring assembled length, make sure to measure from the face of the coupler flange (seated all the way on the shaft) to the end of the shaft as depicted in the photo. Do not guess or try to measure the shaft while still in the boat as it will result in an inaccurate measurement.

Product Specs:

• Factory Shaft & Coupler used on Malibu Boats & Many other Ski & wakeboard boat manufactures
• Double Tapered Stainless Steel Shaft
• SkiVee Coupler is Anodized a Gray Color for easy Identification
• Lines Machined into the body of the coupler identify shaft size. 1 Grove = 1" Diameter Shaft & 2 Groves = 1-1/8" Diameter Shaft
• SkiVee Coupler has Four 7/16" Mounting Holes
• SkiVee Coupler Bolt Spacing Measures Diagonally Across the Face Center on Center 3-1/4"
• Assembly Comes with all new keys, nuts, and cotter pins.
• Please expect 3-4 business days prior to shipping for the cutting /assembly of the shaft.
• THIS IS A CUT TO LENGTH - SPECIAL ORDER ITEM, NO RETURNS ACCEPTED
• Pricing is good for shafting up to 55" inches, Over that there will be an additional charge for the shaft & shipping that will be calculated before shipping.

Note: When measuring assembled length, make sure to measure from the face of the coupler flange (seated all the way on the shaft) to the end of the shaft as depicted in the photo
