Marine Hardware 1" Custom Prop Shaft & 4" Borg Warner Coupler

Sku: PSAT1.00X**.**BW4
Out of stock
Regular price
$465.00
Regular price
Sale price
$465.00
Shipping calculated at checkout.

Description

Caret Down

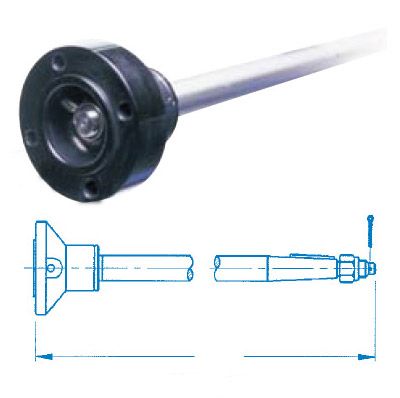

When replacing a shaft, we recommend replacement with a factory assembled shaft - coupler set. Marine Hardware assemblies are precision bored, honed, faced, straightened, and balanced to ensure concentricity and reduce vibration and shaft whip. Materials are of the highest quality available in the industry, and all machining meets or exceeds ABYC standards. Our assemblies are shipped complete with all keys, nuts, and cotter pin.

Please follow directions on how to measure the shaft length in the attached photos. This is a cut to length, special order item made to your specifications. No returns are accepted on this item. Please expect 3-4 business days prior to shipping for the cutting /assembly of the shaft.

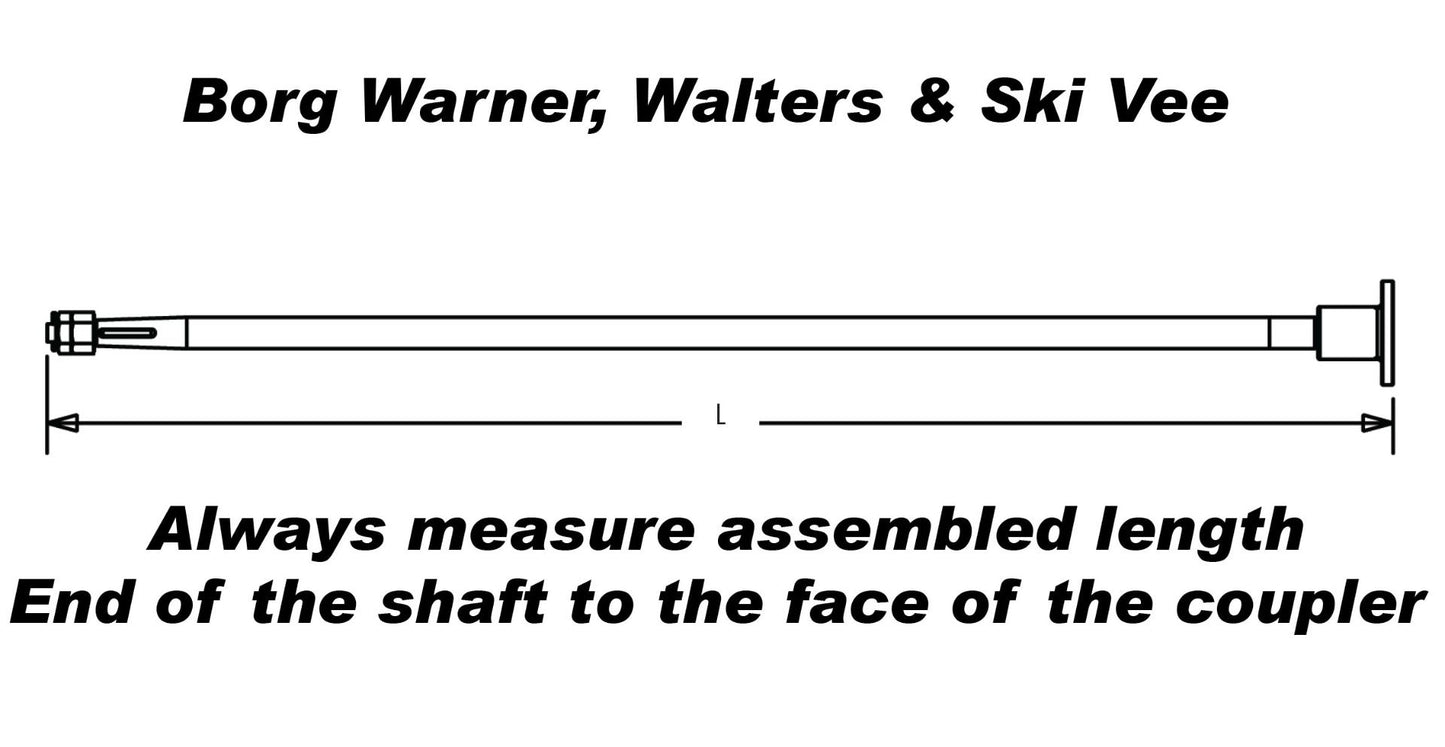

When measuring assembled length, make sure to measure from the face of the coupler flange (seated all the way on the shaft) to the end of the shaft as depicted in the photo. Do not guess or try to measure the shaft while still in the boat as it will result in an inaccurate measurement.

Product Specs:

  • 1" inch shaft - Common on Malibu Boats Mid model year 1993 and older Boats such as the Malibu Sunsetter, Euro Sunsetter, and Malibu Echelon
  • Factory Shaft & Coupler used on Malibu Boats & Many other Ski & wakeboard boat manufactures
  • Double Tapered Stainless Steel Shaft
  • Borg Warner Coupler is Anodized Black for easy identification
  • Lines Machined into the body of the coupler identify shaft size. 1 Grove = 1" Diameter Shaft & 2 Groves = 1-1/8" Diameter Shaft
  • Borg Warner Coupler has Four 3/8" Mounting Holes
  • Borg Warner Coupler Bolt Spacing Measures Diagonally Across the Face Center on Center 3-1/4"
  • Borg Warner Coupler Face Diameter Measures 4" inches Outside Diameter.
  • Assembly Comes with all new keys, nuts, and cotter pins.
  • THIS IS A CUT TO LENGTH - SPECIAL ORDER ITEM, NO RETURNS ACCEPTED
  • Pricing is good for shafting up to 55" inches, Over that there will be an additional charge for the shaft & shipping that will be calculated before shipping.

Note: When measuring assembled length, make sure to measure from the face of the coupler flange (seated all the way on the shaft) to the end of the shaft as depicted in the photo

Reviews

Caret Down

More Information

Caret Down

GTIN

Manufacturer

Marine Hardware

Manufacture part number

PSAT1.00X**.**BW4

Weight

15.0

Country of Manufacture

United States
