Power Wedge Actuator 5 Lobe Malibu Boats 2006-2014

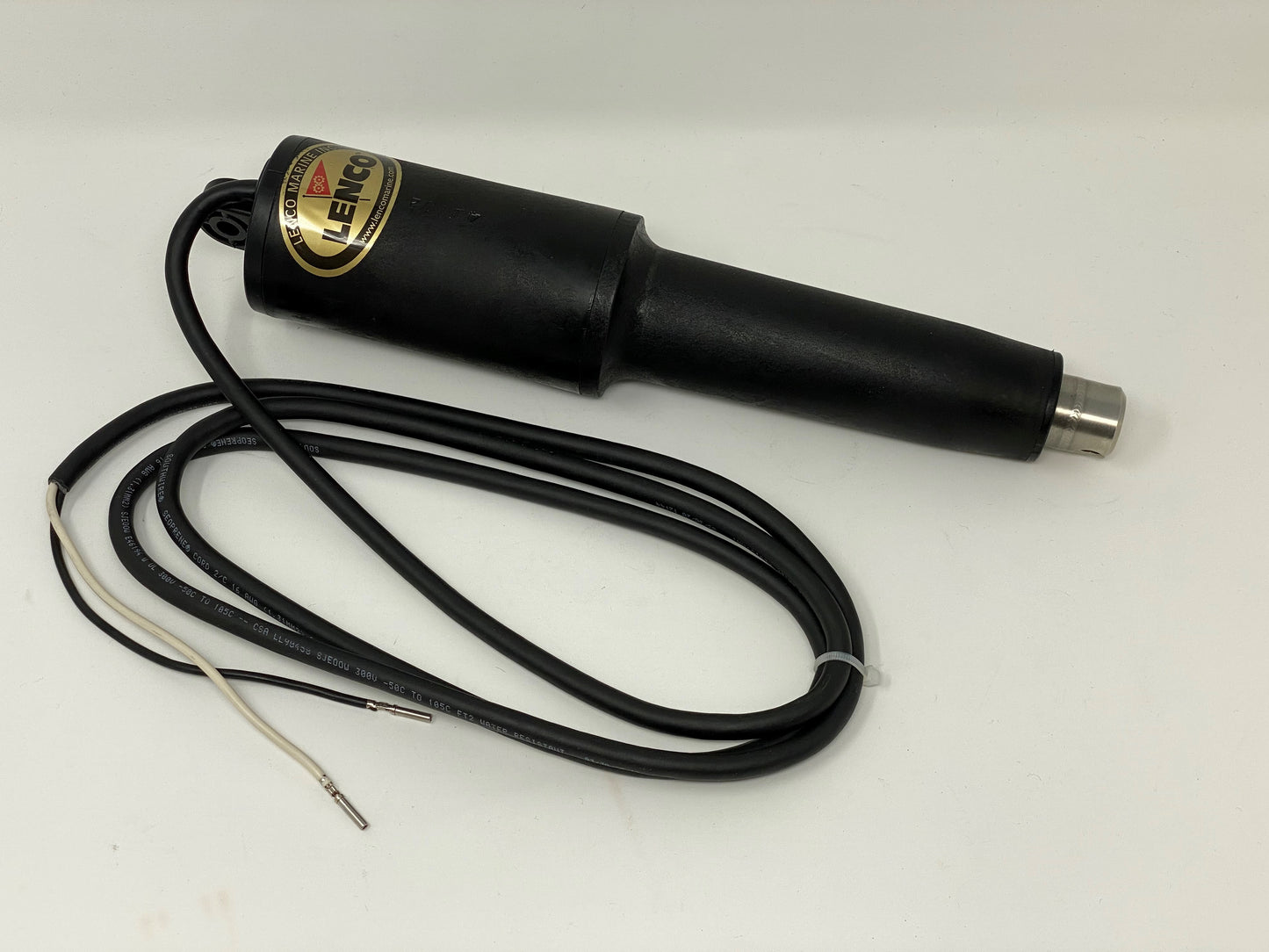

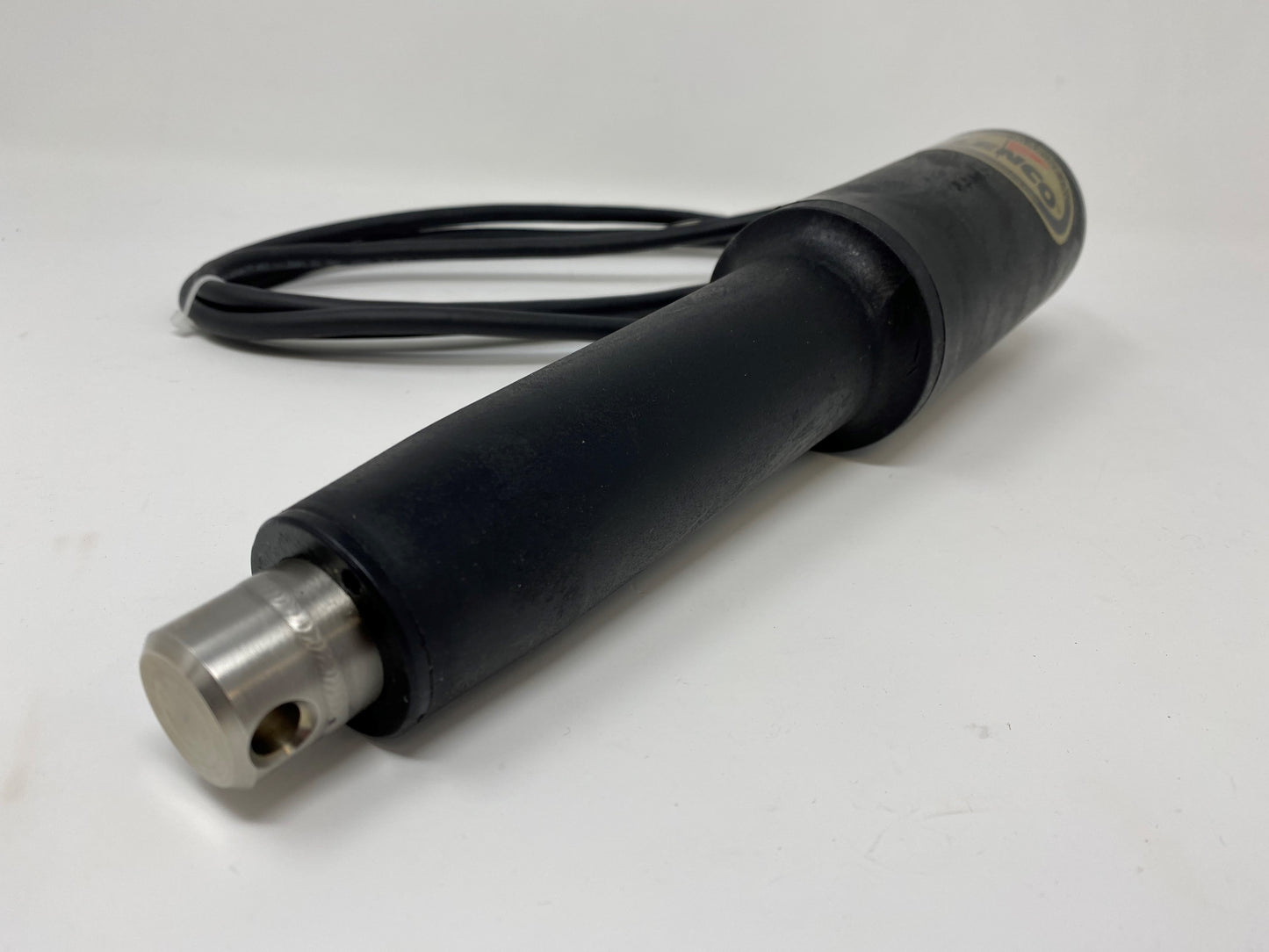

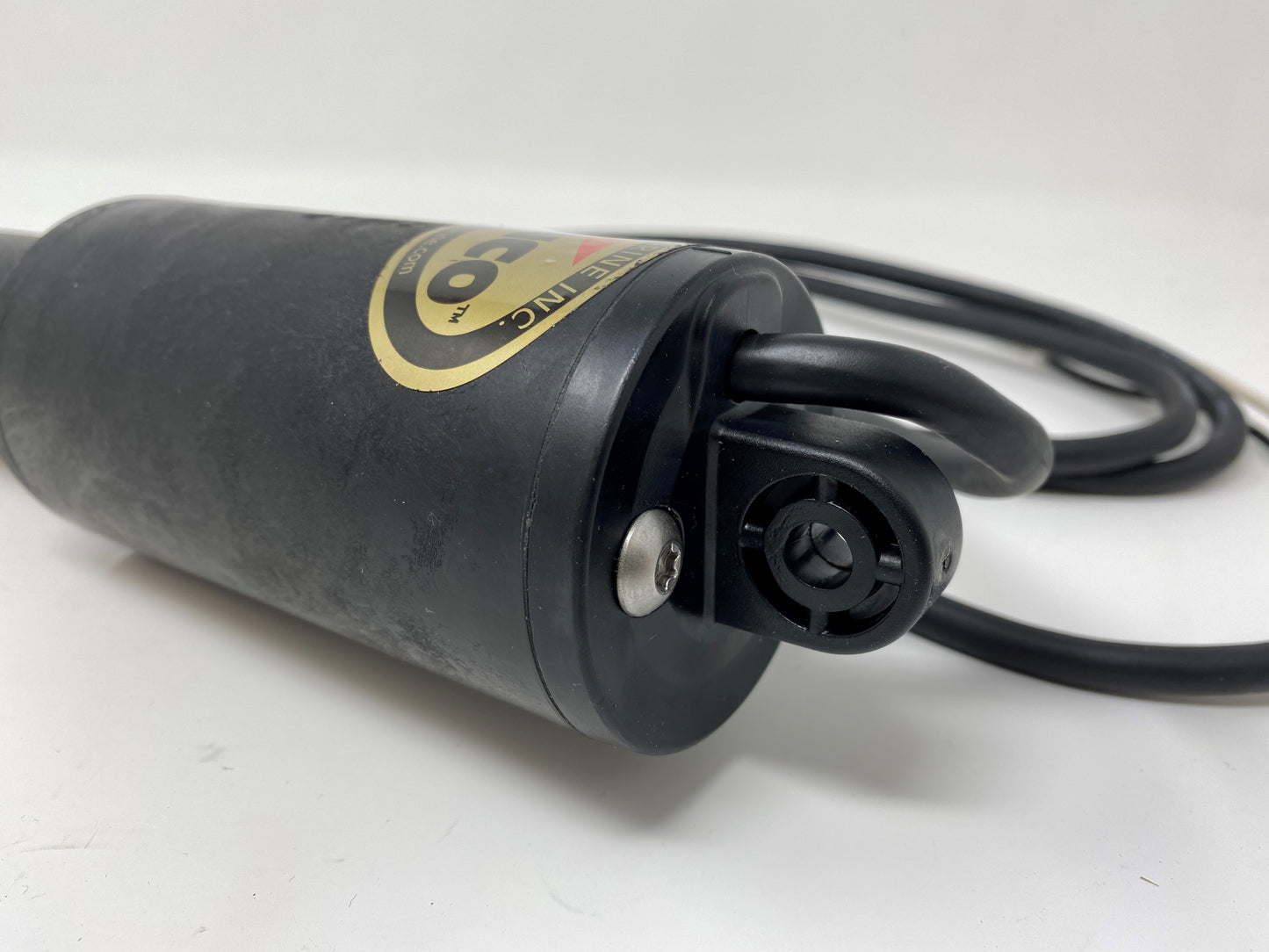

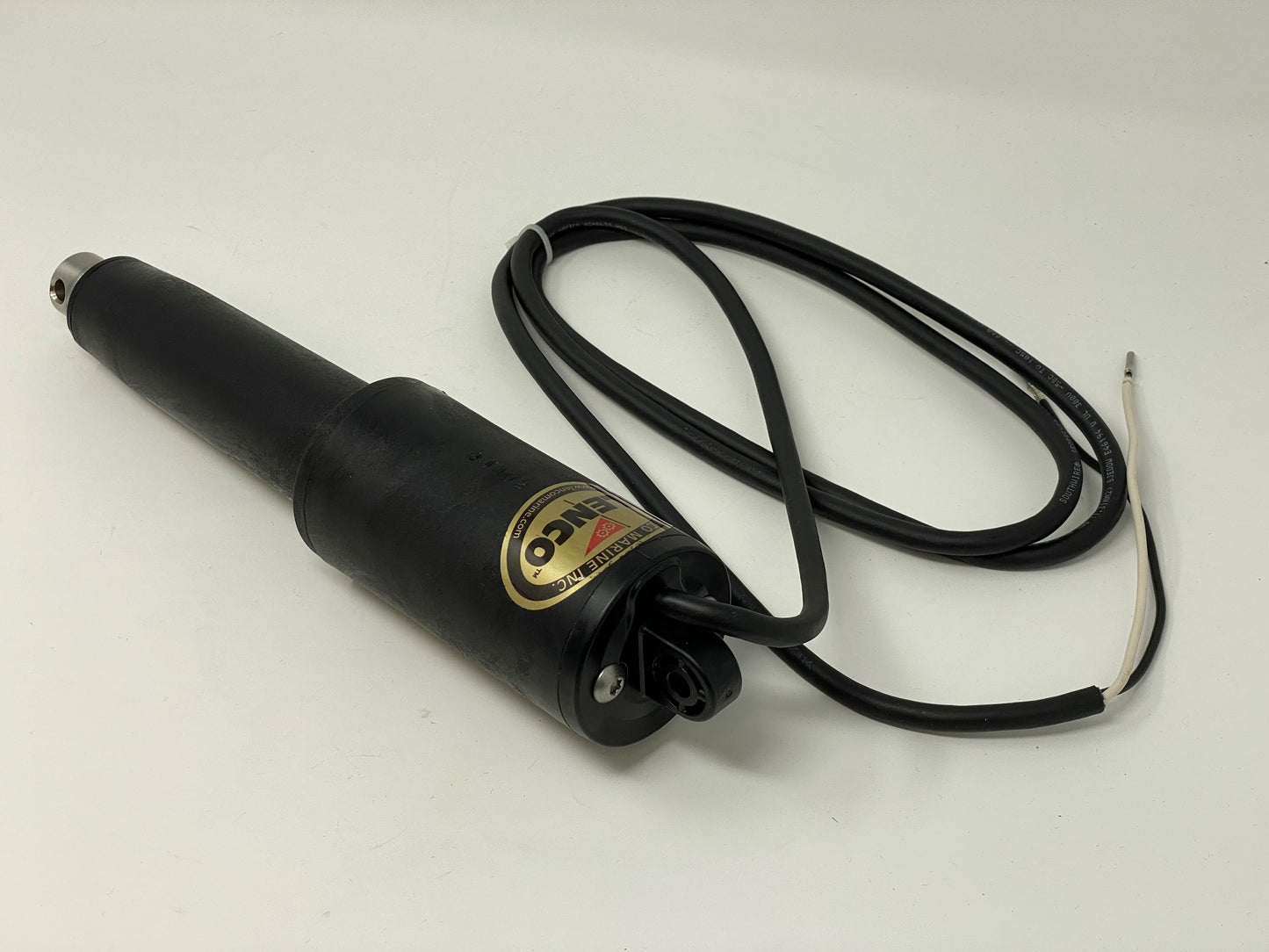

Malibu Power Wedge Actuator – OEM Replacement (Part #5615008)

Restore full functionality to your Malibu Boats Power Wedge system with this OEM Power Wedge Actuator (Part #5615008). Designed specifically for Malibu boats equipped with the Power Wedge, this actuator converts commands from the wedge control system into precise mechanical movement to raise and lower the wedge.

This is the only correct replacement actuator available for Malibu Power Wedge systems and is engineered to work with 2006–2014 Malibu models. Unlike aftermarket options, this actuator is built specifically for the Malibu wedge system and ensures proper performance and reliability on the water.

This updated 5-lobe actuator design replaces all previous versions, making it the standard replacement for earlier Power Wedge actuators.

Product Specifications

• Malibu Boats Part Number: 5615008
• OEM Replacement: Direct factory replacement for Malibu Power Wedge actuators
• Actuator Type: 5-Lobe Actuator
• Compatibility: Malibu Boats equipped with Power Wedge (approx. 2006–2014)

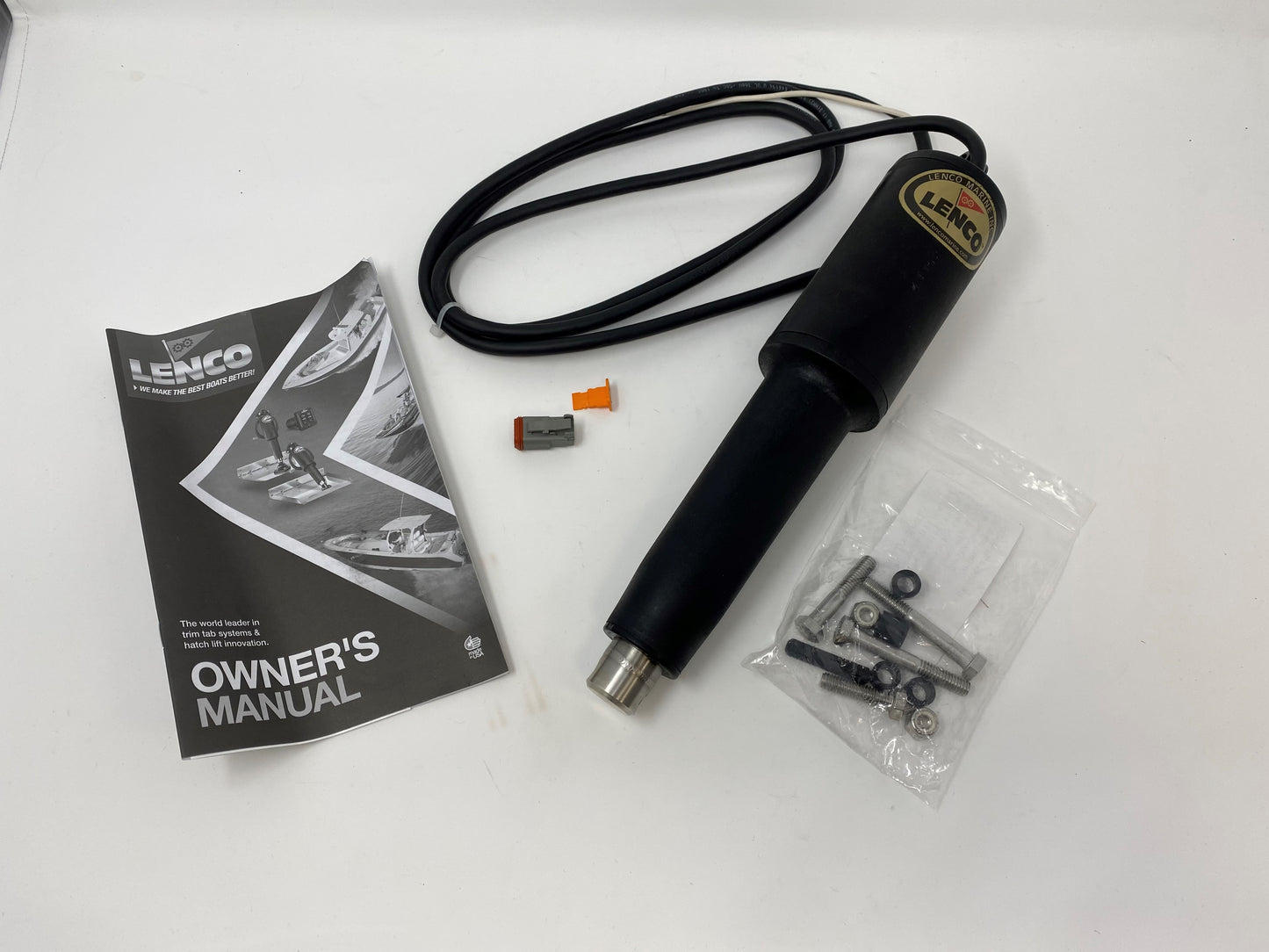

• Installation: Sold individually (Qty 1 = one actuator)

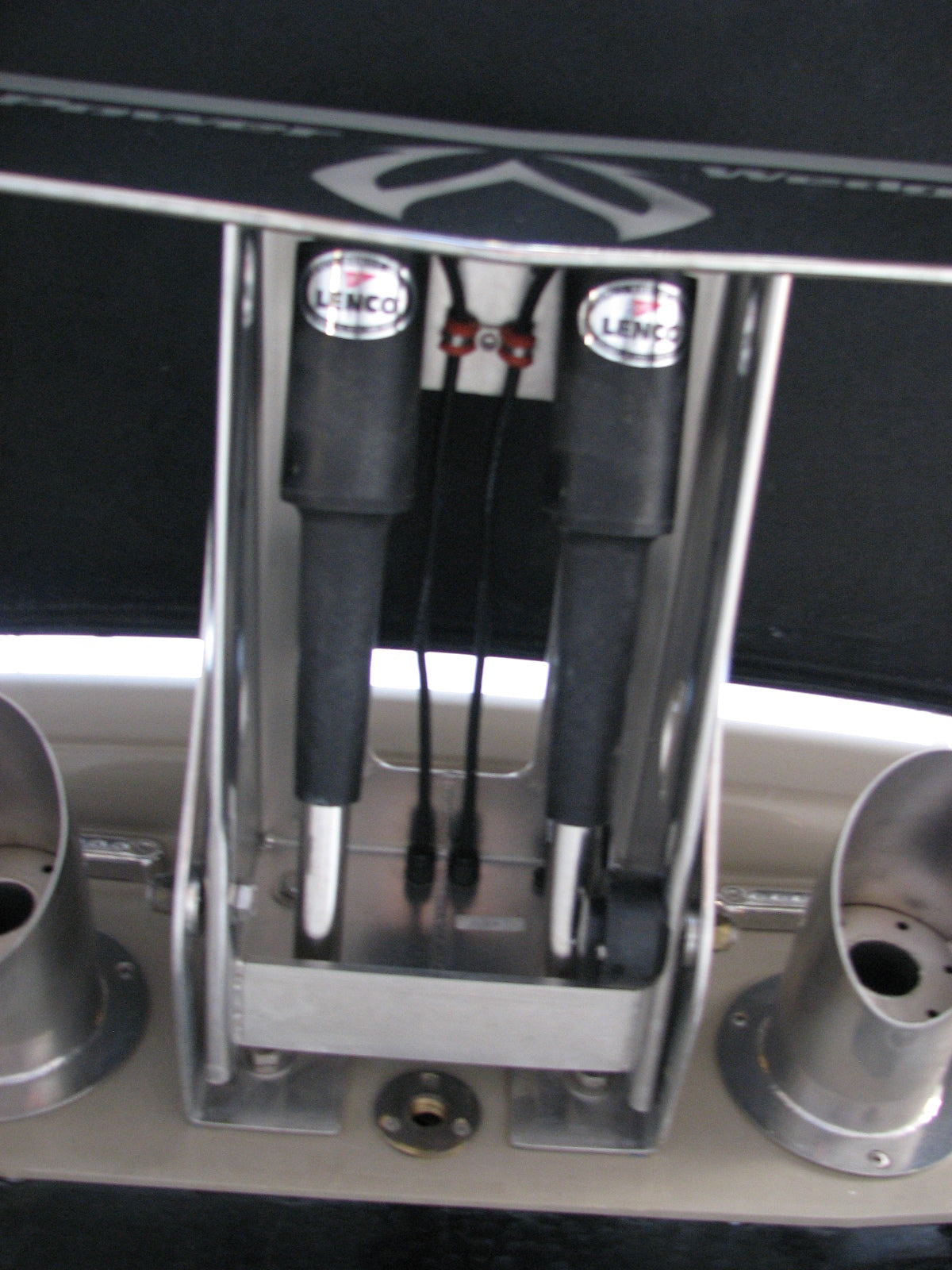

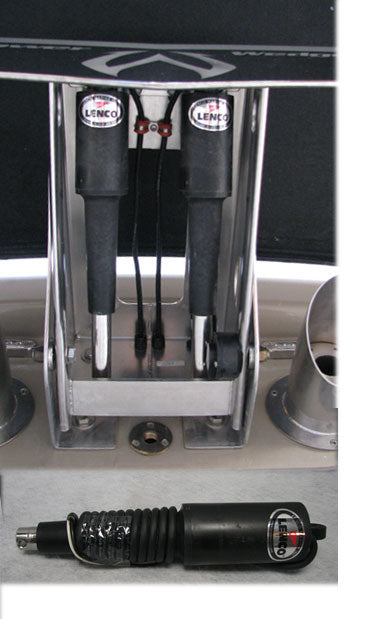

• System Requirement: The Power Wedge system uses two actuators total

Installation Recommendation

For best performance, it is strongly recommended to replace both actuators simultaneously. If one actuator has failed, the second actuator is often worn or nearing failure as well. Installing a new actuator alongside an older, worn unit can lead to uneven load and may damage the new component.

Compatibility Notes

Some 2006–2011 Malibu boats originally used a 3-lobe actuator design. This updated 5-lobe actuator is the only replacement currently available.

• Many customers have successfully installed the 5-lobe actuator on older systems with no operational issues.
• In some cases, the wedge position gauge may display inaccurately, although the Power Wedge will still function normally.
• In rare situations, upgrading the wedge control box may be required for full compatibility. However, control boxes are no longer available from the manufacturer.

Resource Library:

Helpful documents for installation and troubleshooting:

• Calibration Instructions (PDF)
• Power Wedge Diagnostic Manual (PDF)
