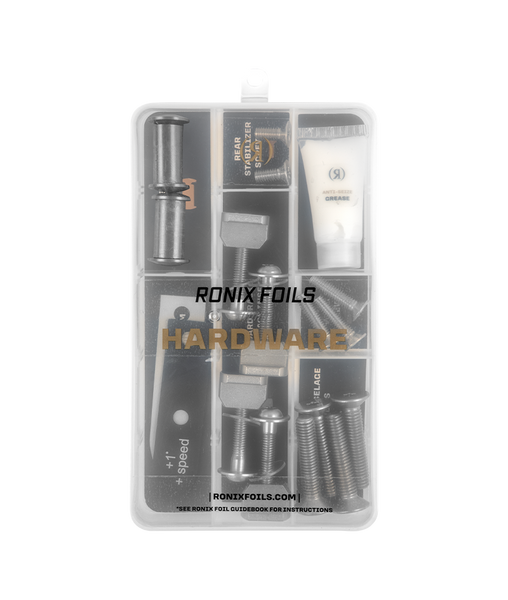

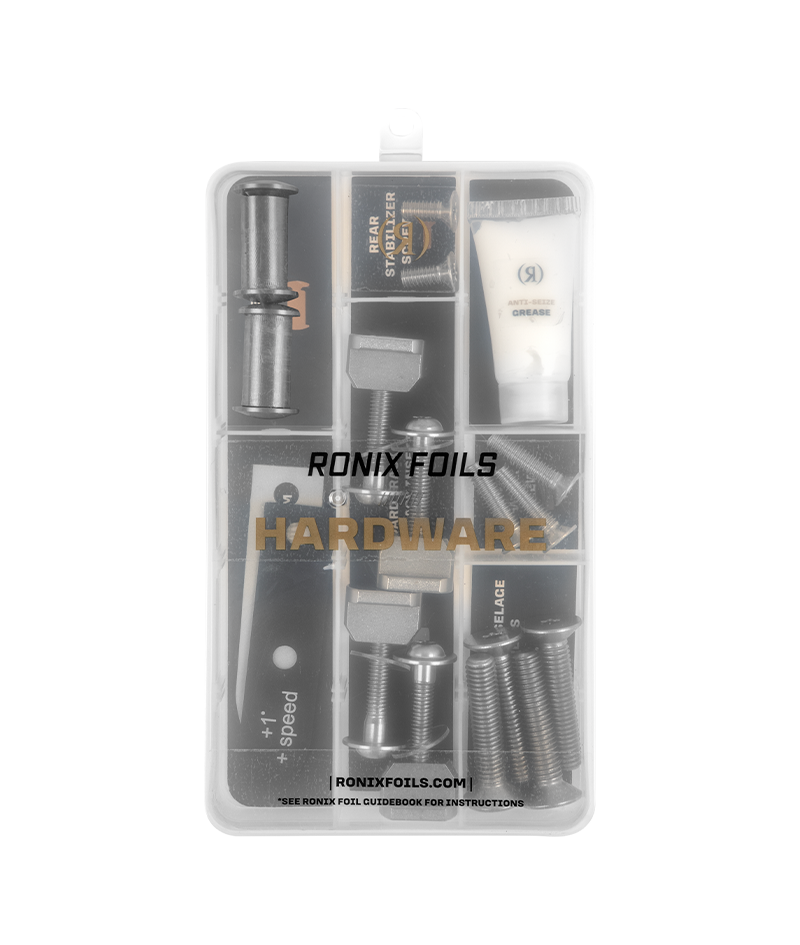

Ronix Complete Foil Hardware Kit with Case – Shift Mast

Replacement Foil Hardware. Organized Storage. Everything in One Kit.

Keep your Ronix wake foil equipment organized and ready for assembly with the Ronix Complete Foil Hardware Kit with Case – Shift Mast, a comprehensive replacement hardware set designed for compatible Ronix hydrofoil systems.

This kit includes the specialized mounting screws, track inserts, adjustable mast hardware, anti-seize grease, and Torx T30 tool used to assemble and maintain a Ronix foil setup.

Whether you're replacing lost hardware, servicing your foil, or keeping a spare hardware kit available, this package provides the essential fasteners and installation accessories in one convenient storage case.

The included foil hardware case features labeled compartments, making it easier to organize screws and identify the correct components during assembly.

For added protection, the kit includes anti-seize grease, which is applied to appropriate threaded connections before assembly to help reduce the risk of metal components seizing together.

A stainless steel Torx T30 T-handle tool is also included for use with the Ronix foil hardware.

Designed for Ronix's adjustable Shift Mast system, this hardware package is also compatible with complete Ronix Fluid 24" and 28" foil kits. When used with a Fluid Mast, the adjustable mast side inserts and screws are not needed.

Please Note: This hardware kit is already included with complete Ronix foil packages. This listing is intended for replacement or spare hardware needs.

Key Features & Benefits

• Complete Ronix Foil Hardware Kit: Includes mounting screws and inserts for compatible Ronix foil assemblies.
• Designed for the Shift Mast: Includes specialized side inserts and screws for the adjustable Ronix Shift Mast.
• Compatible With Fluid Mast Kits: Can also be used with Ronix Fluid 24" and 28" foil setups.
• Labeled Hardware Case: Organized compartments help keep screws and accessories separated.
• Anti-Seize Grease Included: Helps reduce the risk of threaded metal components seizing together.
• Torx T30 T-Handle Tool: Included stainless steel T-handle tool for Ronix foil hardware.
• Front Wing Mounting Screws: Three M6 x 25mm countersunk screws.
• Rear Stabilizer Screws: Two M6 x 15mm countersunk screws.
• Foilboard Track Hardware: Four M6 x 40mm truss head screws with track inserts.
• Mast and Fuselage Hardware: Four M8 x 40mm countersunk screws for specified mounting locations.
• Replacement or Spare Parts: Convenient for riders maintaining an existing Ronix foil system.

Complete Hardware Kit Contents

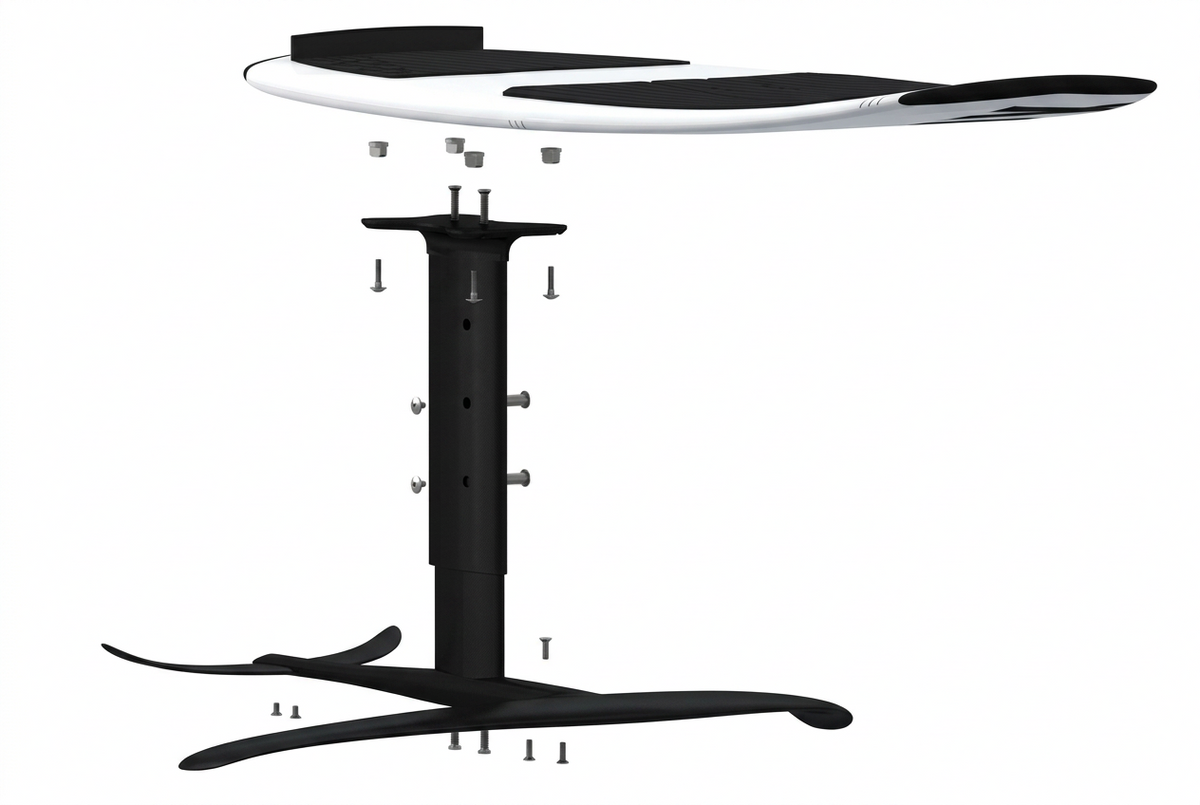

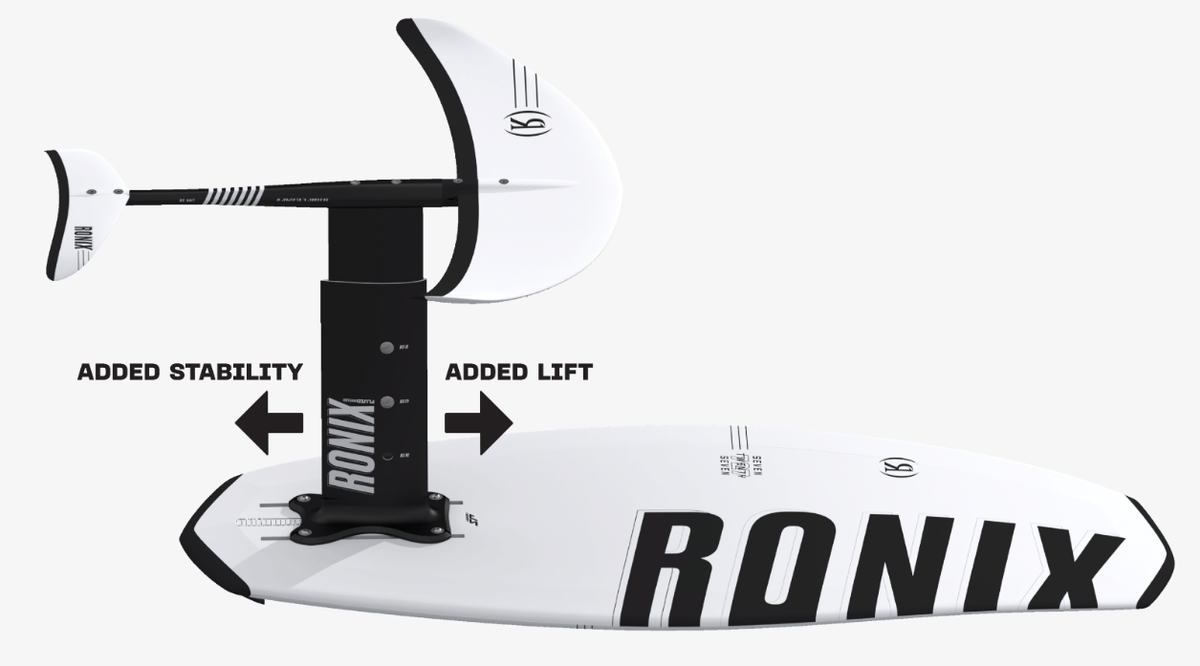

Designed for the Ronix Adjustable Shift Mast

The Ronix Shift Mast uses specialized side inserts and screws to support its adjustable mast system.

This hardware kit includes two sets of customized Torx T30 side inserts and screws for the Shift Mast, along with the mounting fasteners used throughout the foil assembly.

For riders who frequently adjust their mast height or maintain their foil equipment, having a complete spare hardware kit can help reduce downtime caused by misplaced components.

Compatible With Ronix Fluid 24" and 28" Foil Kits

Although this kit is configured for the adjustable Shift Mast, Ronix states that the hardware can also be used to mount complete Fluid 24" and Fluid 28" foil kits.

When using the hardware with a Fluid Mast, the Shift Mast-specific side inserts and screws will remain unused.

This makes the kit a versatile replacement option for riders using compatible Ronix foil systems.

Torx T30 Mounting Hardware

The kit includes multiple screw sizes designed for specific foil mounting locations.

Front Wing Hardware

Three M6 x 25mm Torx T30 countersunk screws are provided for the front wing connection.

Rear Stabilizer Hardware

Two M6 x 15mm Torx T30 countersunk screws are included for the rear stabilizer.

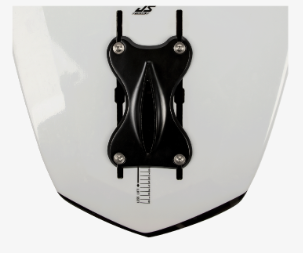

Foilboard Track Hardware

Four M6 x 40mm Torx T30 truss head screws and four matching track inserts are included for securing the mast top plate to the foilboard.

Mast and Fuselage Hardware

Four M8 x 40mm Torx T30 countersunk screws are provided for the specified mast top plate and fuselage-to-mast mounting locations.

Adjustable Mast Hardware

Two customized Shift Mast side insert-and-screw sets are included for the adjustable mast system.

Always match each screw to its intended mounting location and follow the applicable Ronix assembly instructions.

Anti-Seize Grease Included

Foil assemblies contain metal components and threaded connections that may be exposed to water during use.

The included anti-seize grease is intended for appropriate threaded connections before assembly to help prevent metal components from seizing together.

Apply the product according to Ronix's assembly instructions, and inspect mounting hardware regularly.

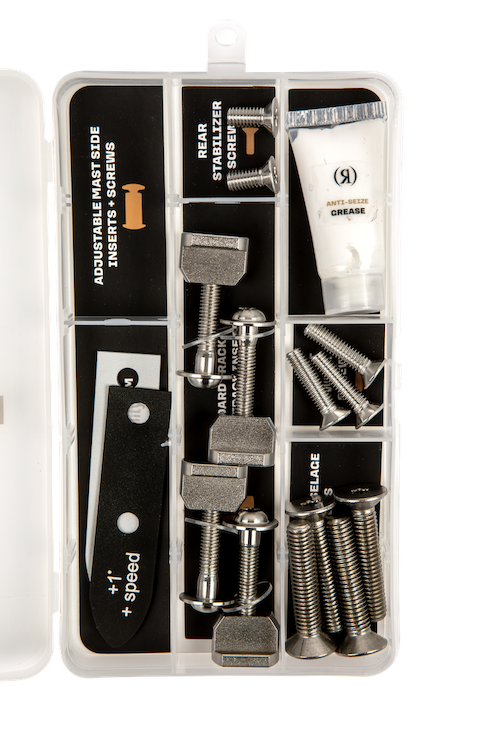

Organized Foil Hardware Storage Case

The included Ronix Foil Hardware Case features labeled compartments to help organize the different screw sizes, inserts, and accessories.

Keeping your hardware separated and clearly identified makes assembly, disassembly, and routine maintenance more convenient.

The case is also useful for storing spare hardware between sessions.

Stainless Steel Torx T30 T-Handle Tool

The included Torx T30 T-handle tool is designed for use with Ronix foil mounting hardware.

Its stainless steel construction and corrosion-resistant handle make it a practical addition to your foil maintenance equipment.

Use the tool with the appropriate fasteners and follow manufacturer tightening specifications.

Who Is This Hardware Kit For?

The Ronix Complete Foil Hardware Kit with Case is ideal for:

• Ronix Shift Mast owners replacing missing hardware
• Wake foilers maintaining compatible Ronix foil assemblies
• Riders using Ronix Fluid 24" or 28" foil kits
• Customers wanting a complete spare mounting hardware set
• Marine shops and service departments working with Ronix hydrofoils

Keep your Ronix foil setup organized, maintained, and ready for assembly with the Ronix Complete Foil Hardware Kit with Case – Shift Mast.
