Ronix Complete Fluid Balance 1300 Foil Kit – 24" Mast (Board Not Included)

Stable Lift. Smooth Turns. Small to Mid-Size Wake Performance.

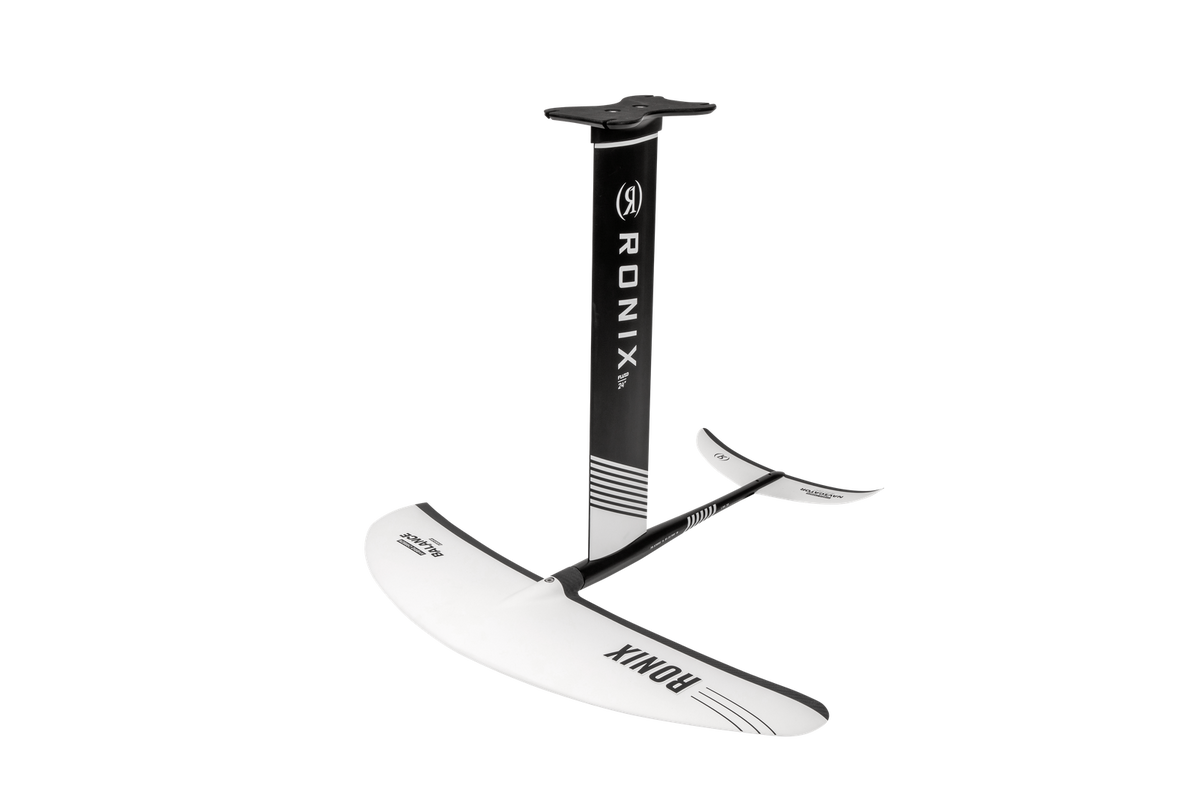

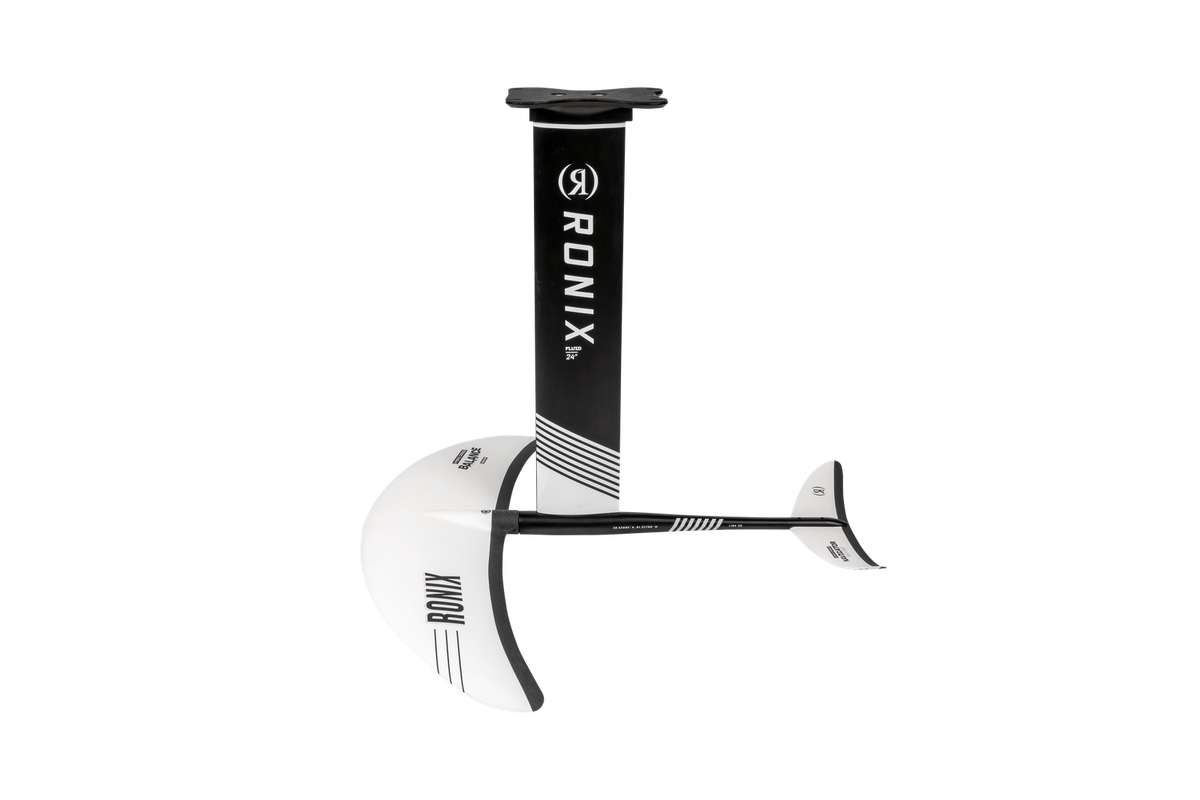

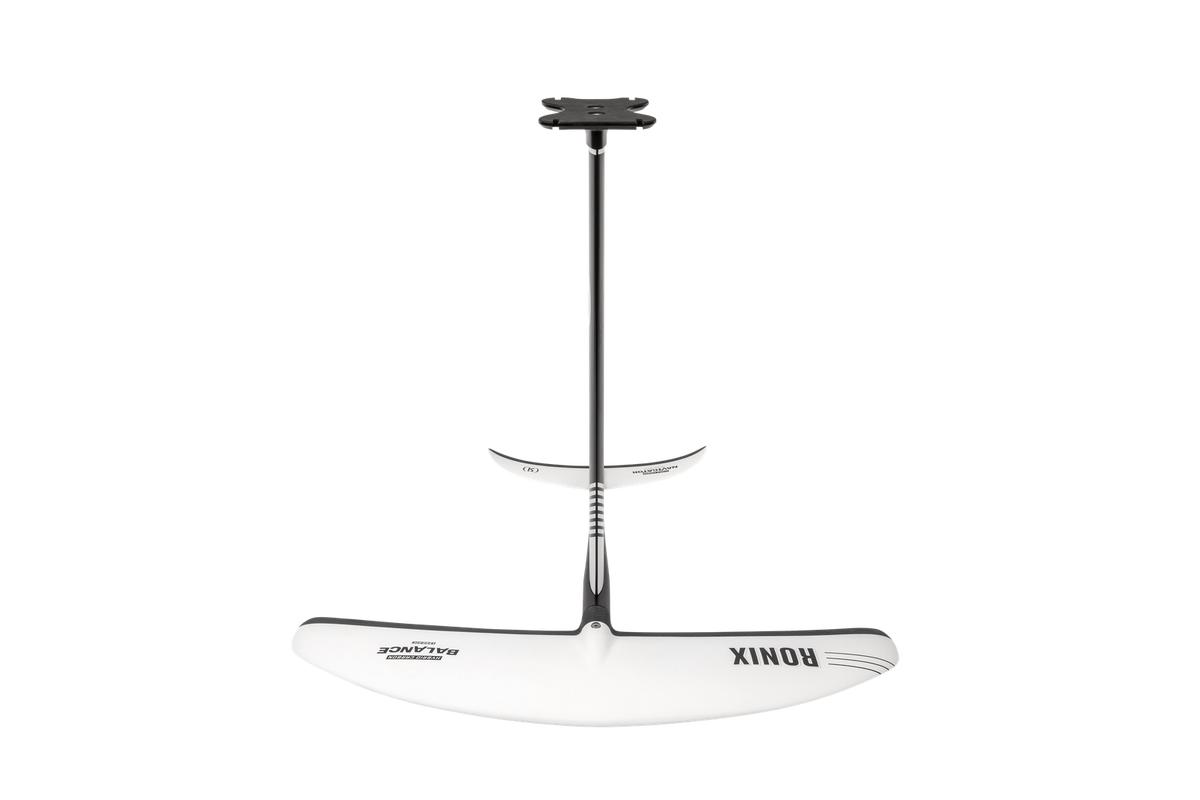

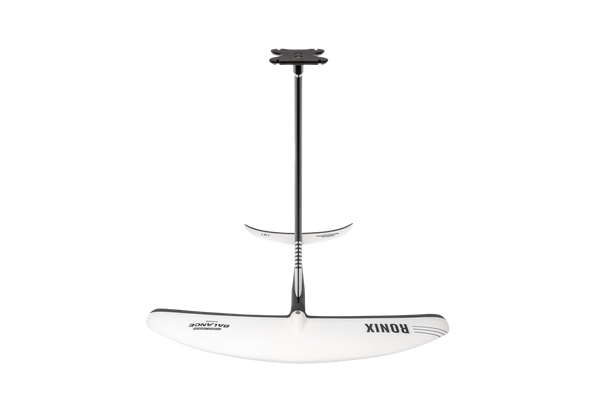

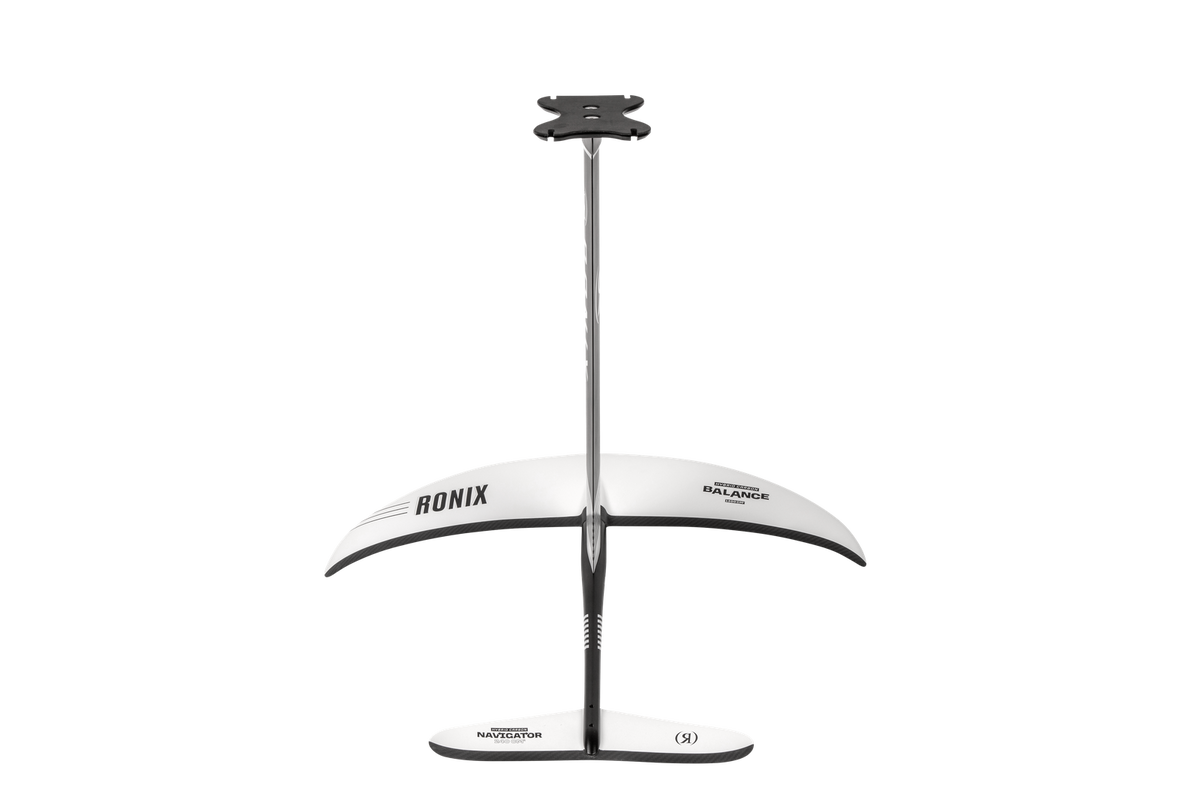

Progress your wake foiling with the Ronix Complete Fluid Balance 1300 Foil Kit, a stable, responsive hydrofoil system designed for riders developing their skills behind small to mid-size boat wakes.

Featuring a 24-inch Ronix Fluid Mast, 1300 cm² Balance carbon front wing, 240 cm² Balance rear stabilizer, and removable 26 cm² vertical stabilizer, this foil kit delivers predictable lift, controlled carving, and a smooth, confidence-building riding experience.

Designed as the bridge between beginner and advanced foil setups, the Fluid Balance 1300 provides a forgiving ride for newer foilers while offering enough performance for intermediate and experienced riders exploring longer glides, pumping, and wake transfers.

The 24" Fluid Mast is particularly well suited for smaller wakes produced by a variety of boats, including waterski boats, pontoons, and other watercraft that generate less wake depth than larger wake boats.

Its medium-tempo design encourages smooth, linked turns and a comfortable, upright riding position, helping riders maintain consistent control throughout their session.

The Balance 1300 front wing features an elliptical outline, additional width, and carbon fiber construction to deliver dependable lift and stable edge-to-edge transitions.

A white finish over the carbon front wing helps riders visually identify the foil's position relative to the waterline, making it easier to recognize when the wing approaches the surface.

For additional control, the kit includes Ronix's removable vertical stabilizer, designed to moderate abrupt takeoffs and provide more predictable directional stability during turns.

Whether you're learning to maintain a steady flight path or progressing toward riding the second wave, the Ronix Fluid Balance 1300 Foil Kit is built for smooth, consistent wake foiling.

IMPORTANT: This listing includes the foil kit only. A foilboard is NOT included.

Key Features & Benefits

• 24" Ronix Fluid Mast: Fixed-height mast designed for smooth, predictable turning and consistent control.
• Balance 1300 Carbon Front Wing: 1300 cm² front wing delivers stable lift and responsive carving.
• Balance 240 Rear Stabilizer: 240 cm² stabilizer supports grip, stability, and controlled turns.
• Removable Vertical Stabilizer: 26 cm² stabilizer helps smooth takeoffs and maintain directional control.
• Link 3D Fuselage: Precision-machined 39 cm alloy fuselage designed for rigidity and efficient connections.
• Small to Mid-Size Wake Performance: Designed for riding behind boats producing smaller, less powerful wakes.
• Intermediate-Friendly Design: Bridges the gap between beginner foil setups and advanced performance systems.
• Smooth, Linked Turns: Fluid Mast supports a consistent turning cadence and natural riding position.
• Carbon Fiber Wing Construction: Autoclave-molded Balance front wing designed for precision and performance.
• White Wing Visibility Detail: Helps riders judge front wing depth relative to the water surface.
• Progression-Focused Performance: Supports carving, pumping, and first- to second-wave exploration.
• Foil Kit Only: Foilboard sold separately.

Product Specifications

• Brand: Ronix
• Product Name: Complete Fluid Balance 1300 Foil Kit
• Product Type: Wake Foil Kit / Hydrofoil Assembly
• Recommended Ability: Intermediate
• Mast: Ronix Fluid Mast
• Mast Length: 24"
• Front Wing: Balance 1300
• Front Wing Area: 1300 cm²
• Front Wing Wingspan: 76 cm
• Front Wing Average Chord: 18.5 cm
• Front Wing Aspect Ratio: 4.4
• Front Wing Construction: Carbon Fiber
• Rear Stabilizer: Balance 240
• Rear Stabilizer Area: 240 cm²
• Rear Stabilizer Wingspan: 35 cm
• Rear Stabilizer Average Chord: 7.4 cm
• Rear Stabilizer Aspect Ratio: 5.1
• Fuselage: Link 3D
• Fuselage Length: 39 cm
• Vertical Stabilizer: Removable
• Vertical Stabilizer Area: 26 cm²
• Recommended Conditions: Small to Mid-Size Boat Wakes
• Foilboard Included: No

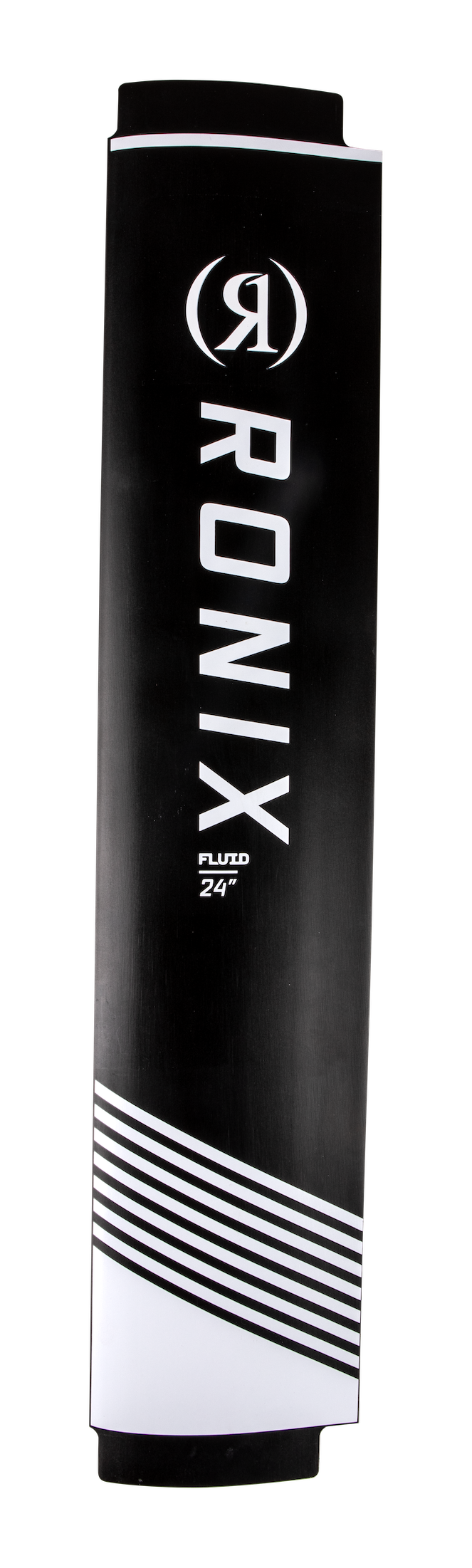

24" Fluid Mast – Smooth, Predictable Wake Foiling

The Ronix 24" Fluid Mast is designed to deliver a stable, medium-tempo riding feel with smooth, connected turns.

Rather than requiring abrupt directional adjustments, the Fluid Mast is engineered around consistent flow and predictable handling.

Its 24-inch height offers a balance between accessibility and progression, making it approachable for coordinated newer riders while still providing room to develop more advanced foiling skills.

The Fluid Mast is particularly well suited for smaller wakes, including those generated by waterski boats, pontoons, and other boats with less wake depth.

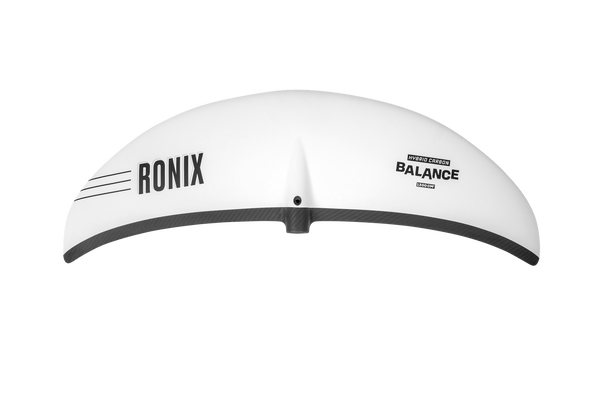

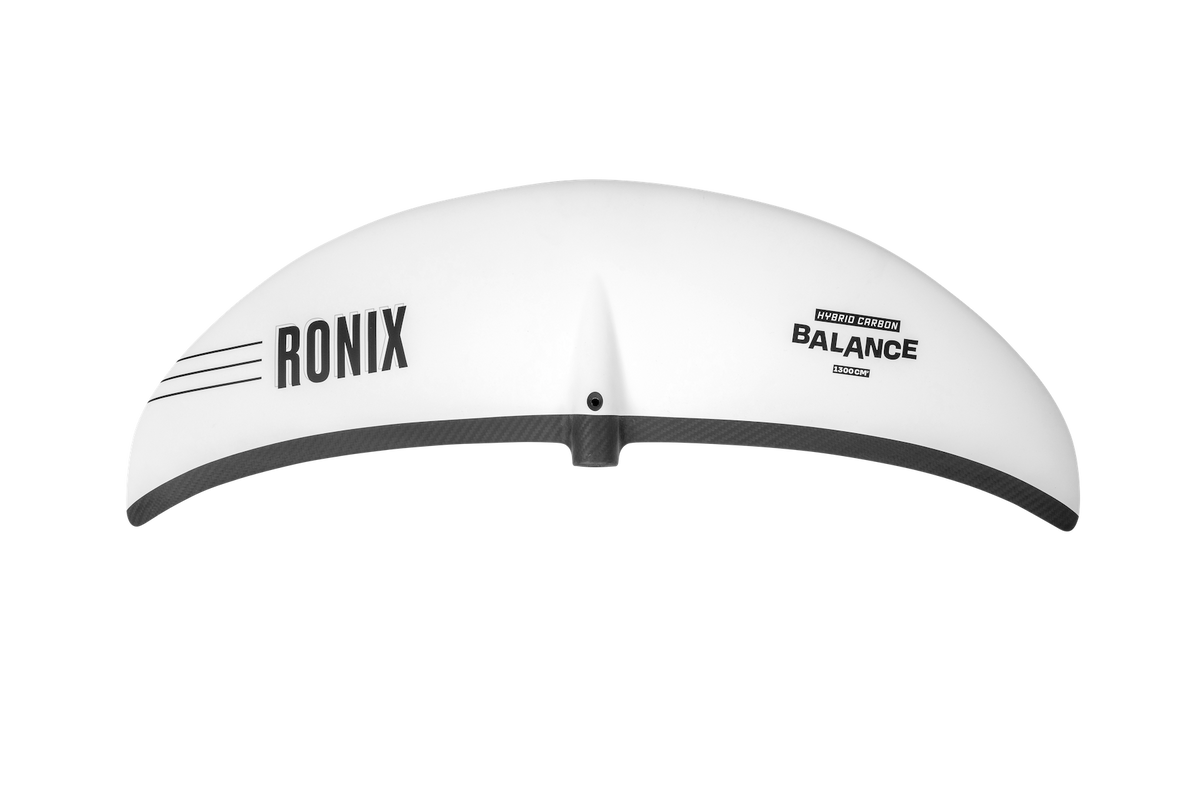

Balance 1300 Carbon Front Wing – Stable Lift and Responsive Carving

The 1300 cm² Balance Front Wing is designed to help riders maintain consistent lift and control.

Its elliptical outline and additional width support predictable turns, while the wing's shape helps riders transition smoothly from one edge to the other.

Constructed using high-grade carbon fibers and Ronix's autoclave molding process, the Balance 1300 is built for precise shaping and dependable performance.

The white-painted carbon wing also provides a visual reference for monitoring foil depth and recognizing when the front wing approaches the water's surface.

Balance 1300 Front Wing Specifications:

• Surface Area: 1300 cm²
• Wingspan: 76 cm
• Average Chord: 18.5 cm
• Aspect Ratio: 4.4
• Construction: Carbon Fiber

Balance 240 Rear Stabilizer – Added Lift and Grip

The 240 cm² Balance Rear Stabilizer is designed to provide additional stability, grip, and predictable handling.

Its wider base, added rake, slightly thicker profile, and turned-up winglets support a controlled ride while learning to pump and carve.

This stabilizer is suitable for progressing riders seeking a forgiving setup and experienced riders who prefer additional rear-wing stability.

Balance 240 Rear Stabilizer Specifications:

• Surface Area: 240 cm²
• Wingspan: 35 cm
• Average Chord: 7.4 cm
• Aspect Ratio: 5.1

Removable 26 cm² Vertical Stabilizer

The Ronix Vertical Stabilizer is designed to help riders maintain control during takeoffs and turns.

Mounted at the rear of the Link fuselage, this 26 cm² stabilizer provides additional directional stability and helps moderate abrupt takeoffs.

During turns, it creates a more locked-in feeling, helping riders maintain their intended flight path.

As your foiling technique improves, the stabilizer can be removed to experience a more responsive riding feel.

Link 3D Fuselage – Precision-Machined Strength

The 39 cm Ronix Link 3D Fuselage connects the mast, front wing, and rear stabilizer.

Machined from high-grade alloy using a three-axis CNC process, the Link 3D features a streamlined conical shape designed for precise component fit, rigidity, and efficient movement through the water.

Designed for Small to Mid-Size Boat Wakes

The Ronix Fluid Balance 1300 Foil Kit is especially well suited for wake foiling behind boats that generate smaller or less powerful wakes.

Its 24-inch mast provides a practical riding height for these conditions, while the Balance wing configuration helps maintain predictable lift and stability.

This makes the kit a strong option for riders looking to develop their skills behind waterski boats, pontoons, and other suitable watercraft.

What's Included?

• (1) Ronix Fluid Mast – 24"
• (1) Ronix Balance Front Wing – 1300 cm²
• (1) Ronix Balance Rear Stabilizer – 240 cm²
• (1) Ronix Link 3D Fuselage – 39 cm
• (1) Ronix Removable Vertical Stabilizer – 26 cm²
• FOILBOARD NOT INCLUDED.

A compatible foilboard is required and must be purchased separately. Confirm board mounting compatibility and included assembly hardware before installation.

Who Is the Ronix Fluid Balance 1300 Foil Kit For?

This foil kit is designed for:

• Intermediate wake foilers looking for stable, predictable performance
• Coordinated beginners ready to learn on a fixed 24" mast
• Riders foiling behind small to mid-size wakes
• Wake foilers progressing toward pumping and wave transfers
• Experienced riders who prefer a stable, smooth-turning setup
• Customers who already own a compatible foilboard

Enjoy smooth turns, consistent lift, and confident progression with the Ronix Complete Fluid Balance 1300 Foil Kit.
