Ronix Foil Board Track Screws & Inserts – M6 x 40mm Torx T30 (Set of 4)

Replacement Foil Mounting Hardware. Secure Mast Installation. Ronix Foilboard Compatibility.

Keep your foil setup ready for the water with the Ronix Foil Board Track Screws & Inserts, a replacement mounting hardware set designed for securing compatible foil mast assemblies to Ronix foilboards.

This set of four M6 x 40mm Torx T30 truss head screws and track inserts provides the mounting hardware used with Ronix foilboard track systems.

Whether you're replacing lost hardware, setting up a new foil mast, or keeping spare mounting components on hand, these genuine Ronix foil track screws and inserts are designed for proper fitment with Ronix foilboards.

The track inserts are designed to fit Ronix foilboard tracks. Compatibility with other foilboard brands may vary, particularly when those boards use shallower mounting tracks.

For easier installation, Ronix recommends loosely threading each screw into its track insert before sliding the connected pieces into position through the mast top plate.

Please Note: This replacement hardware is already included with complete Ronix foil packages. This listing is intended for customers who need additional or replacement screws and inserts.

Key Features & Benefits

• Ronix Foilboard Mounting Hardware: Replacement track screws and inserts designed for Ronix foilboards.
• Set of Four: Includes four screw-and-insert mounting sets.
• M6 x 40mm Screws: Specified metric screw size for the Ronix mounting system.
• Torx T30 Drive: T30 Torx screw head design.
• Truss Head Screws: Designed for the specified Ronix foil mounting application.
• Ronix Track Compatibility: Track inserts are designed to fit Ronix foilboard tracks.
• Replacement or Spare Hardware: Useful for replacing lost components or keeping backup mounting hardware.
• Mast-to-Board Installation: Used with the foil mast top plate and foilboard mounting tracks.
• Simple Installation Tip: Pre-thread screws into inserts before positioning them through the mast top plate.

Product Specifications

• Brand: Ronix
• Product Name: Foil Board Track Screws & Track Inserts
• Product Type: Foilboard Mounting Hardware
• Screw Size: M6 x 40mm
• Screw Head: Truss Head
• Drive Type: Torx T30
• Quantity: 4 Screws and 4 Track Inserts
• Primary Compatibility: Ronix Foilboards
• Other Brand Compatibility: Varies by Track Depth
• Application: Foil Mast Top Plate to Foilboard Track Mounting

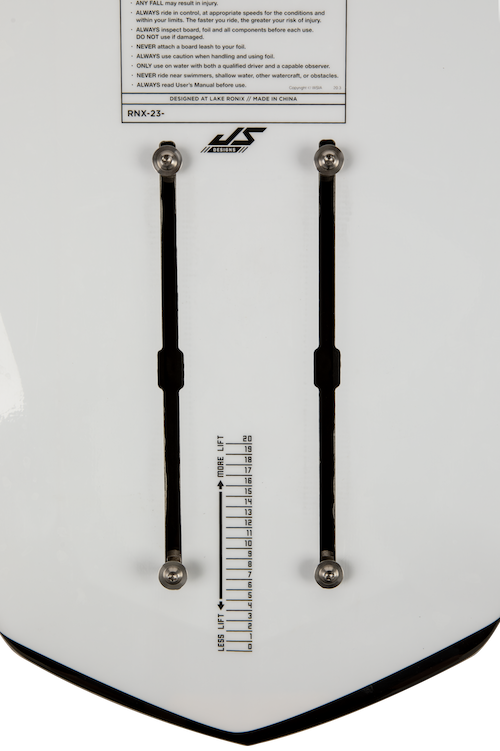

Designed for Ronix Foilboard Tracks

The Ronix Foil Board Track Inserts are designed to fit Ronix foilboard mounting tracks.

The inserts provide the threaded connection points for the M6 mounting screws, allowing the mast top plate to be secured to the foilboard.

If you're replacing hardware on an existing Ronix setup, these components provide the specified replacement mounting configuration.

M6 x 40mm Torx T30 Mounting Screws

The included screws feature an M6 metric thread, 40mm length, Torx T30 drive, and truss head design.

These specifications are important when replacing foil mounting hardware, as screw dimensions and track insert fitment must match the board and mast mounting system.

Always use hardware that meets the requirements of your specific foilboard and mast assembly.

Compatibility With Other Foilboard Brands

Although these track inserts are designed for Ronix foilboards, they may fit some other foilboard mounting systems.

However, some manufacturers use shallower foil tracks, which can prevent the Ronix inserts from fitting correctly.

If you're purchasing these inserts for a non-Ronix foilboard, verify the track depth and mounting hardware requirements before ordering.

Do not force inserts into an incompatible track.

Ronix Installation Tip

For easier installation, Ronix recommends the following approach:

1. Loosely thread each M6 screw into its corresponding track insert.
2. Keep the screw and insert connected without fully tightening them.
3. Position the connected hardware through the mast top plate and slide the inserts into the foilboard tracks as appropriate for the mounting system.
4. Align the mast top plate and hardware before tightening.
5. Secure the assembly according to the applicable Ronix installation instructions and torque specifications.

Always inspect the hardware and confirm that the mast is securely mounted before riding.

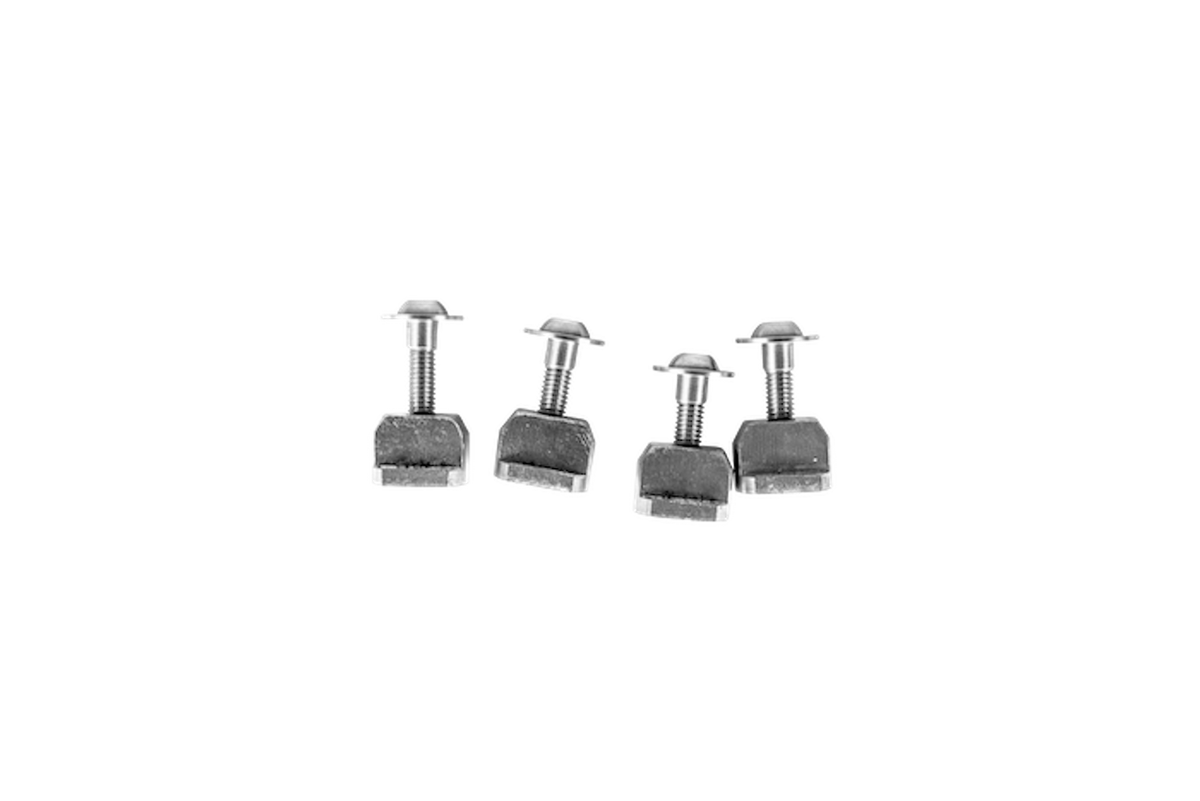

What's Included?

• (4) M6 x 40mm Torx T30 Truss Head Screws
• (4) Ronix Foil Board Track Inserts

Quantity: Four screw-and-insert sets.

Who Is This Product For?

The Ronix Foil Board Track Screws & Inserts are ideal for:

• Ronix foilboard owners replacing lost mounting hardware
• Wake foilers needing spare mast mounting screws and inserts
• Riders assembling or servicing compatible Ronix foil setups
• Marine shops and service departments maintaining Ronix foil equipment

Keep your foil mast mounting hardware complete with genuine Ronix Foil Board Track Screws & Inserts.
