Switch Contura DPDT Illuminated Malibu On-Off-On

Product Description:

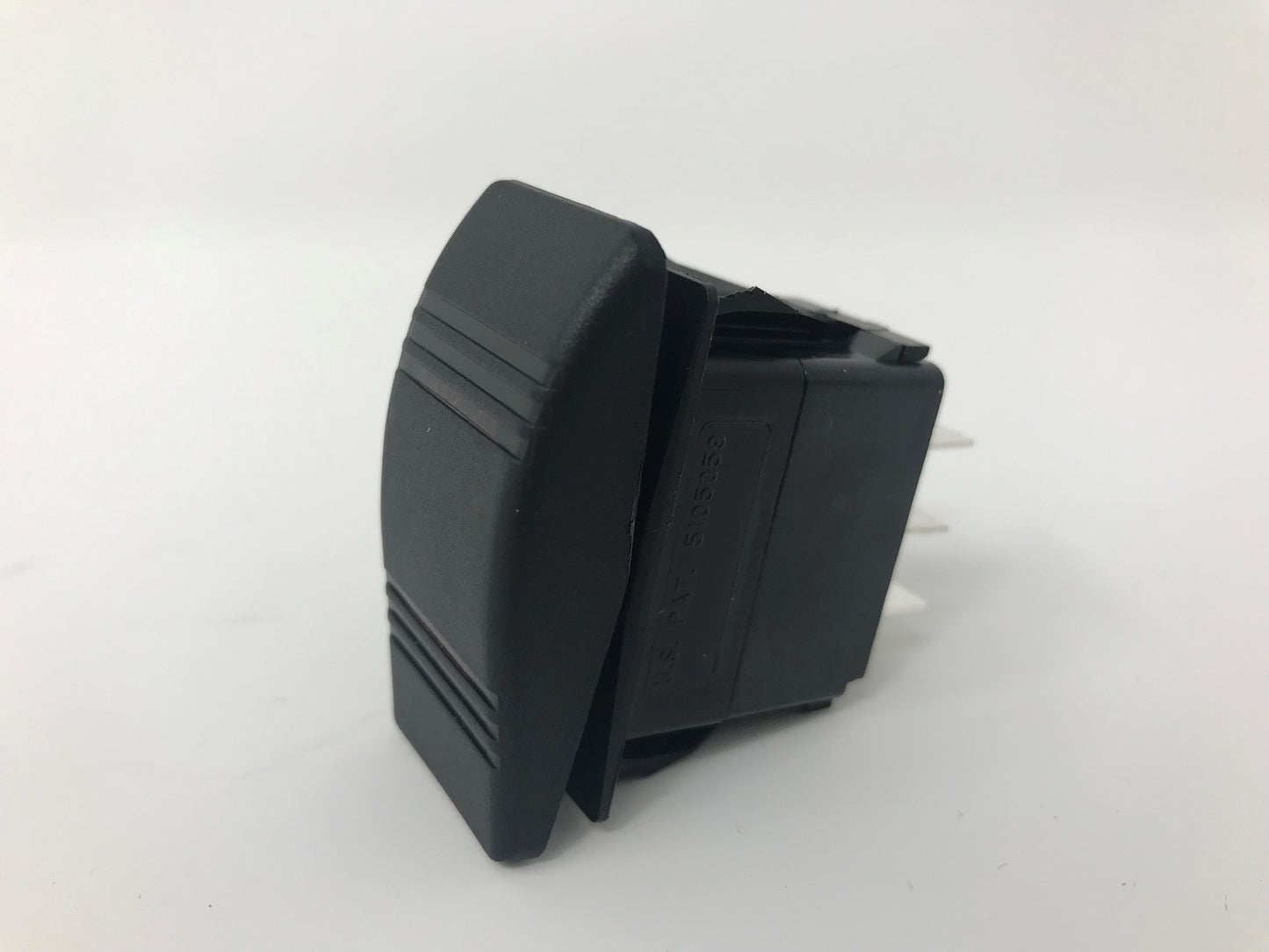

Illuminated Contura® Rocker Switches functions as an On-Off-On (3 Position) OEM switch installed on Malibu Boats, Axis Wake, Supra Boats, Moomba Boats, Mastercraft, Nautique, and many other brands. These Contura rocker switches are vibration, shock, thermoshock, moisture, and salt spray resistant. Temperature range from -40°C to +85°C. UL1500 / ISO8846 ignition protection for marine products. Switch displays a red light when in the on position. Constructed of injection molded nylon and stamped brass with silver tin oxide contacts. 20A @ 12VDC. IP66 rating (for front panel components only). Includes one Generic black switch cover (shown in picture). Malibu Boats switch covers are available but sold separately.

Product Specs:

• SeaDog Part# 420218-1
• Carling Technologies VJD1
• 3 Position On-Off-On
• DPDT - Double Pole Double Throw
• Red LED Light Illumination
• Rated for 20 Amps at 12 Volt DC
• Measures 13/16" Wide
• Measures 1-7/16" Tall

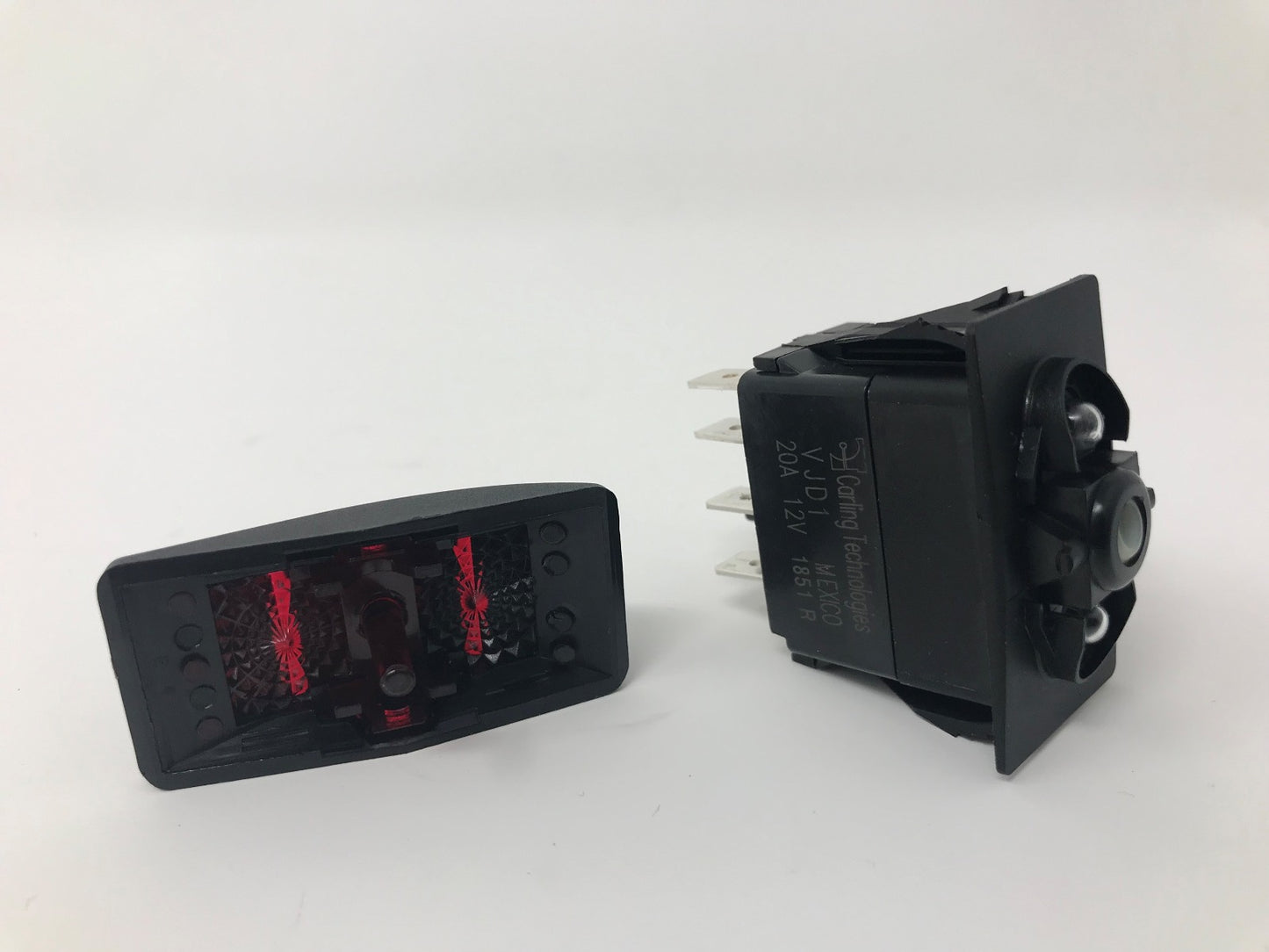

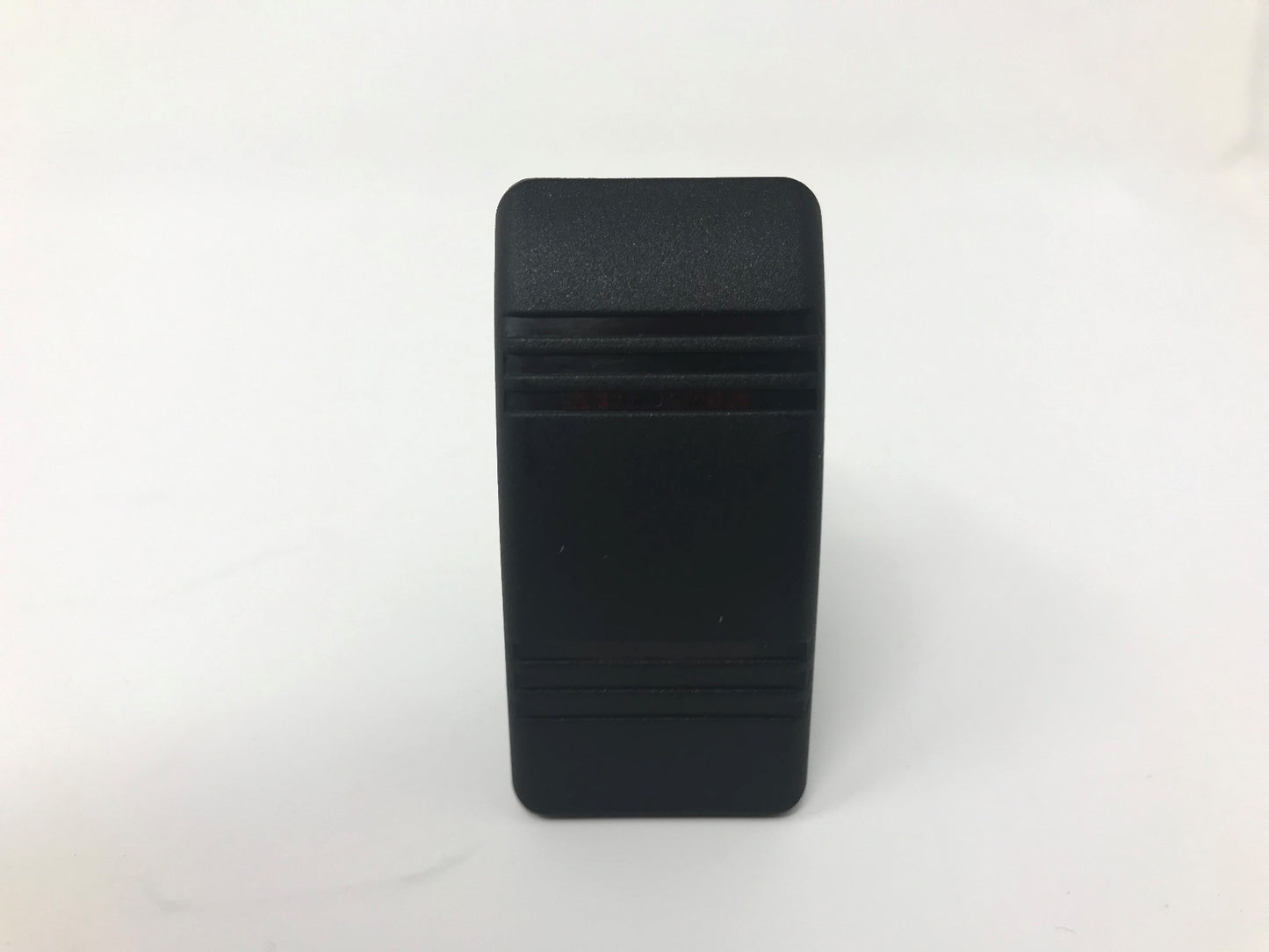

• Includes Generic Black Faced Switch Cover (shown in photo)
• Factory Malibu Boats Switch Covers Sold Separately

Media Library:

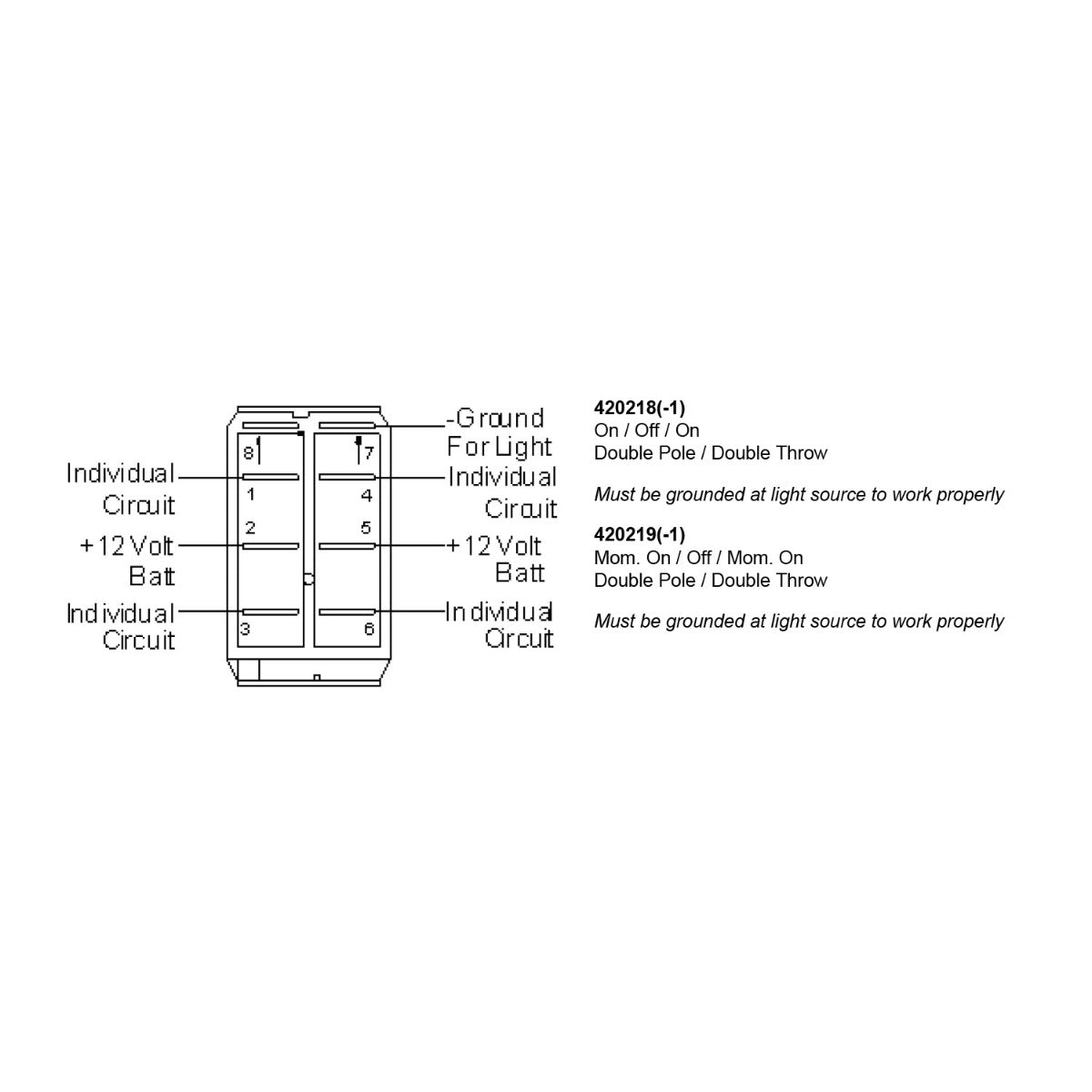

• Switch Diagram (JPG)
