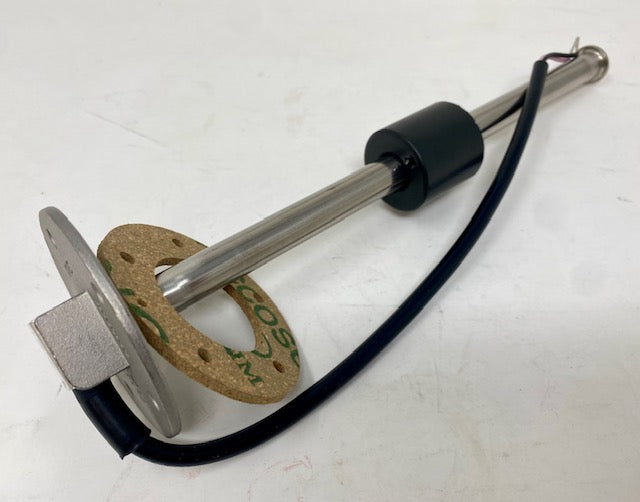

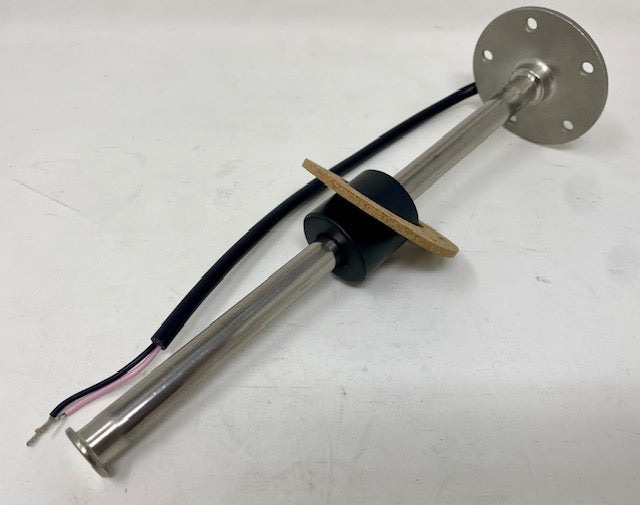

WEMA Ballast Sending unit 6"

KUS USA (Formerly WEMA) Fuel Sending Unit & Gasket

For use with water, gasoline, hydraulic oil, or diesel

Compatible with any Kus dash gauge
Sensor electrical resistance range is 240-33 Ohms (Standard American output)

Integral mounted flange with standard American SAE 5-hole pattern
Includes gasket, but no mounting hardware (mounting bolts come with the required Under Ring Adapter)

The manufacturer states there must be a 1” clearance between the float retaining collar and the tank bottom.
